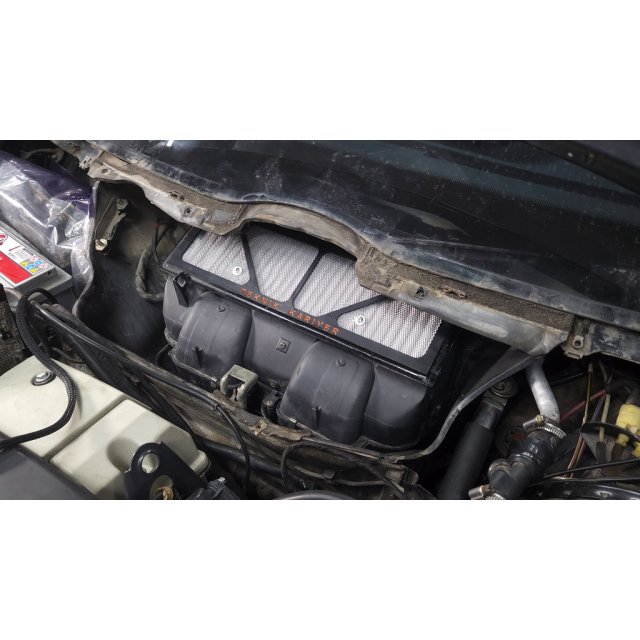

Designer source image. It may show an installed part, prototype or render; it is not an Orphaned Parts production sample.
Cabin Filter Retrofit Frame
Cabin Filter Retrofit Frame design listed for 1984–1997 Mercedes-Benz W124. Listed category: interior. Verify dimensions, fitment and material suitability before printing.
- Make
- Mercedes-Benz
- Model
- W124
- Year range
- 1984–1997
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description
The frame was designed by measuring the factory fresh air intake housing and modeled in CAD. It can be produced in two different ways:
Laser cut from plexiglass / acrylic sheets
3D printed directly from the included STL file
The filter media can be replaced easily by opening the frame and installing a new sheet material. You may use:
Range hood / aspirator filter material
HEPA sheet filter
Activated carbon filter sheet
Universal cabin filter media
Features:
Direct-fit style retrofit design
Reusable frame, replaceable filter media
STL file included for 3D printing
Suitable for DIY enthusiasts
Improves cabin air cleanliness
Recommended Materials:
PETG / ABS for heat resistance if 3D printing. PLA can deform in engine bay heat.
Vehicle Compatibility:
Mercedes-Benz W124 chassis (fitment may vary depending on HVAC box type and production year)
