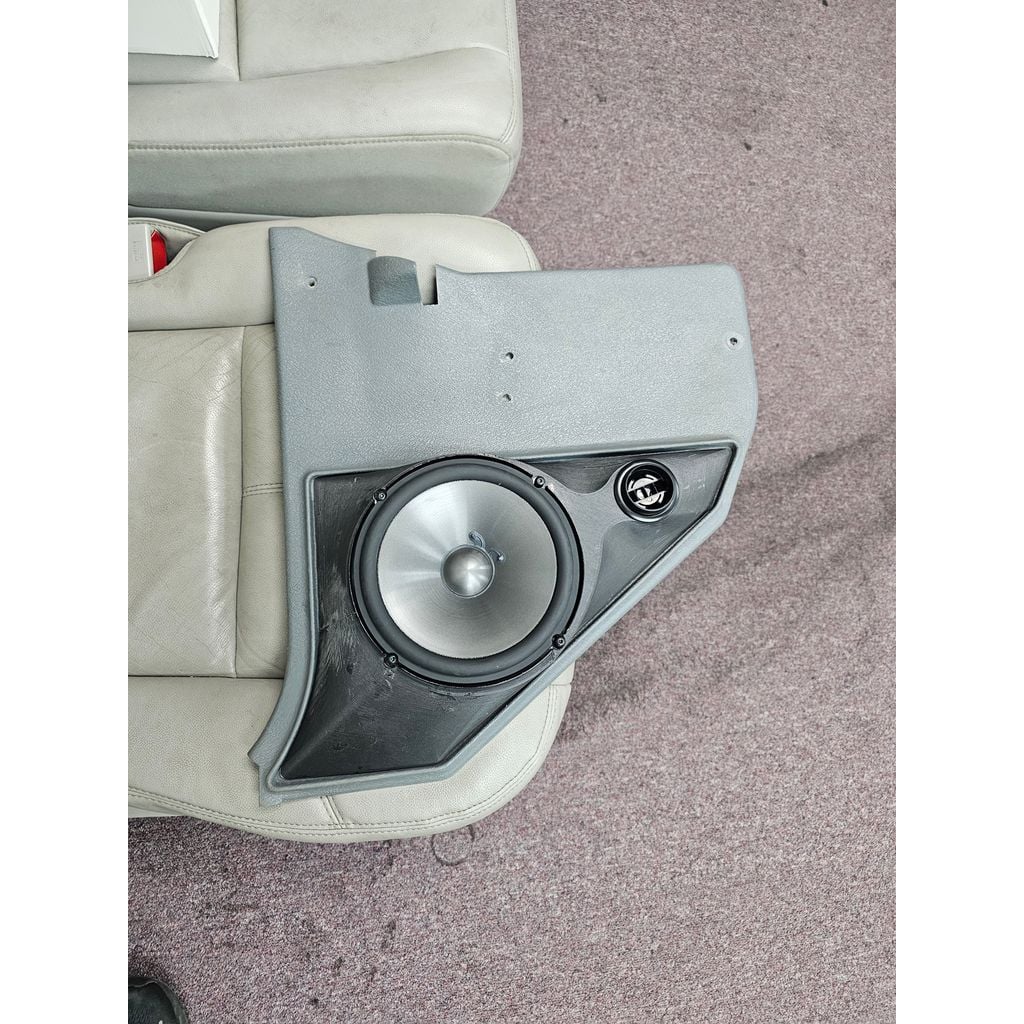

Designer source image. It may show an installed part, prototype or render; it is not an Orphaned Parts production sample.
Kick Panel Speaker Mount
Kick Panel Speaker Mount design listed for 1981–1987 Chevrolet C10. Listed category: interior. Verify dimensions, fitment and material suitability before printing.
- Make
- Chevrolet
- Model
- C10
- Year range
- 1981–1987
- Submodel
- K5 Suburban
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description
I'll be happy to upload the scan if someone requests it. here are the complete kick panels, as well as sliced into 3 smaller sections to print on my anet printer.
I purposefully left out the mounting holes as I was exploring different mounting ideas. For now, I just heated up a metal tool of sorts to poke my holes through the Carbon Fiber PLA I'm using.
For the section of 3 that I printed, I just used some two part epoxy to glue the panels together to make the complete kick panel and it turned out great and doesn't seem like there's going to be any issues there.
I did only scan the left side, then just mirrored for the right. I assume the right will work just fine, but I've only finished the left side. Right side will be done in a few days.
Source description, under the recorded CC-BY-4.0 license.
Print instructions
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
Settings from the source; not independently tested by Orphaned Parts.
Print price estimates
Planning prices for one print, not a final quote. Defaults use a size allowance inferred from the part name, not a measured or sliced model. Filament suitability must be confirmed.
| Filament | USD / print | Application notes |
|---|---|---|
| PLA | $57.50 | Indoor prototypes; not a default material for hot vehicle interiors. |
| PETG | $59.00 | General-purpose candidate; heat and creep need review. |
| ASA | $69.50 | Candidate for UV exposure; verify temperature and geometry. |
| ABS | $66.00 | Enclosed printing; review application and dimensions. |
| TPU | $85.00 | Flexible designs only; not a substitute for rigid materials. |
| Nylon | $85.00 | Moisture, tolerances and application require review. |
| PA-CF | $99.00 | Filled nylon; abrasive filament and fit need review. |
Pricing assumptions and exclusions
USD: ($6 setup + $3 finishing + filament weight × assumed spool cost × 1.25 waste allowance + print hours × $2.50 × material time factor) ÷ 0.65. Rounded up to the next $0.50.
Assumed spool costs per kg: PLA $25, PETG $30, ASA $40, ABS $30, TPU $45, Nylon $65, PA-CF $95. Time factors: PLA/PETG 1.0, ASA/ABS 1.2, TPU 1.6, Nylon 1.4, PA-CF 1.5. These are proposed shop rates, not measured production costs.
Design work, test fitting, hardware, shipping and tax are additional where needed. Multi-file sets may need several prints. Use actual sliced weight and time when available. Final pricing is confirmed in writing.
