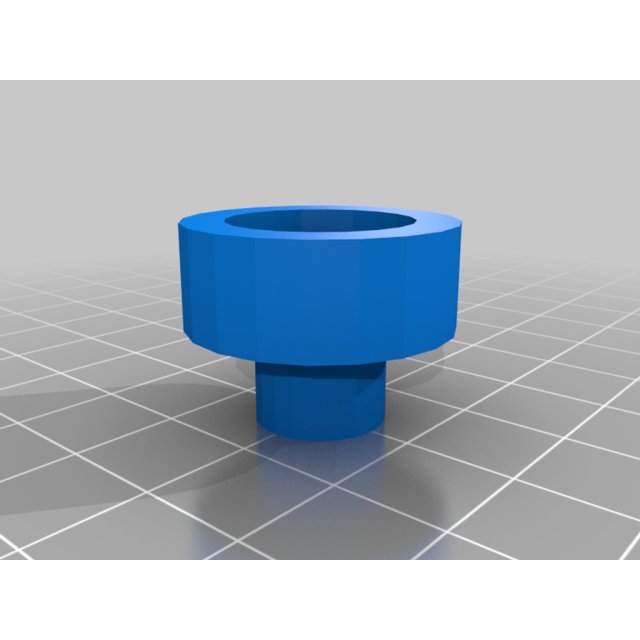

Swingaway Mirror Pivot Socket
Swingaway Mirror Pivot Socket design listed for 1983–1992 Ford Ranger. Listed category: exterior. Verify dimensions, fitment and material suitability before printing.
- Make
- Ford
- Model
- Ranger
- Year range
- 1983–1992
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description
This part is likely shared, or similar to the part used in mirrors on other Ford vehicles with similar design mirrors, such as some F-series, E-series, Aerostar, and Bronco II (which itself uses the exact same mirrors as the Ranger).
Note that there are other potential failures so you must take the mirror apart to identify the problem before assuming this will solve it.
Source description, under the recorded CC-BY-SA-4.0 license.
