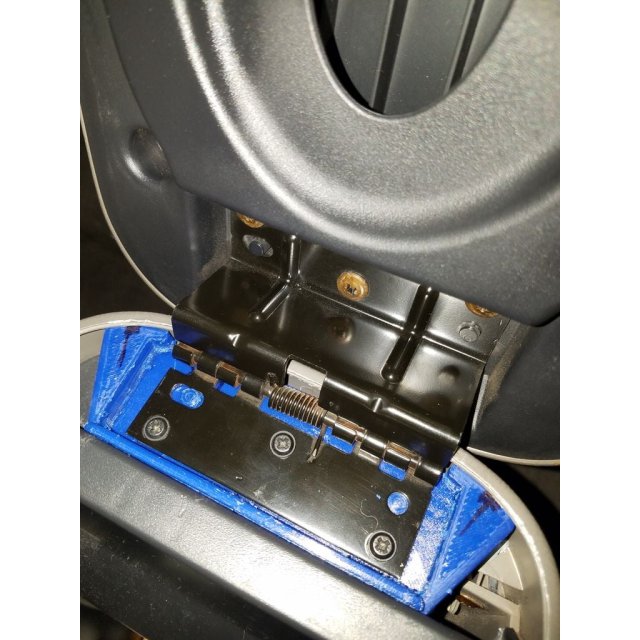

Designer source image. It may show an installed part, prototype or render; it is not an Orphaned Parts production sample.
Arm Rest Hinge Plate
Arm Rest Hinge Plate design listed for 2000 Chevrolet Impala. Listed category: interior. Verify dimensions, fitment and material suitability before printing.
- Make
- Chevrolet
- Model
- Impala
- Year range
- 2000
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description
Designed with threaded M5 bolt holes just in case I needed them but It was such a tight fit that no additional screws were needed to keep it in place. It's designed to re-use the screw retains from the original plate, just pop them out of it and into this.
Do not print in PLA. I printed with Hatchbox PETG and it's survived a summer in the car in Phoenix Arizona (so external temps at or near 120 F) so that should cover most earth temps in the higher end.
I've added a DXF of the base plate I extruded from if someone cares to do their own or make one for the case where the old plate is completely removed.
Source description, under the recorded CC-BY-4.0 license.
Print instructions
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
Settings from the source; not independently tested by Orphaned Parts.
