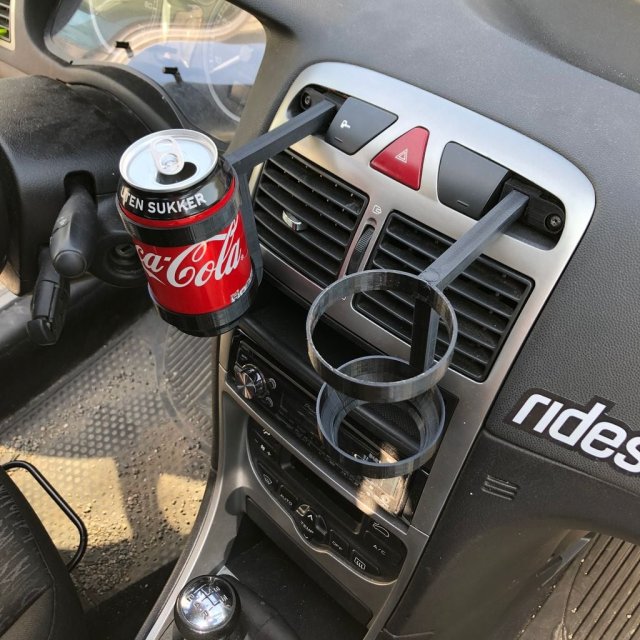

Designer source image. It may show an installed part, prototype or render; it is not an Orphaned Parts production sample.
Cup and Bottle Holder
Cup and Bottle Holder design listed for 2001–2008 Peugeot 307. Listed category: interior. Verify dimensions, fitment and material suitability before printing.
- Make
- Peugeot
- Model
- 307
- Year range
- 2001–2008
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description
I have made some small improvements to the original design:
-Better clearence and thicker wall on top-ring, more rounded edges.
-Support for a third can size in between the "small" and "standard" size cans.
Unfortunately I don't have new pictures from the final result as I have sold the car with the cupholders within ;-), -but you can see the changes in the STL-preview above. The old STL-files is replaced with the new V2.
------------
Bottle and can holder specific for Peugeot 307 dash. If you have "blank buttons" in your dash you can remove the cover and mount this bottleholder directly into the slot. Use the original screw.
It will securely hold soda/water bottles, small diameter cans, and standard size cans (EU sizes, the holder is 66mm diameter)
Printing:
Print Peugeot307_Cup_base upside down on the bed
Print Peugeot307_Cup_extension standing up on the bed
There is one socket for left side, and one for right side mounting. Use a basic wood screw, 30mm long to assemble the parts. Hide the screw head by covering it with the little cap piece provided.
I printed it with 0.25 resolution, 20% infill, and no supports.
If you make this, upload a photo of the result, Enjoy! =)
Source description, under the recorded CC-BY-4.0 license.
Print instructions
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
Settings from the source; not independently tested by Orphaned Parts.
Print price estimates
Planning prices for one print, not a final quote. Defaults use a size allowance inferred from the part name, not a measured or sliced model. Filament suitability must be confirmed.
| Filament | USD / print | Application notes |
|---|---|---|
| PLA | $42.50 | Indoor prototypes; not a default material for hot vehicle interiors. |
| PETG | $43.50 | General-purpose candidate; heat and creep need review. |
| ASA | $50.00 | Candidate for UV exposure; verify temperature and geometry. |
| ABS | $48.00 | Enclosed printing; review application and dimensions. |
| TPU | $60.50 | Flexible designs only; not a substitute for rigid materials. |
| Nylon | $60.00 | Moisture, tolerances and application require review. |
| PA-CF | $69.00 | Filled nylon; abrasive filament and fit need review. |
Pricing assumptions and exclusions
USD: ($6 setup + $3 finishing + filament weight × assumed spool cost × 1.25 waste allowance + print hours × $2.50 × material time factor) ÷ 0.65. Rounded up to the next $0.50.
Assumed spool costs per kg: PLA $25, PETG $30, ASA $40, ABS $30, TPU $45, Nylon $65, PA-CF $95. Time factors: PLA/PETG 1.0, ASA/ABS 1.2, TPU 1.6, Nylon 1.4, PA-CF 1.5. These are proposed shop rates, not measured production costs.
Design work, test fitting, hardware, shipping and tax are additional where needed. Multi-file sets may need several prints. Use actual sliced weight and time when available. Final pricing is confirmed in writing.
