HVAC Blend Door Main Gear
HVAC Blend Door Main Gear design listed for 1998 Jeep Cherokee. Listed category: interior. Verify dimensions, fitment and material suitability before printing.
- Make
- Jeep
- Model
- Cherokee
- Year range
- 1998
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description

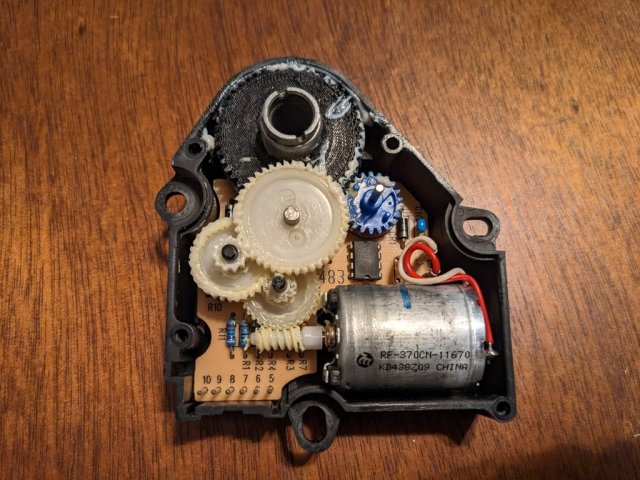

if you are unsure, disassemble your unit and compare with attached photo and gear. It may work for your use case as well.
When servicing take care to note the orientation of the metal shaft in addition to the blue gear to make sure alignment does not get lost. Install with flat side of gear facing up. Be sure to lubricate with a plastic safe lubricant and reassemble!
Print with the flat side to the bed of the printer with maximum infill. Choose suitable filament that can withstand torque and high heat for reliable operation.
