Design by MBCook · Original design · CC-BY-4.0 · Source details. Indexed via 3DCarParts. Source text and images remain credited to their creators; no modified design files supplied.

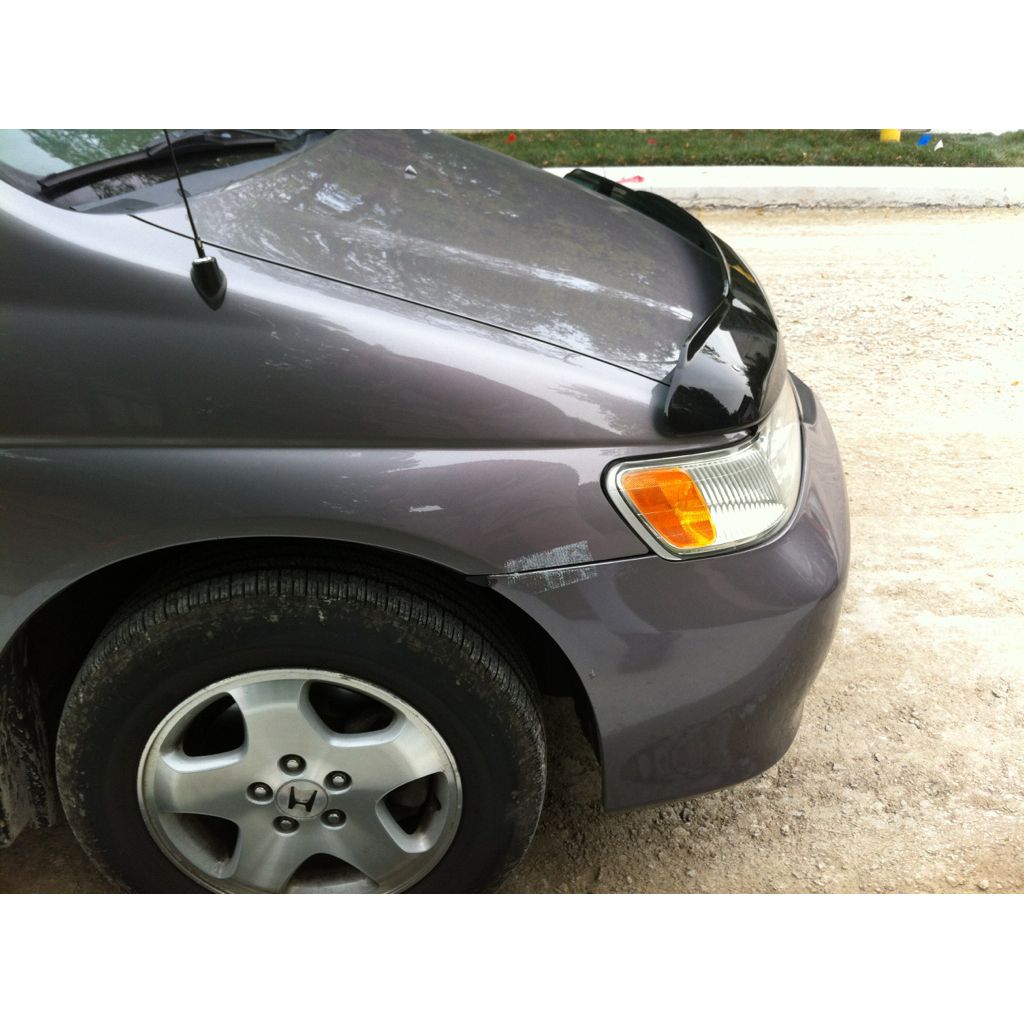

Designer source image. It may show an installed part, prototype or render; it is not an Orphaned Parts production sample.
Bumper Fix
Bumper Fix design listed for 1995–2026 Honda Odyssey. Listed category: exterior. Verify dimensions, fitment and material suitability before printing.
- Make
- Honda
- Model
- Odyssey
- Year range
- 1995–2026
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description
As it turned out, the end of the bumper has broken off right where the bumper was attached to the frame. I probably caught the bumper on something backing up, but the piece was totally gone.
The duct-tape solution was ugly, so I designed a simple piece in OpenSCAD to glue to the end of the bumper. It took a couple of tries to get the measurements right. It has a large flat surface (to for a strong glue bond), a hole in the middle (to replace the screw hole that broke), and a little side piece to match the existing lines.
Source description, under the recorded CC-BY-4.0 license.
Print instructions
To design it, I took the measurements and designed a flat rectangle in OpenSCAD. I punched a hole in it for the screw, added the side wall for looks, and then cut an angle so the piece would fit in the limited space I had to work with.
Print it out, glue it on, let it set, screw the bumper back in place.
Settings from the source; not independently tested by Orphaned Parts.
Print price estimates
Planning prices for one print, not a final quote. Defaults use a size allowance inferred from the part name, not a measured or sliced model. Filament suitability must be confirmed.
| Filament | USD / print | Application notes |
|---|---|---|
| PLA | $28.50 | Indoor prototypes; not a default material for hot vehicle interiors. |
| PETG | $29.00 | General-purpose candidate; heat and creep need review. |
| ASA | $32.50 | Candidate for UV exposure; verify temperature and geometry. |
| ABS | $31.50 | Enclosed printing; review application and dimensions. |
| TPU | $37.50 | Flexible designs only; not a substitute for rigid materials. |
| Nylon | $37.50 | Moisture, tolerances and application require review. |
| PA-CF | $42.50 | Filled nylon; abrasive filament and fit need review. |
Pricing assumptions and exclusions
USD: ($6 setup + $3 finishing + filament weight × assumed spool cost × 1.25 waste allowance + print hours × $2.50 × material time factor) ÷ 0.65. Rounded up to the next $0.50.
Assumed spool costs per kg: PLA $25, PETG $30, ASA $40, ABS $30, TPU $45, Nylon $65, PA-CF $95. Time factors: PLA/PETG 1.0, ASA/ABS 1.2, TPU 1.6, Nylon 1.4, PA-CF 1.5. These are proposed shop rates, not measured production costs.
Design work, test fitting, hardware, shipping and tax are additional where needed. Multi-file sets may need several prints. Use actual sliced weight and time when available. Final pricing is confirmed in writing.
