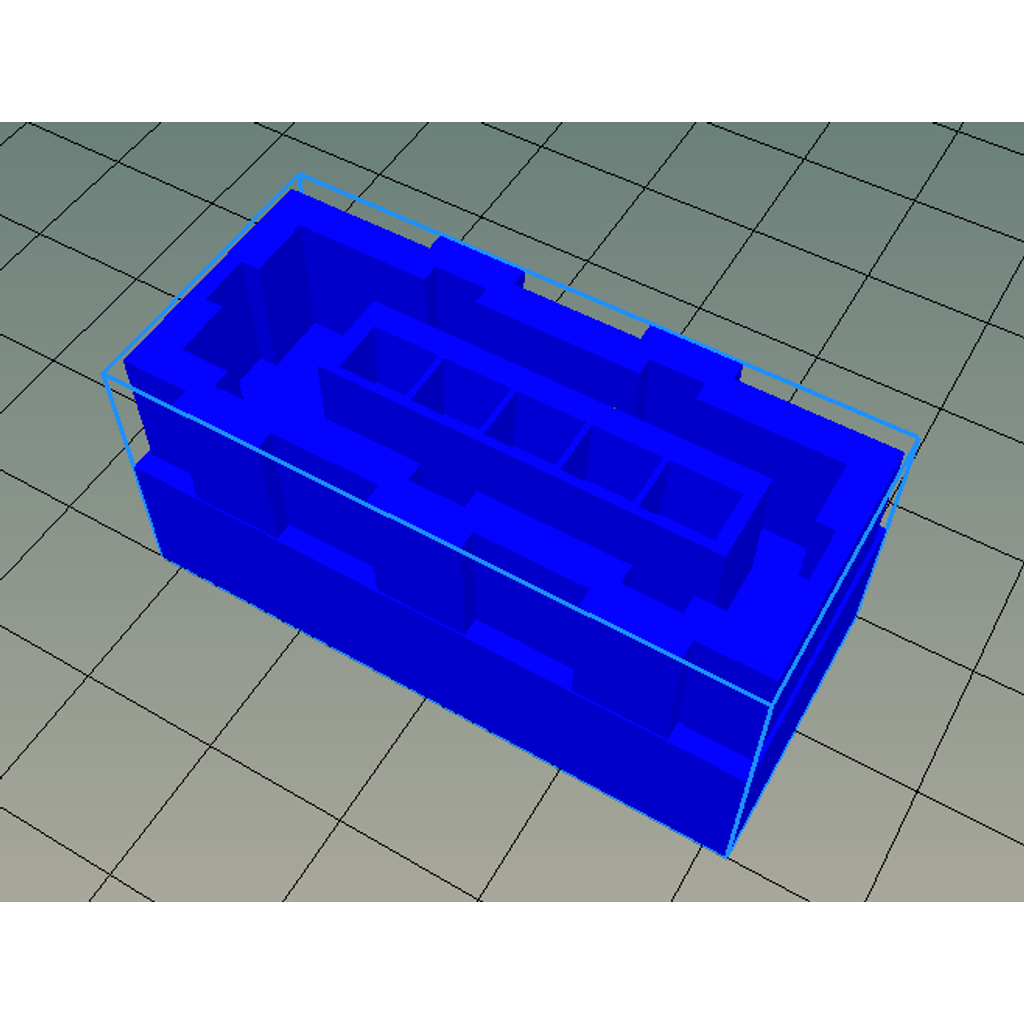

Designer source image. It may show an installed part, prototype or render; it is not an Orphaned Parts production sample.
MAF Plug ( )
MAF Plug ( ) design listed for 1989–2000 Nissan 300ZX. Listed category: electrical. Verify dimensions, fitment and material suitability before printing.
- Make
- Nissan
- Model
- 300ZX
- Year range
- 1989–2000
- Submodel
- Twin-Turbo
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description
This plug is designed to be used with cheapest electrical terminal connectors (geometry size around 3.3x2.2mm width x hight). Plug have a fixation for terminals inside it. But this plug don't have an outside fixation clip, because it sits really tight, when it is attached to the MAF sensor's body. If you want some extra fixation - you can change the hight of the outer plug's perimeter and then add a сut on it for the metal or plastic custom clip.
Sorry for my English. This is not my native language. :)
Source description, under the recorded CC-BY-SA-4.0 license.
Print instructions
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
Settings from the source; not independently tested by Orphaned Parts.
