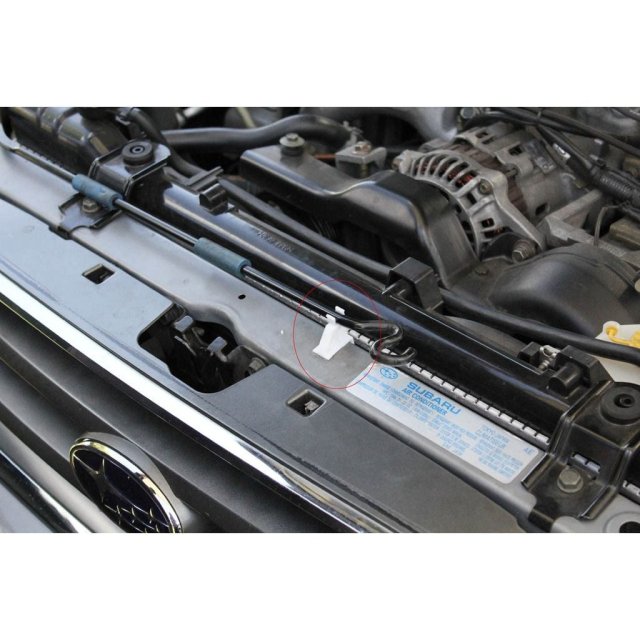

Designer source image. It may show an installed part, prototype or render; it is not an Orphaned Parts production sample.
Bonnet Stay Clip
Bonnet Stay Clip design listed for 2004 Subaru Forester. Listed category: mounts-brackets. Verify dimensions, fitment and material suitability before printing.
- Make
- Subaru
- Model
- Forester
- Year range
- 2004
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description
This one works ok, if it breaks again I will be narrowing the mouth of the holder, lowering it and putting in some supports to make it's grip a little stronger.
Width of the "C" that holds the whole clip in place could also be a little wider to prevent it sliding left to right. Don't think it needs reshaping to get a better grip on the car.
May fit other years and models.
Hopefully I've designed the scad file so that it can be tweaked without too much stress.
-edit 2014 09 25-
Minor changes to give the clip and insert a little more strength.
Source description, under the recorded CC-BY-SA-4.0 license.
Print instructions
Settings from the source; not independently tested by Orphaned Parts.
Print price estimates
Planning prices for one print, not a final quote. Defaults use a size allowance inferred from the part name, not a measured or sliced model. Filament suitability must be confirmed.
| Filament | USD / print | Application notes |
|---|---|---|
| PLA | $17.50 | Indoor prototypes; not a default material for hot vehicle interiors. |
| PETG | $18.00 | General-purpose candidate; heat and creep need review. |
| ASA | $18.50 | Candidate for UV exposure; verify temperature and geometry. |
| ABS | $18.50 | Enclosed printing; review application and dimensions. |
| TPU | $20.00 | Flexible designs only; not a substitute for rigid materials. |
| Nylon | $20.00 | Moisture, tolerances and application require review. |
| PA-CF | $21.00 | Filled nylon; abrasive filament and fit need review. |
Pricing assumptions and exclusions
USD: ($6 setup + $3 finishing + filament weight × assumed spool cost × 1.25 waste allowance + print hours × $2.50 × material time factor) ÷ 0.65. Rounded up to the next $0.50.
Assumed spool costs per kg: PLA $25, PETG $30, ASA $40, ABS $30, TPU $45, Nylon $65, PA-CF $95. Time factors: PLA/PETG 1.0, ASA/ABS 1.2, TPU 1.6, Nylon 1.4, PA-CF 1.5. These are proposed shop rates, not measured production costs.
Design work, test fitting, hardware, shipping and tax are additional where needed. Multi-file sets may need several prints. Use actual sliced weight and time when available. Final pricing is confirmed in writing.
