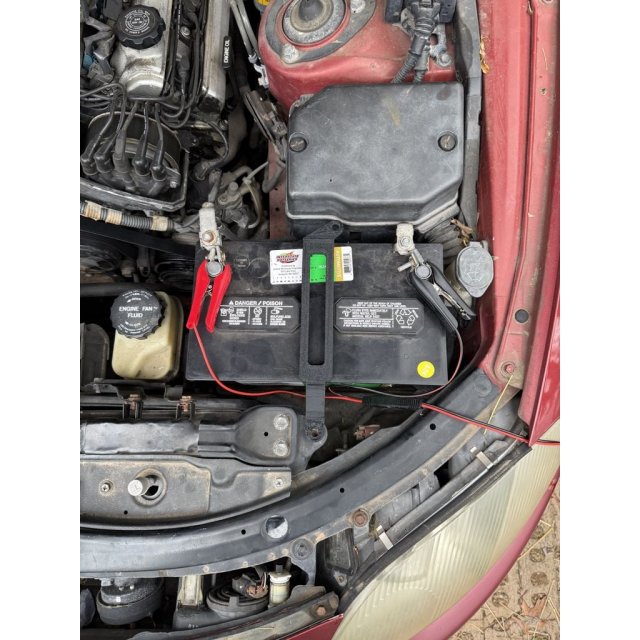

Designer source image. It may show an installed part, prototype or render; it is not an Orphaned Parts production sample.
Battery Hold Down
Battery Hold Down design listed for 1994 Lexus SC400. Listed category: mounts-brackets. Verify dimensions, fitment and material suitability before printing.
- Make
- Lexus
- Model
- SC400
- Year range
- 1994
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description
This hold-down is designed to work with group 27F size batteries (although YMMV since some batteries are larger than others. Spacers can be used to make it fit larger batteries if needed). I also used the 8" j-bolts shown in the photo gallery for the battery tray side, although the hook part needed some bending to go into the hole on the SC's battery tray.
I printed this with supports enabled on my Ender 3 V3 SE with a failing mainboard, so my print came out pretty poorly in PETG. I recommend printing it on its side so that the layer lines are less likely to separate when tightening the bolts. As a sidenote as well, I would also recommend using ABS to print this, as engine bays can get very hot, I will run this for a few months on PETG and update to see if it's held up at all.
Source description, under the recorded CC-BY-SA-4.0 license.
Print instructions
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
Settings from the source; not independently tested by Orphaned Parts.
Print price estimates
Planning prices for one print, not a final quote. Defaults use a size allowance inferred from the part name, not a measured or sliced model. Filament suitability must be confirmed.
| Filament | USD / print | Application notes |
|---|---|---|
| PLA | $28.50 | Indoor prototypes; not a default material for hot vehicle interiors. |
| PETG | $29.00 | General-purpose candidate; heat and creep need review. |
| ASA | $32.50 | Candidate for UV exposure; verify temperature and geometry. |
| ABS | $31.50 | Enclosed printing; review application and dimensions. |
| TPU | $37.50 | Flexible designs only; not a substitute for rigid materials. |
| Nylon | $37.50 | Moisture, tolerances and application require review. |
| PA-CF | $42.50 | Filled nylon; abrasive filament and fit need review. |
Pricing assumptions and exclusions
USD: ($6 setup + $3 finishing + filament weight × assumed spool cost × 1.25 waste allowance + print hours × $2.50 × material time factor) ÷ 0.65. Rounded up to the next $0.50.
Assumed spool costs per kg: PLA $25, PETG $30, ASA $40, ABS $30, TPU $45, Nylon $65, PA-CF $95. Time factors: PLA/PETG 1.0, ASA/ABS 1.2, TPU 1.6, Nylon 1.4, PA-CF 1.5. These are proposed shop rates, not measured production costs.
Design work, test fitting, hardware, shipping and tax are additional where needed. Multi-file sets may need several prints. Use actual sliced weight and time when available. Final pricing is confirmed in writing.
