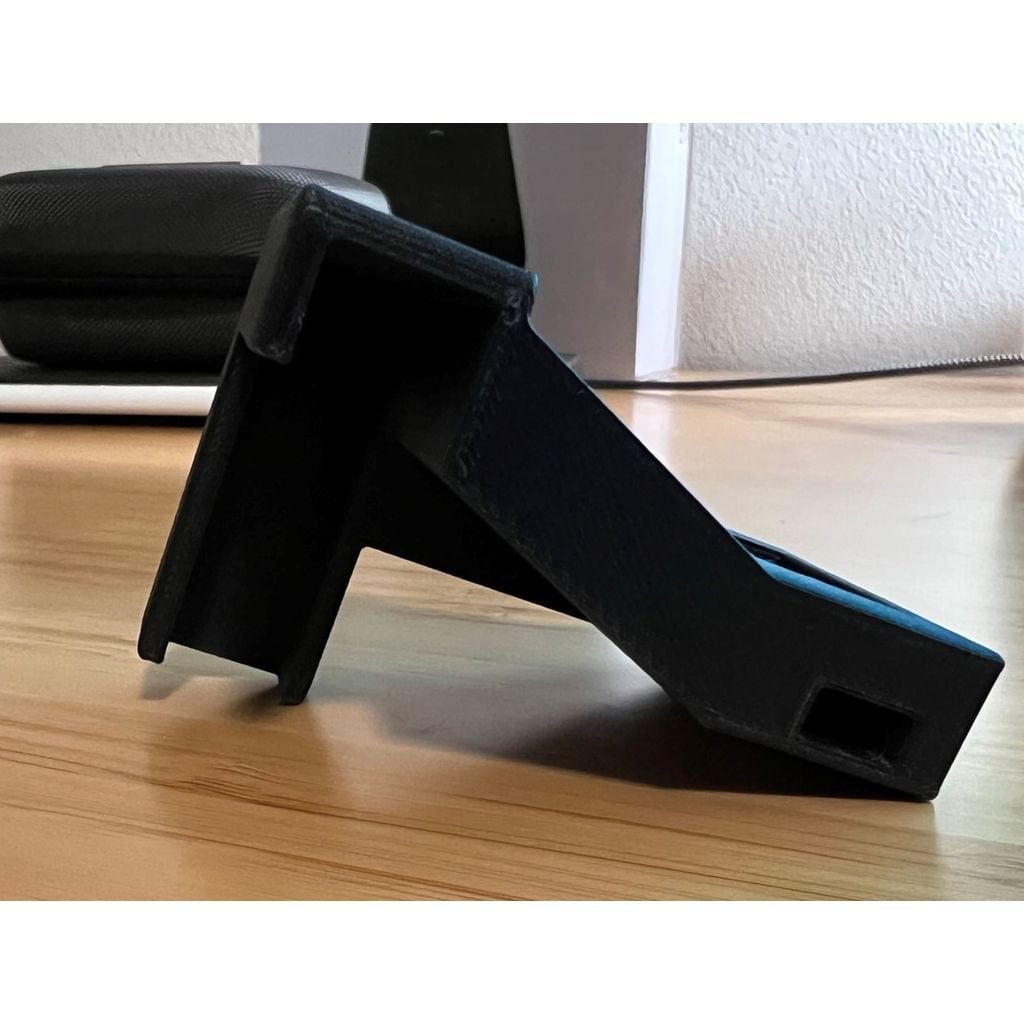

Designer source image. It may show an installed part, prototype or render; it is not an Orphaned Parts production sample.
Radenso DS1 Screen Mount
Radenso DS1 Screen Mount design listed for 2017 Tesla Model 3/Y. Listed category: interior. Verify dimensions, fitment and material suitability before printing.
- Make
- Tesla
- Model
- Model 3/Y
- Year range
- 2017
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description
I tried to get it near as flush with the screen as I could with out it looking oddly out of place on the backside of the mount.
When you purchase the Radenso DS1, it comes with a suction-cup mount that uses a magnet to lock the mounting system in place for the detector. If you notice on one side of the mount, there is a rectangular "tube". You can easily unscrew the magnetic from the suction-cup, take the magnet out and that rectangular "tube" snugly fits the stock magnet. Giving this mount also the ability to be magnetic as well.
It does fit snug around the screen, but just snug enough to not cause any damage and still remain in place (most of my revisions were getting this part right).
Shout out to @b00st3d, his V1G2 mount was what gave me the idea for this, as originally I was going to go with the V1G2 (https://www.thingiverse.com/thing:4914573).
In a future revision I plan on adding some small cable guides to have the cable going towards the passenger side of the car.
Also, from what I hear this will be very similar (if not the same) mounting system for the Radenso Theia :)
<h4>Version History</h4>
* 2.9.2 - I wanted some better magnet action, so I upgraded the magnet slight. 2.9.2 uses a N52 19.5x9.53x6.35mm (I bought mine from [TotalElement.com](https://totalelement.com/collections/block-magnets/products/3-4-x-3-8-x-1-4-inch-neodymium-rare-earth-block-magnets-n52-12-pack))
* 2.8 - Noticed due to the tilt of the screen the radar detector pointed down instead of straight, this is corrected in 2.8.
* 2.5 - Release.
Source description, under the recorded CC-BY-4.0 license.
Print instructions
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
Settings from the source; not independently tested by Orphaned Parts.
Print price estimates
Planning prices for one print, not a final quote. Defaults use a size allowance inferred from the part name, not a measured or sliced model. Filament suitability must be confirmed.
| Filament | USD / print | Application notes |
|---|---|---|
| PLA | $28.50 | Indoor prototypes; not a default material for hot vehicle interiors. |
| PETG | $29.00 | General-purpose candidate; heat and creep need review. |
| ASA | $32.50 | Candidate for UV exposure; verify temperature and geometry. |
| ABS | $31.50 | Enclosed printing; review application and dimensions. |
| TPU | $37.50 | Flexible designs only; not a substitute for rigid materials. |
| Nylon | $37.50 | Moisture, tolerances and application require review. |
| PA-CF | $42.50 | Filled nylon; abrasive filament and fit need review. |
Pricing assumptions and exclusions
USD: ($6 setup + $3 finishing + filament weight × assumed spool cost × 1.25 waste allowance + print hours × $2.50 × material time factor) ÷ 0.65. Rounded up to the next $0.50.
Assumed spool costs per kg: PLA $25, PETG $30, ASA $40, ABS $30, TPU $45, Nylon $65, PA-CF $95. Time factors: PLA/PETG 1.0, ASA/ABS 1.2, TPU 1.6, Nylon 1.4, PA-CF 1.5. These are proposed shop rates, not measured production costs.
Design work, test fitting, hardware, shipping and tax are additional where needed. Multi-file sets may need several prints. Use actual sliced weight and time when available. Final pricing is confirmed in writing.
