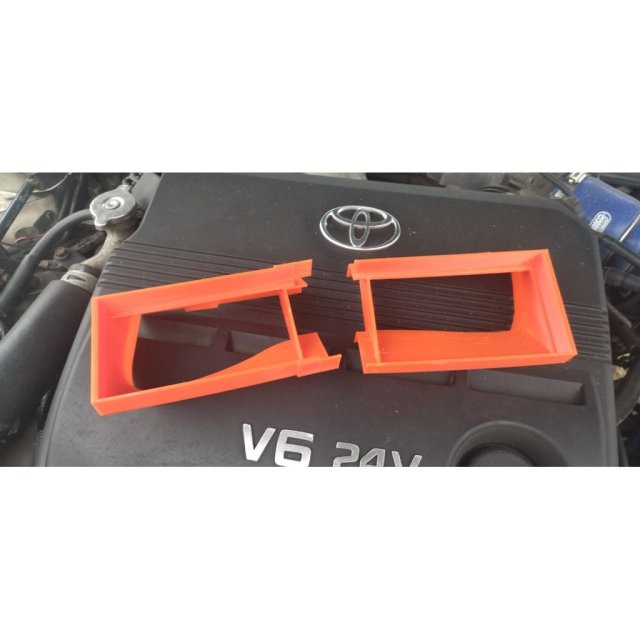

Designer source image. It may show an installed part, prototype or render; it is not an Orphaned Parts production sample.
Cabin Air Filter Adapter
Cabin Air Filter Adapter design listed for 1997–2001 Toyota Camry. Listed category: interior. Verify dimensions, fitment and material suitability before printing.
- Make
- Toyota
- Model
- Camry
- Year range
- 1997–2001
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description
I adapted the original model for JDM right-hand drive vehicles. The mounting hole shape is slightly different on these vehicles, but that's not a big deal. This adapter is installed using sealant, which will seal any gaps.
The model is optimized for minimal use of supports; it is sufficient to specify a support angle greater than 80 degrees.
The two-piece version is less than 170 mm wide.
The second, two-piece version has additional corner adhesion points for those whose corners tend to peel off.
And the one-piece version is for those lucky enough to own a printer with a print area of 300 mm or larger.
The filter used is from a Hyundai i20 KIA/HYUNDAI 971331J000
IMPORTANT! Models may be oriented incorrectly. The model should be printed in the position it will be in the car, with the filter space at the top. When modeling, I use a comfortable surface and don't control the top and bottom positions.
Source description, under the recorded CC-BY-SA-4.0 license.
Print instructions
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
Settings from the source; not independently tested by Orphaned Parts.
Print price estimates
Planning prices for one print, not a final quote. Defaults use a size allowance inferred from the part name, not a measured or sliced model. Filament suitability must be confirmed.
| Filament | USD / print | Application notes |
|---|---|---|
| PLA | $28.50 | Indoor prototypes; not a default material for hot vehicle interiors. |
| PETG | $29.00 | General-purpose candidate; heat and creep need review. |
| ASA | $32.50 | Candidate for UV exposure; verify temperature and geometry. |
| ABS | $31.50 | Enclosed printing; review application and dimensions. |
| TPU | $37.50 | Flexible designs only; not a substitute for rigid materials. |
| Nylon | $37.50 | Moisture, tolerances and application require review. |
| PA-CF | $42.50 | Filled nylon; abrasive filament and fit need review. |
Pricing assumptions and exclusions
USD: ($6 setup + $3 finishing + filament weight × assumed spool cost × 1.25 waste allowance + print hours × $2.50 × material time factor) ÷ 0.65. Rounded up to the next $0.50.
Assumed spool costs per kg: PLA $25, PETG $30, ASA $40, ABS $30, TPU $45, Nylon $65, PA-CF $95. Time factors: PLA/PETG 1.0, ASA/ABS 1.2, TPU 1.6, Nylon 1.4, PA-CF 1.5. These are proposed shop rates, not measured production costs.
Design work, test fitting, hardware, shipping and tax are additional where needed. Multi-file sets may need several prints. Use actual sliced weight and time when available. Final pricing is confirmed in writing.
