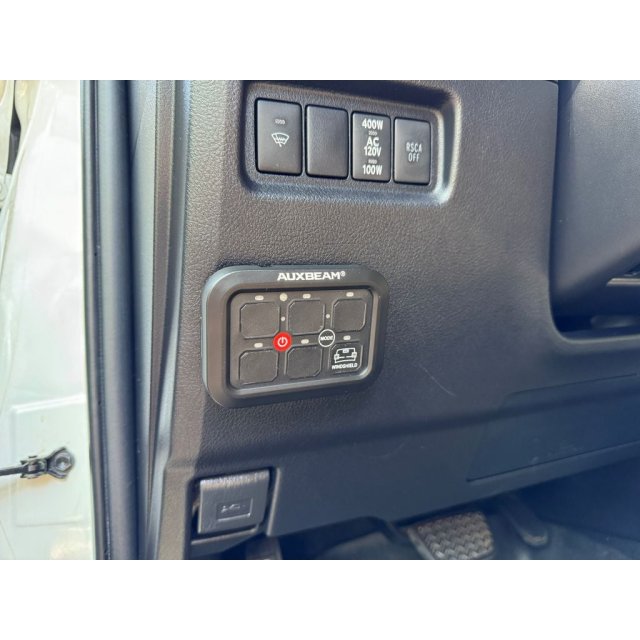

Designer source image. It may show an installed part, prototype or render; it is not an Orphaned Parts production sample.
Auxbeam RA60 6-Gang Switch Panel Mount
Auxbeam RA60 6-Gang Switch Panel Mount design listed for 2010–2024 Toyota 4Runner. Listed category: interior. Verify dimensions, fitment and material suitability before printing.
- Make
- Toyota
- Model
- 4Runner
- Year range
- 2010–2024
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description
It was designed around the Auxbeam RA60 but might work with other models and could fairly easily be adapted to fit an 8-gang panel.
The self-tapping screws that were included with the switch panel were used to mount the two printed parts together as well as the included small screws to mount the bracket to the switch panel itself. After assembly, remove the blank switch and insert this one into the dash. The round cutout is used to run the wire behind the dash.
While originally designed for the blank switch location pictured in a 5th-generation 4Runner, this will likely work in other Toyota models and spots, provided the removed switch size is roughly 33mm x 22mm.
Thanks to user "tiggerrr" for designing the original blank switch part. I just modified it for my use and created the bracket to be used with it.
Source description, under the recorded CC-BY-SA-4.0 license.
Print instructions
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
Settings from the source; not independently tested by Orphaned Parts.
Print price estimates
Planning prices for one print, not a final quote. Defaults use a size allowance inferred from the part name, not a measured or sliced model. Filament suitability must be confirmed.
| Filament | USD / print | Application notes |
|---|---|---|
| PLA | $57.50 | Indoor prototypes; not a default material for hot vehicle interiors. |
| PETG | $59.00 | General-purpose candidate; heat and creep need review. |
| ASA | $69.50 | Candidate for UV exposure; verify temperature and geometry. |
| ABS | $66.00 | Enclosed printing; review application and dimensions. |
| TPU | $85.00 | Flexible designs only; not a substitute for rigid materials. |
| Nylon | $85.00 | Moisture, tolerances and application require review. |
| PA-CF | $99.00 | Filled nylon; abrasive filament and fit need review. |
Pricing assumptions and exclusions
USD: ($6 setup + $3 finishing + filament weight × assumed spool cost × 1.25 waste allowance + print hours × $2.50 × material time factor) ÷ 0.65. Rounded up to the next $0.50.
Assumed spool costs per kg: PLA $25, PETG $30, ASA $40, ABS $30, TPU $45, Nylon $65, PA-CF $95. Time factors: PLA/PETG 1.0, ASA/ABS 1.2, TPU 1.6, Nylon 1.4, PA-CF 1.5. These are proposed shop rates, not measured production costs.
Design work, test fitting, hardware, shipping and tax are additional where needed. Multi-file sets may need several prints. Use actual sliced weight and time when available. Final pricing is confirmed in writing.
