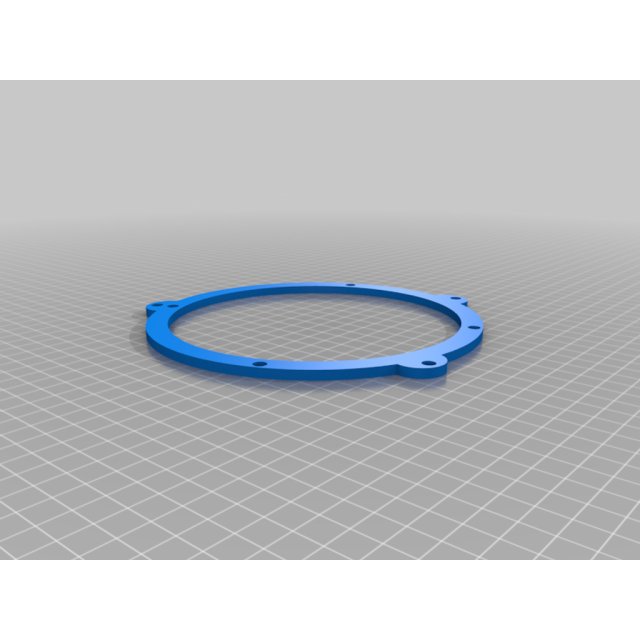

Designer source image. It may show an installed part, prototype or render; it is not an Orphaned Parts production sample.

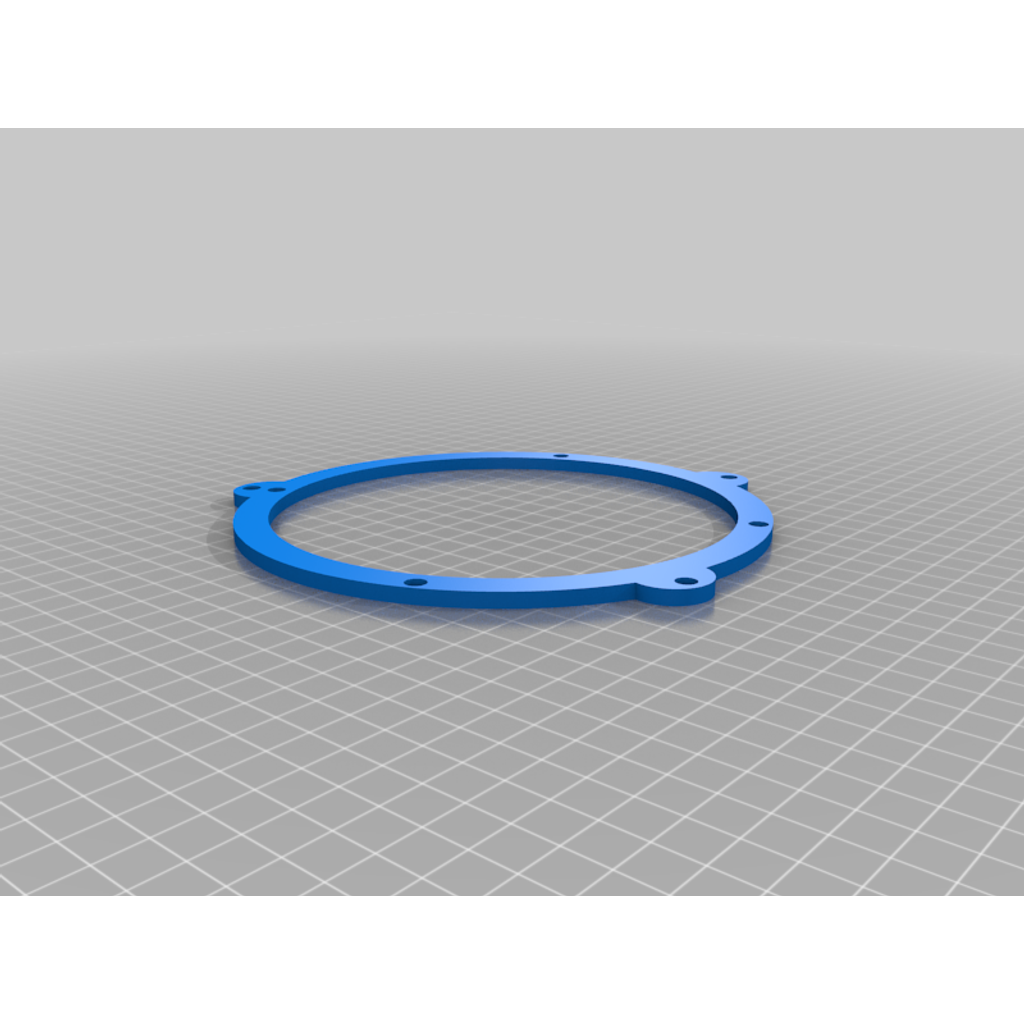

Speaker Mount Adapter
Speaker Mount Adapter design listed for 1997–2006 BMW 3 Series. Listed category: mounts-brackets. Verify dimensions, fitment and material suitability before printing.
- Make
- BMW
- Model
- 3 Series
- Year range
- 1997–2006
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description
So this is a Remix of an existing MidBass mount (Could also be used for some E9X etc. Models of BMW).
I would like to say that this is not suiting for E46 all of the parts!
This adapters are a copy of an adapters of name Phonocar id number of : 3/938
Adapters that we're in pre-remix, are correct, just not good load capacity on holes, so i will add a file with no holes for a speaker at all so you can make them yourself.
Please read part name in file name, so it will suit for your vehicle.
I also made a file for a E46 Cabrio rear speakers which has a 130mm original speakers, since i could not find any low profile 130mm speaker i made a reduction on 10cm suits for Crunch DSX 4.2 Components.
Fort test print i used PLA so i knew if speaker holes are correct.
Holes are a diameter of 5,9mm meant to be mounted with a M4 screw and nut.
Holes suits for my speakers which are Component of Crunch GTS 6.2C and for Rear deck Coaxials GTS62, which have the same mounting cage. Also the big hole is meant for this, but i got it a little bit too big, so i can play with holes.
I also made a Tweeter mount for front door, for the Tweeters included with Components. No need for mirroring.
You cam seal adapters with some silicone or print 0.8mm o-ring from flexible material.
17-4-2022
I also made a lifted version for fronts since i upgraded fronts on my friends car and speakers were a little too deep. Mounting holes are 2,5mm, bored to 3.5 and made M4 thread and M4 x 25mm screw.
NOTE: If anyone is looking for a low profile speakers, there is a brand Phoneix Gold which produces them, suits front and rear end of vehicle.
Fronts: Phoenix Gold Z 6.5 CS
Rears: Z 6.5 CX
This are all a 40Watt RMS on 4 ohm load. Suits any low cost budget 2/4 channel amplifier.
Know also that you wont be getting alot of bass from this speakers if you have aftermarket radio!
Source description, under the recorded CC-BY-4.0 license.
Print instructions
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
Settings from the source; not independently tested by Orphaned Parts.
Print price estimates
Planning prices for one print, not a final quote. Defaults use a size allowance inferred from the part name, not a measured or sliced model. Filament suitability must be confirmed.
| Filament | USD / print | Application notes |
|---|---|---|
| PLA | $28.50 | Indoor prototypes; not a default material for hot vehicle interiors. |
| PETG | $29.00 | General-purpose candidate; heat and creep need review. |
| ASA | $32.50 | Candidate for UV exposure; verify temperature and geometry. |
| ABS | $31.50 | Enclosed printing; review application and dimensions. |
| TPU | $37.50 | Flexible designs only; not a substitute for rigid materials. |
| Nylon | $37.50 | Moisture, tolerances and application require review. |
| PA-CF | $42.50 | Filled nylon; abrasive filament and fit need review. |
Pricing assumptions and exclusions
USD: ($6 setup + $3 finishing + filament weight × assumed spool cost × 1.25 waste allowance + print hours × $2.50 × material time factor) ÷ 0.65. Rounded up to the next $0.50.
Assumed spool costs per kg: PLA $25, PETG $30, ASA $40, ABS $30, TPU $45, Nylon $65, PA-CF $95. Time factors: PLA/PETG 1.0, ASA/ABS 1.2, TPU 1.6, Nylon 1.4, PA-CF 1.5. These are proposed shop rates, not measured production costs.
Design work, test fitting, hardware, shipping and tax are additional where needed. Multi-file sets may need several prints. Use actual sliced weight and time when available. Final pricing is confirmed in writing.
