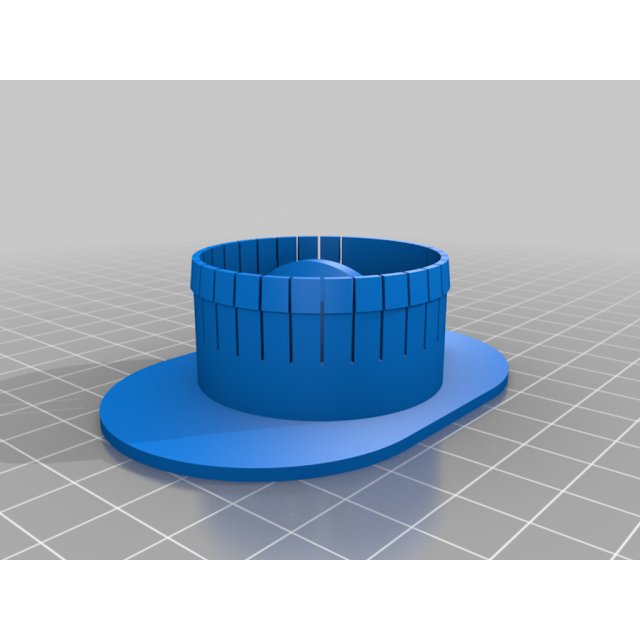

Designer source image. It may show an installed part, prototype or render; it is not an Orphaned Parts production sample.
Tow Bar Cover Cap
Tow Bar Cover Cap design listed for 2005–2006 Subaru Outback. Listed category: exterior. Verify dimensions, fitment and material suitability before printing.
- Make
- Subaru
- Model
- Outback
- Year range
- 2005–2006
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
This listing is not offered for sale. Commercial permission or application suitability needs review.
Description
It might fit other cars, but the one it fits for sure is Subaru Outback 2005 with the detachable AL-KO tow bar.
Part numbers, that might help identify the correct device:
L101EAG971
EAG071
The designed is parametric and can be tuned with following variables:
dia1 - the tow bar diameter
wall - width of walls
height1 - the position of the hooks - how deep inside.
tooth - size of the hooks (careful, must remain printable!)
The sweet spot for good fit is height1=17 and tooth=0.5. with height1=17.6 the tooth engage and lock behind the inner step so well, that it needs a tool to get removed (and many tooth broke). So let me know if this fits your car!
Source description, under the recorded CC-BY-4.0 license.
Print instructions
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
Settings from the source; not independently tested by Orphaned Parts.
Print price estimates
Planning prices for one print, not a final quote. Defaults use a size allowance inferred from the part name, not a measured or sliced model. Filament suitability must be confirmed.
| Filament | USD / print | Application notes |
|---|---|---|
| PLA | $21.50 | Indoor prototypes; not a default material for hot vehicle interiors. |
| PETG | $21.50 | General-purpose candidate; heat and creep need review. |
| ASA | $23.50 | Candidate for UV exposure; verify temperature and geometry. |
| ABS | $22.50 | Enclosed printing; review application and dimensions. |
| TPU | $26.00 | Flexible designs only; not a substitute for rigid materials. |
| Nylon | $26.00 | Moisture, tolerances and application require review. |
| PA-CF | $28.00 | Filled nylon; abrasive filament and fit need review. |
Cost examples only. This design is not offered for sale; permission or specialist application review is required.
Pricing assumptions and exclusions
USD: ($6 setup + $3 finishing + filament weight × assumed spool cost × 1.25 waste allowance + print hours × $2.50 × material time factor) ÷ 0.65. Rounded up to the next $0.50.
Assumed spool costs per kg: PLA $25, PETG $30, ASA $40, ABS $30, TPU $45, Nylon $65, PA-CF $95. Time factors: PLA/PETG 1.0, ASA/ABS 1.2, TPU 1.6, Nylon 1.4, PA-CF 1.5. These are proposed shop rates, not measured production costs.
Design work, test fitting, hardware, shipping and tax are additional where needed. Multi-file sets may need several prints. Use actual sliced weight and time when available. Final pricing is confirmed in writing.
