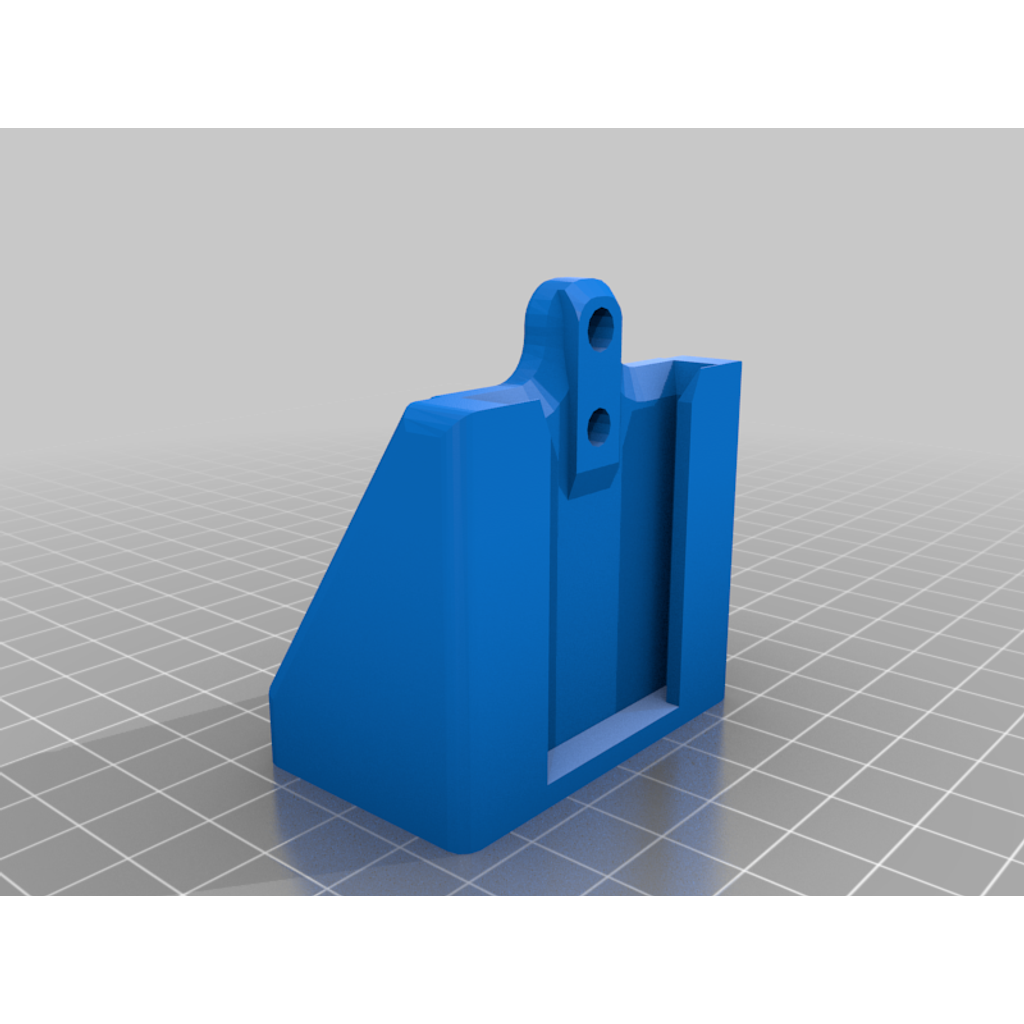

Designer source image. It may show an installed part, prototype or render; it is not an Orphaned Parts production sample.
Radiator Fan Relay Mount 850 960 v70
Radiator Fan Relay Mount 850 960 v70 design listed for 1996–2013 Volvo C70. Listed category: interior. Verify dimensions, fitment and material suitability before printing.
- Make
- Volvo
- Model
- C70
- Year range
- 1996–2013
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
This listing is not offered for sale. Commercial permission or application suitability needs review.
Description
Its a strong 450 watt fan with 2 speeds and they can be had for cheap!
They are found on these volvos:
V70,S70,C70,850,Late 940 and 960s
But how to mount the relay if you dont have the clips?
Print this and mount the relay with a M6 or M8 Bolt to your chassis!
Even with room for the large type M8 washer.
Just slide the relay into the mount when its tight to your desired location.
Volvo part number for relay that fits the holder is: 9442933 or 9442934
Theres 2 versions.
One that uses stock type push in and a molded "blob" ontop of the relay will keep the relay in place when its pushed in enough.
Second called "Super Secure" uses same model but additional place to put a ziptie trugh when the relay is in its place. The ziptie will block the relay from wiggling out! Just put it trugh and tighten in a loop
Source description, under the recorded CC-BY-4.0 license.
Print instructions
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
Settings from the source; not independently tested by Orphaned Parts.
Print price estimates
Planning prices for one print, not a final quote. Defaults use a size allowance inferred from the part name, not a measured or sliced model. Filament suitability must be confirmed.
| Filament | USD / print | Application notes |
|---|---|---|
| PLA | $28.50 | Indoor prototypes; not a default material for hot vehicle interiors. |
| PETG | $29.00 | General-purpose candidate; heat and creep need review. |
| ASA | $32.50 | Candidate for UV exposure; verify temperature and geometry. |
| ABS | $31.50 | Enclosed printing; review application and dimensions. |
| TPU | $37.50 | Flexible designs only; not a substitute for rigid materials. |
| Nylon | $37.50 | Moisture, tolerances and application require review. |
| PA-CF | $42.50 | Filled nylon; abrasive filament and fit need review. |
Cost examples only. This design is not offered for sale; permission or specialist application review is required.
Pricing assumptions and exclusions
USD: ($6 setup + $3 finishing + filament weight × assumed spool cost × 1.25 waste allowance + print hours × $2.50 × material time factor) ÷ 0.65. Rounded up to the next $0.50.
Assumed spool costs per kg: PLA $25, PETG $30, ASA $40, ABS $30, TPU $45, Nylon $65, PA-CF $95. Time factors: PLA/PETG 1.0, ASA/ABS 1.2, TPU 1.6, Nylon 1.4, PA-CF 1.5. These are proposed shop rates, not measured production costs.
Design work, test fitting, hardware, shipping and tax are additional where needed. Multi-file sets may need several prints. Use actual sliced weight and time when available. Final pricing is confirmed in writing.
