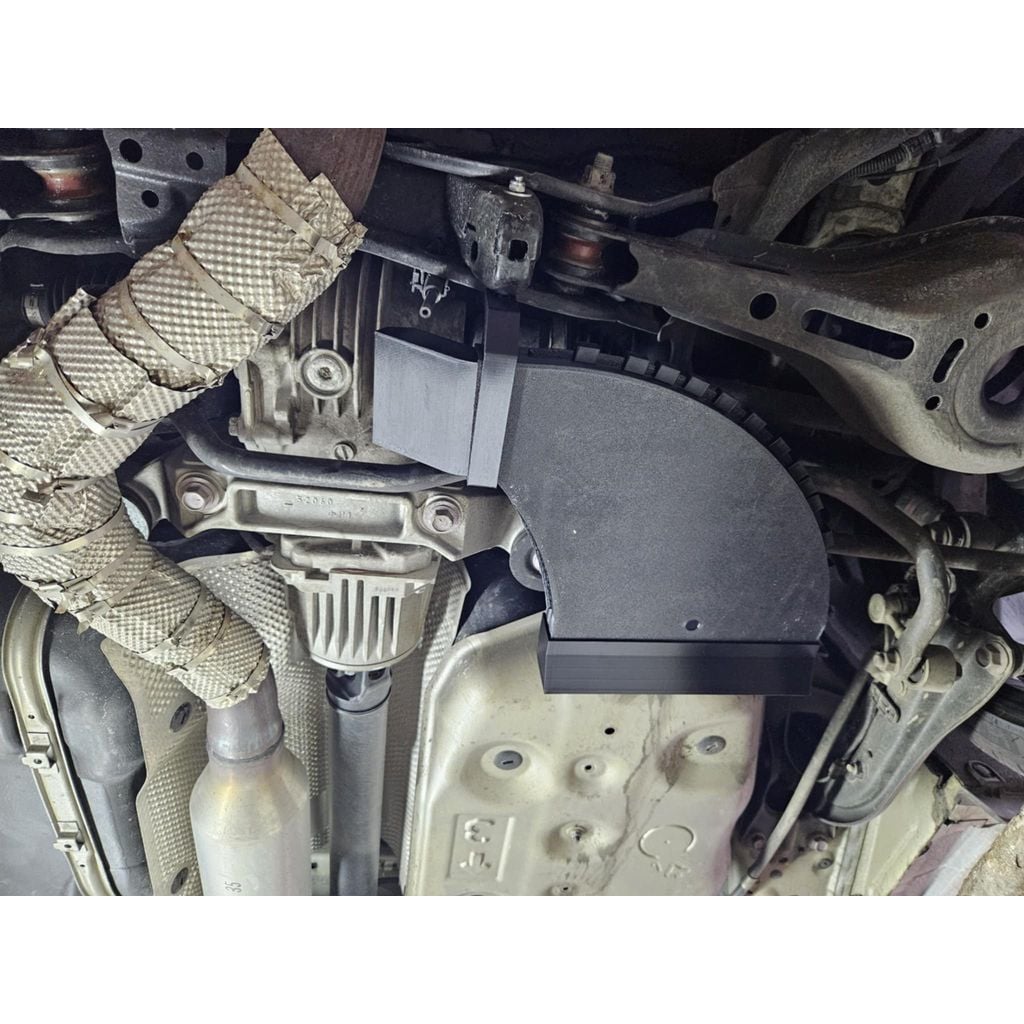

Designer source image. It may show an installed part, prototype or render; it is not an Orphaned Parts production sample.
GR Rear Differential Cooler Duct
GR Rear Differential Cooler Duct design listed for 1999 Toyota Yaris. Listed category: cooling-system. Verify dimensions, fitment and material suitability before printing.
- Make
- Toyota
- Model
- Yaris
- Year range
- 1999
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description
3D printable rear diff duct for GR Yaris.
## Technologies
- FreeCad
## Printing
Part in split into separate bodies, but large printer is required for main bit. Idealy something around 35x35 (like Qidi X-MAX3).
Main body can be split in slicer into two halves to avoid filament waste on supports. There is a lip on the edge which allows to either plastic-weld it with soldering iron or to glue it together.
Other pieces are a press/snap fit, but glue is recommended to keep it all in one big piece.
### Parts:
- Inlet - cutout holes for main body are already bigger, to account for printer tolerances (as scaling this part in slicer would be hard)
- RearHanger - probably safest to scale it to 102-103 %
- Outlet - probably safest to scale it to 99%
- MainBody - print "as is"
**Bear in mind that due to printer's tolerance - You might need to scale some parts up/down.**
## Development
This project is open source: https://github.com/bogumilbierc/gr-yaris-rear-diff-duct/tree/main
