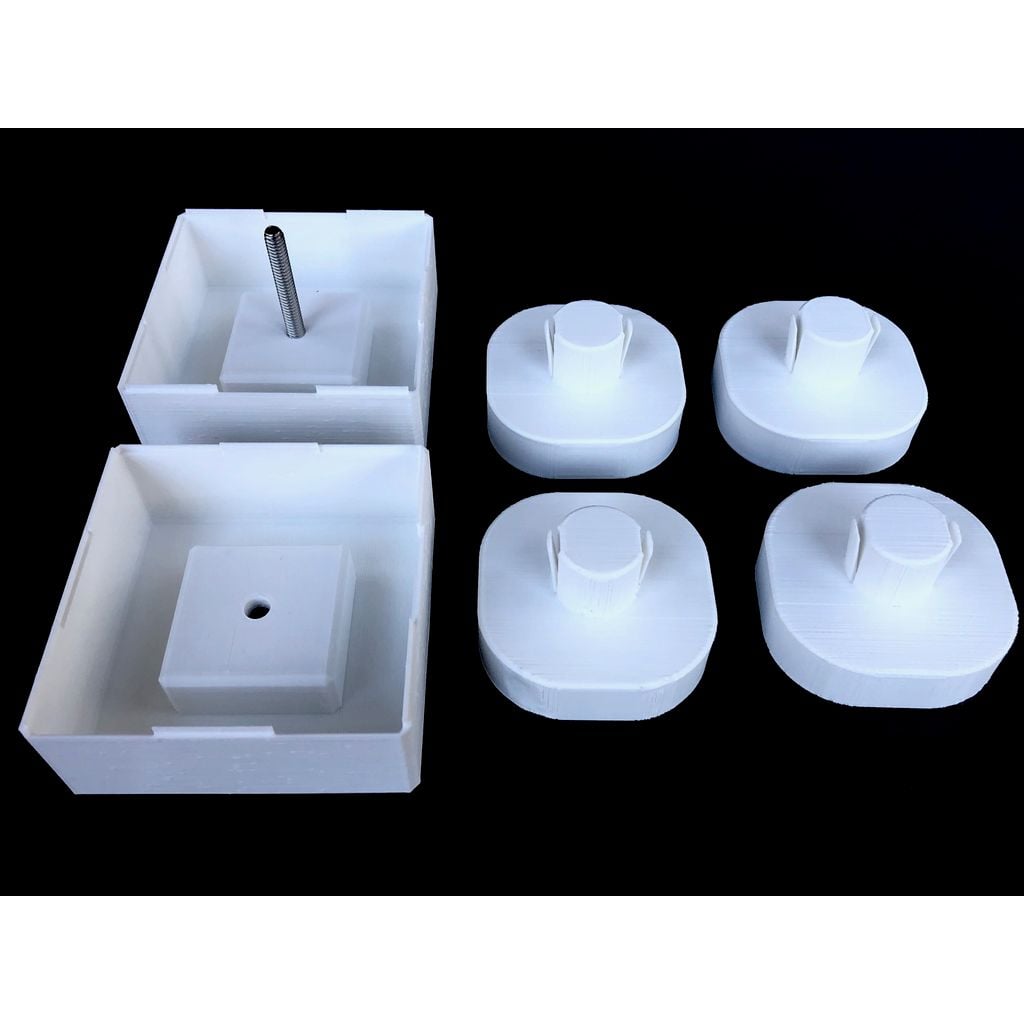

Designer source image. It may show an installed part, prototype or render; it is not an Orphaned Parts production sample.
Jack Pad Set with Box
Jack Pad Set with Box design listed for 2017–2026 Tesla Model 3. Listed category: specialty-tools. Verify dimensions, fitment and material suitability before printing.
- Make
- Tesla
- Model
- Model 3
- Year range
- 2017–2026
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description
The Jackpads can be made with or without the tabs. If no tabs, then it can be printed flat without supports. If printed with tabs, its best to print on the side with supports so the tabs are stronger and can bend without breaking.
The Jackpad Box requires two of the box halves to be printed. There are 3 options available that can be mixed and matched however you want. One file is unthreaded, one has 1/4-20 thread, and one has M6 thread. You can print two unthreaded halves and hold them together with a screw and a nut, or you can print one unthreaded and one threaded half and just need one 2 inch / 50 mm screw to hold it together. The threads print well on a well-tuned printer, but depending on your print quality you may need to run a tap through when done to clean it up.
Print Settings:
100% Fill
3 Perimeters
Material: PLA/ABS/PETG
Printed with white Hatchbox PLA on Prusa i3 mk3. Designed in OpenSCAD.
Source description, under the recorded CC-BY-4.0 license.
Print instructions
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
Settings from the source; not independently tested by Orphaned Parts.
Print price estimates
Planning prices for one print, not a final quote. Defaults use a size allowance inferred from the part name, not a measured or sliced model. Filament suitability must be confirmed.
| Filament | USD / print | Application notes |
|---|---|---|
| PLA | $28.50 | Indoor prototypes; not a default material for hot vehicle interiors. |
| PETG | $29.00 | General-purpose candidate; heat and creep need review. |
| ASA | $32.50 | Candidate for UV exposure; verify temperature and geometry. |
| ABS | $31.50 | Enclosed printing; review application and dimensions. |
| TPU | $37.50 | Flexible designs only; not a substitute for rigid materials. |
| Nylon | $37.50 | Moisture, tolerances and application require review. |
| PA-CF | $42.50 | Filled nylon; abrasive filament and fit need review. |
Pricing assumptions and exclusions
USD: ($6 setup + $3 finishing + filament weight × assumed spool cost × 1.25 waste allowance + print hours × $2.50 × material time factor) ÷ 0.65. Rounded up to the next $0.50.
Assumed spool costs per kg: PLA $25, PETG $30, ASA $40, ABS $30, TPU $45, Nylon $65, PA-CF $95. Time factors: PLA/PETG 1.0, ASA/ABS 1.2, TPU 1.6, Nylon 1.4, PA-CF 1.5. These are proposed shop rates, not measured production costs.
Design work, test fitting, hardware, shipping and tax are additional where needed. Multi-file sets may need several prints. Use actual sliced weight and time when available. Final pricing is confirmed in writing.
