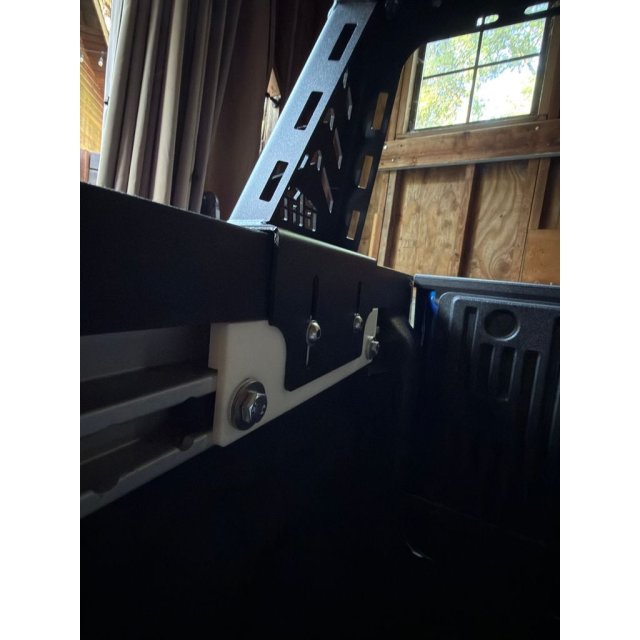

Designer source image. It may show an installed part, prototype or render; it is not an Orphaned Parts production sample.
Universal Bed Bars Adapter
Universal Bed Bars Adapter design listed for 2022 Nissan Frontier. Listed category: exterior. Verify dimensions, fitment and material suitability before printing.
- Make
- Nissan
- Model
- Frontier
- Year range
- 2022
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description
100% infill on all parts of either ABS or ASA. I recommend ASA due to the UV resistance that ABS does not have. Either will work though.
-4X CBI Adapter prints
-8X T-slot prints
You will need to go to the hardware store to pick up some M10 Hardware. Ideally you want stainless so it doesn't stain anything. I would recommend using either 242 or 243 blue Loctite.
Need from hardware store:
-M10 Bolt 45mm Shaft length. (If you get bolts that are too long they will start to push into the track system and leave marks).
-M10 standard nut (No flanges)
-M10 washer
The T-slot adapter will need to slot into the Utilitrack with an M10 nut. You can use the original Allen Key hardware for the bed bar to the adapter, but you will still need an M10 nut that is 1.50mm pitch.
Please let me know if you would like any changes to the design or would like different size hardware. I found that M10 was the best size.
Source description, under the recorded CC-BY-SA-4.0 license.
Print instructions
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
Settings from the source; not independently tested by Orphaned Parts.
Print price estimates
Planning prices for one print, not a final quote. Defaults use a size allowance inferred from the part name, not a measured or sliced model. Filament suitability must be confirmed.
| Filament | USD / print | Application notes |
|---|---|---|
| PLA | $28.50 | Indoor prototypes; not a default material for hot vehicle interiors. |
| PETG | $29.00 | General-purpose candidate; heat and creep need review. |
| ASA | $32.50 | Candidate for UV exposure; verify temperature and geometry. |
| ABS | $31.50 | Enclosed printing; review application and dimensions. |
| TPU | $37.50 | Flexible designs only; not a substitute for rigid materials. |
| Nylon | $37.50 | Moisture, tolerances and application require review. |
| PA-CF | $42.50 | Filled nylon; abrasive filament and fit need review. |
Pricing assumptions and exclusions
USD: ($6 setup + $3 finishing + filament weight × assumed spool cost × 1.25 waste allowance + print hours × $2.50 × material time factor) ÷ 0.65. Rounded up to the next $0.50.
Assumed spool costs per kg: PLA $25, PETG $30, ASA $40, ABS $30, TPU $45, Nylon $65, PA-CF $95. Time factors: PLA/PETG 1.0, ASA/ABS 1.2, TPU 1.6, Nylon 1.4, PA-CF 1.5. These are proposed shop rates, not measured production costs.
Design work, test fitting, hardware, shipping and tax are additional where needed. Multi-file sets may need several prints. Use actual sliced weight and time when available. Final pricing is confirmed in writing.
