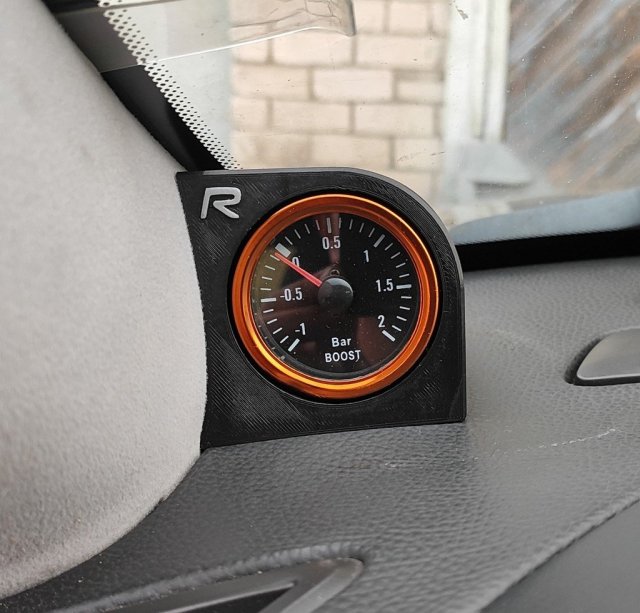

Designer source image. It may show an installed part, prototype or render; it is not an Orphaned Parts production sample.
Boost Gauge Pod
Boost Gauge Pod design listed for 2005 Volvo S60. Listed category: interior. Verify dimensions, fitment and material suitability before printing.
- Make
- Volvo
- Model
- S60
- Year range
- 2005
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description
Sunked-in design is based on my boost gauge and might not work for you (outer diameter of boost gauge 58mm and 10mm deep).
I 3D scanned cars interior for the pod to fit perfectly between A-pillar and dashboard. Vacuum hose (8mm outer diameter) comes from the back and is routed through the corner of window/A-pillar/dashboard.
Pod has two protrusions on the side for attachment. Just insert it in the gap between dashboard and A-pillar.
Sandpaper, filler, primer and paint is always an option!
Source description, under the recorded CC-BY-SA-4.0 license.
Print instructions
Brand: Prusa
Printer: i3 MK3
Rafts: No Supports: Yes Resolution: 0,2 Infill: 20 Filament: Any PETG Any Notes: Print it from heat resistant plastic because sun can deform it... I used PETG but will have to test it long term.For R-logo print it with 0,2mm nozzle for better accuracy. If you print with 0,4mm nozzle you might need to scale it a bit.
Settings from the source; not independently tested by Orphaned Parts.
Print price estimates
Planning prices for one print, not a final quote. Defaults use a size allowance inferred from the part name, not a measured or sliced model. Filament suitability must be confirmed.
| Filament | USD / print | Application notes |
|---|---|---|
| PLA | $28.50 | Indoor prototypes; not a default material for hot vehicle interiors. |
| PETG | $29.00 | General-purpose candidate; heat and creep need review. |
| ASA | $32.50 | Candidate for UV exposure; verify temperature and geometry. |
| ABS | $31.50 | Enclosed printing; review application and dimensions. |
| TPU | $37.50 | Flexible designs only; not a substitute for rigid materials. |
| Nylon | $37.50 | Moisture, tolerances and application require review. |
| PA-CF | $42.50 | Filled nylon; abrasive filament and fit need review. |
Pricing assumptions and exclusions
USD: ($6 setup + $3 finishing + filament weight × assumed spool cost × 1.25 waste allowance + print hours × $2.50 × material time factor) ÷ 0.65. Rounded up to the next $0.50.
Assumed spool costs per kg: PLA $25, PETG $30, ASA $40, ABS $30, TPU $45, Nylon $65, PA-CF $95. Time factors: PLA/PETG 1.0, ASA/ABS 1.2, TPU 1.6, Nylon 1.4, PA-CF 1.5. These are proposed shop rates, not measured production costs.
Design work, test fitting, hardware, shipping and tax are additional where needed. Multi-file sets may need several prints. Use actual sliced weight and time when available. Final pricing is confirmed in writing.
