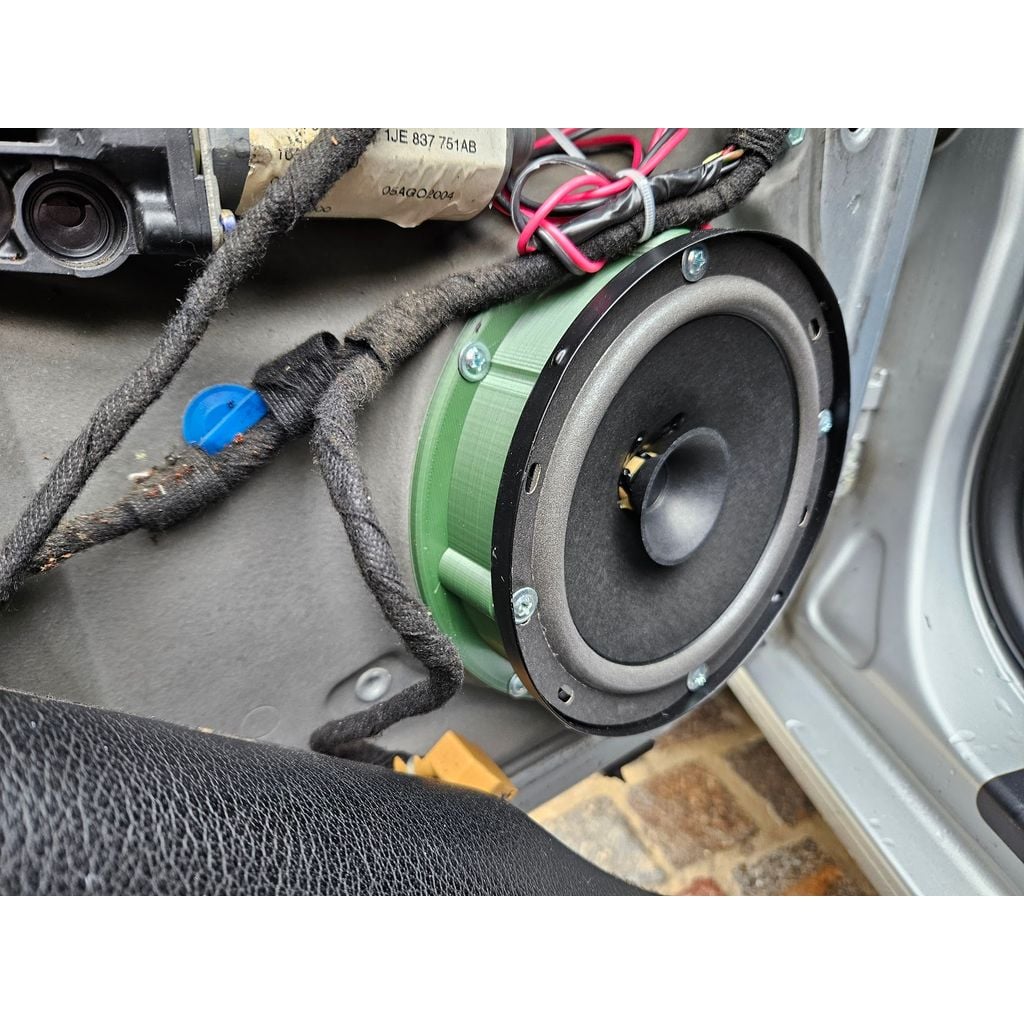

Designer source image. It may show an installed part, prototype or render; it is not an Orphaned Parts production sample.
Speaker Ring Adapter for VW VW BORA VW Jetta 6in Speakers
Speaker Ring Adapter for VW VW BORA VW Jetta 6in Speakers design listed for 1997–2006 Volkswagen Golf. Listed category: interior. Verify dimensions, fitment and material suitability before printing.
- Make
- Volkswagen
- Model
- Golf
- Year range
- 1997–2006
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description
Door bolts with 5mm@10mm. (158mm standard door fixed bolts)
Speakers fixed with drywall 5/8 (143mm diameter)
Standard fix for 6in speakers.(not 6.25 or 6.5mm)
...
Adapter for VW Golf, Jetta, Bora for 6-inch speakers/components.
The speakers have a mounting pattern of 143mm diameter (4 fixings at 90 degrees).
The doors have a standard mounting pattern of 158mm diameter (4 fixings at 90 degrees) after removing the aluminum rivets with a 5mm drill bit.
Designed to save material and for fast printing.
Source description, under the recorded CC-BY-4.0 license.
Print instructions
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
Settings from the source; not independently tested by Orphaned Parts.
Print price estimates
Planning prices for one print, not a final quote. Defaults use a size allowance inferred from the part name, not a measured or sliced model. Filament suitability must be confirmed.
| Filament | USD / print | Application notes |
|---|---|---|
| PLA | $28.50 | Indoor prototypes; not a default material for hot vehicle interiors. |
| PETG | $29.00 | General-purpose candidate; heat and creep need review. |
| ASA | $32.50 | Candidate for UV exposure; verify temperature and geometry. |
| ABS | $31.50 | Enclosed printing; review application and dimensions. |
| TPU | $37.50 | Flexible designs only; not a substitute for rigid materials. |
| Nylon | $37.50 | Moisture, tolerances and application require review. |
| PA-CF | $42.50 | Filled nylon; abrasive filament and fit need review. |
Pricing assumptions and exclusions
USD: ($6 setup + $3 finishing + filament weight × assumed spool cost × 1.25 waste allowance + print hours × $2.50 × material time factor) ÷ 0.65. Rounded up to the next $0.50.
Assumed spool costs per kg: PLA $25, PETG $30, ASA $40, ABS $30, TPU $45, Nylon $65, PA-CF $95. Time factors: PLA/PETG 1.0, ASA/ABS 1.2, TPU 1.6, Nylon 1.4, PA-CF 1.5. These are proposed shop rates, not measured production costs.
Design work, test fitting, hardware, shipping and tax are additional where needed. Multi-file sets may need several prints. Use actual sliced weight and time when available. Final pricing is confirmed in writing.
