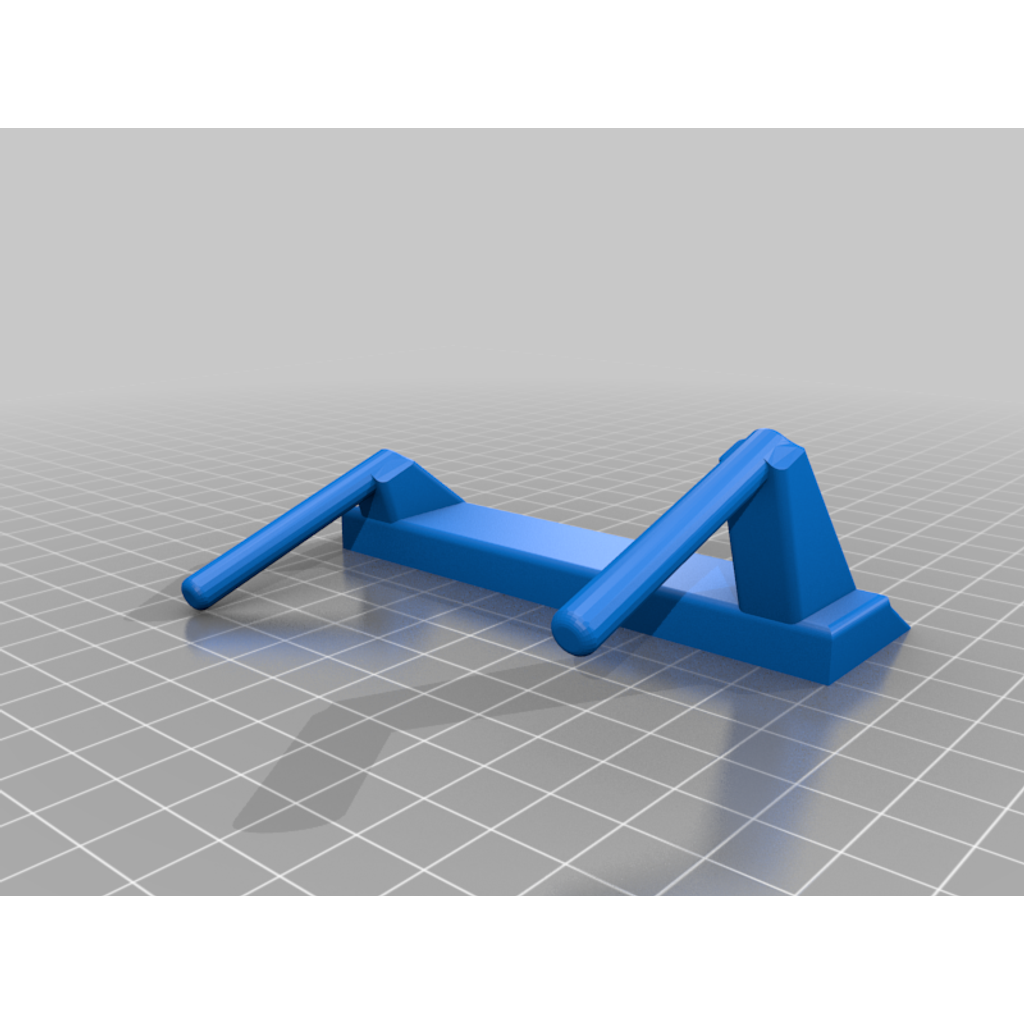

Designer source image. It may show an installed part, prototype or render; it is not an Orphaned Parts production sample.
Smartphone Bracket
Smartphone Bracket design listed for 2014–2024 Mercedes-Benz V-Class. Listed category: interior. Verify dimensions, fitment and material suitability before printing.
- Make
- Mercedes-Benz
- Model
- V-Class
- Year range
- 2014–2024
- Submodel
- Marcopolo
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description
Para adherir el móvil al soporte he utilizado dos ventosas de las que te vienen en cualquier kit de recambio de pantallas móviles.
No tapa la visión de la pantalla del coche y puedes ver también la del móvil para poder utilizar el google maps.
La ventosa tiene fuerza suficiente para pegarlo en una sola en horizontal, o incluso dos móviles en horizontal aunque para ello recomiendo colocar dos ventosas en cada varilla.
Construido en abs, relleno del 50%. cama a 90ºC y extrusor a 235ºC con una Anet A6.
Aconsejable para evitar warping falda a offset de 0 , dos capas de cinco a siete contornos.
Utilizar soportes, y muy aconsejable hacerlo en un color mas discreto.
Source description, under the recorded CC-BY-SA-4.0 license.
Print instructions
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
Settings from the source; not independently tested by Orphaned Parts.
Print price estimates
Planning prices for one print, not a final quote. Defaults use a size allowance inferred from the part name, not a measured or sliced model. Filament suitability must be confirmed.
| Filament | USD / print | Application notes |
|---|---|---|
| PLA | $28.50 | Indoor prototypes; not a default material for hot vehicle interiors. |
| PETG | $29.00 | General-purpose candidate; heat and creep need review. |
| ASA | $32.50 | Candidate for UV exposure; verify temperature and geometry. |
| ABS | $31.50 | Enclosed printing; review application and dimensions. |
| TPU | $37.50 | Flexible designs only; not a substitute for rigid materials. |
| Nylon | $37.50 | Moisture, tolerances and application require review. |
| PA-CF | $42.50 | Filled nylon; abrasive filament and fit need review. |
Pricing assumptions and exclusions
USD: ($6 setup + $3 finishing + filament weight × assumed spool cost × 1.25 waste allowance + print hours × $2.50 × material time factor) ÷ 0.65. Rounded up to the next $0.50.
Assumed spool costs per kg: PLA $25, PETG $30, ASA $40, ABS $30, TPU $45, Nylon $65, PA-CF $95. Time factors: PLA/PETG 1.0, ASA/ABS 1.2, TPU 1.6, Nylon 1.4, PA-CF 1.5. These are proposed shop rates, not measured production costs.
Design work, test fitting, hardware, shipping and tax are additional where needed. Multi-file sets may need several prints. Use actual sliced weight and time when available. Final pricing is confirmed in writing.
