Design by SHODAN556 · Original design · CC0-1.0 · Source details. Indexed via 3DCarParts. Source text and images remain credited to their creators; no modified design files supplied.

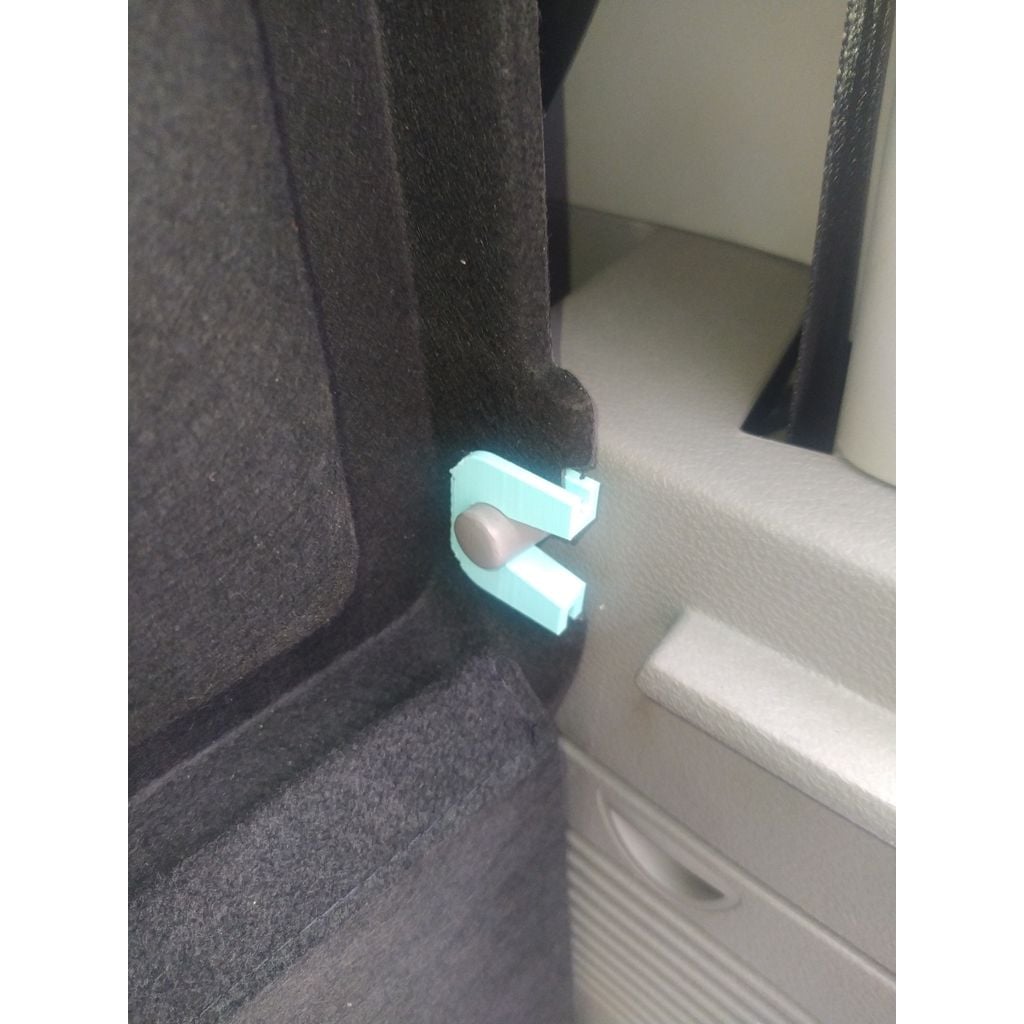

Designer source image. It may show an installed part, prototype or render; it is not an Orphaned Parts production sample.
trunk parcel shelf clip replacement
trunk parcel shelf clip replacement design listed for 2004–2012 Renault Modus. Listed category: exterior. Verify dimensions, fitment and material suitability before printing.
- Make
- Renault
- Model
- Modus
- Year range
- 2004–2012
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description
In my case it printed correctly on Artillery Hornet, at 100mm/s speed, using PLA, 200 degrees Celsius hotend, 60 degrees Celsius hotbed. For me PLA worked fine, it fits snuggly. I guess users smarter than me will say PET-G or ABS would be better for this project.
I would suggest printing it with "pitchforks" sided up, using small raft and supports due to long hole in the middle at the bottom, across whole model, which must be kept. Print at scale 100% - correct dimensions: 40mm x 34mm x 10mm. 20% fill should be fine.
If you know any other car may use this clip, tell me, I will add other car models to tag list. I'm uploading also a FreeCAD project. If you need to adjust the model, adjust the model.
This is one of my first projects, I'm an owner of 3D printer for 3 days, please don't bite too hard :)
Source description, under the recorded CC0-1.0 license.
Print instructions
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
Settings from the source; not independently tested by Orphaned Parts.
Print price estimates
Planning prices for one print, not a final quote. Defaults use a size allowance inferred from the part name, not a measured or sliced model. Filament suitability must be confirmed.
| Filament | USD / print | Application notes |
|---|---|---|
| PLA | $17.50 | Indoor prototypes; not a default material for hot vehicle interiors. |
| PETG | $18.00 | General-purpose candidate; heat and creep need review. |
| ASA | $18.50 | Candidate for UV exposure; verify temperature and geometry. |
| ABS | $18.50 | Enclosed printing; review application and dimensions. |
| TPU | $20.00 | Flexible designs only; not a substitute for rigid materials. |
| Nylon | $20.00 | Moisture, tolerances and application require review. |
| PA-CF | $21.00 | Filled nylon; abrasive filament and fit need review. |
Pricing assumptions and exclusions
USD: ($6 setup + $3 finishing + filament weight × assumed spool cost × 1.25 waste allowance + print hours × $2.50 × material time factor) ÷ 0.65. Rounded up to the next $0.50.
Assumed spool costs per kg: PLA $25, PETG $30, ASA $40, ABS $30, TPU $45, Nylon $65, PA-CF $95. Time factors: PLA/PETG 1.0, ASA/ABS 1.2, TPU 1.6, Nylon 1.4, PA-CF 1.5. These are proposed shop rates, not measured production costs.
Design work, test fitting, hardware, shipping and tax are additional where needed. Multi-file sets may need several prints. Use actual sliced weight and time when available. Final pricing is confirmed in writing.
