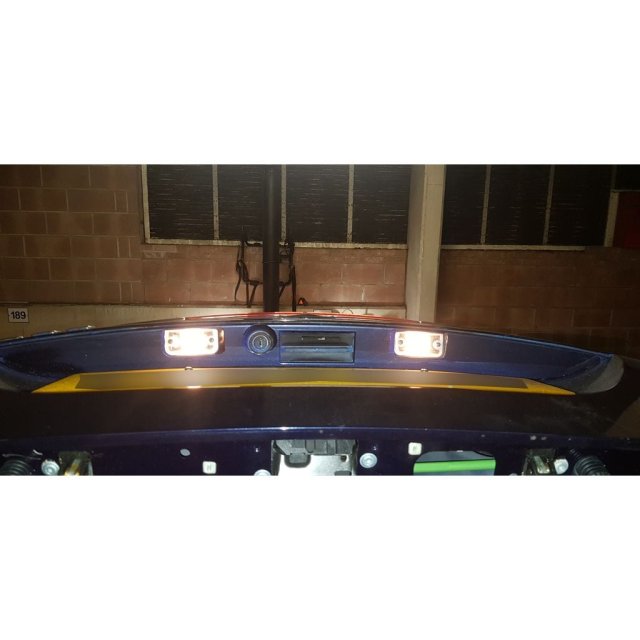

Designer source image. It may show an installed part, prototype or render; it is not an Orphaned Parts production sample.
Number Plate Light Lens
Number Plate Light Lens design listed for 2002–2009 Mercedes CLK. Listed category: lighting. Verify dimensions, fitment and material suitability before printing.
- Make
- Mercedes
- Model
- CLK
- Year range
- 2002–2009
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description
Includes a version with the legs to hold the lamp bulb itself and a version without the legs.
You must of course use a clear filament and PETG may be better than PLA due to it's slight increase in resistance to heat and weather.
I would also advise putting a little bit of silicone sealant around the rim of the lens to prevent water ingress.
I have included bottom sections with a thickness of 0.2mm to 0.8mm, depending on how much light you want to pass through vs how strong the part will be.
I advise 0.2mm or 0.4mm to make sure the light can get through correctly.
Of course you can use the pause at height function in CURA to make these two tone as I have.
