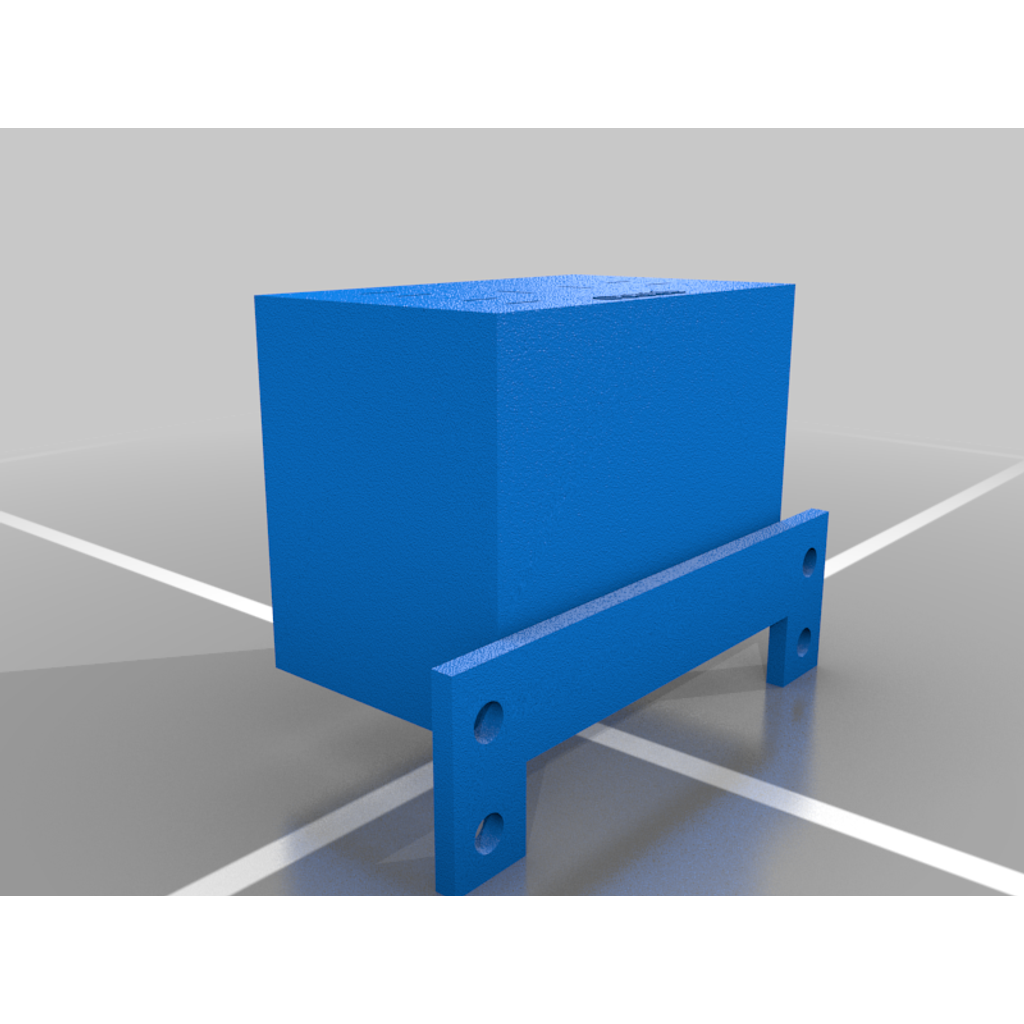

High Beam Latching Relay Housing
High Beam Latching Relay Housing design listed for 1974–1993 Volvo 240. Listed category: electrical. Verify dimensions, fitment and material suitability before printing.
- Make
- Volvo
- Model
- 240
- Year range
- 1974–1993
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description
After you print out the parts you will need to make and label some 2.25 inch long spade wires. Male for the bottom of the housing and female to attach to the new relays. Three of the wires will have one male end and 2 female ends. The locations are labeled on the actual print. Insert the male ends into the slots of the housing, being careful to get the labels correct. Secure the spades with a thin layer of 5 minutes epoxy.
Insert relays through the top cover and attach labeled female spade connectors to the appropriate spots.
Parts Used: (Ordered From FCP Euro)
Porsche Headlight Relay
DAN-989437B
Porsche BMW Multi Purpose Relay
BOS-0332019109
This design is based on Dave Barton's wiring diagram.
Your Done!
