Windshield Wiper Ball Joint Cap
Windshield Wiper Ball Joint Cap design listed for 1975 Datsun 120Y. Listed category: exterior. Verify dimensions, fitment and material suitability before printing.
- Make
- Datsun
- Model
- 120Y
- Year range
- 1975
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description
Car is a Datsun 120Y (B210) 1975 but I have a feeling that these caps might fit other models and could very well fit other (japanese) makes also.
I saw a photo of a 240Z wiper assembly and the cap seemed identical but the photo did not show dimennsion so there might be a difference.
I have uploaded a new version!

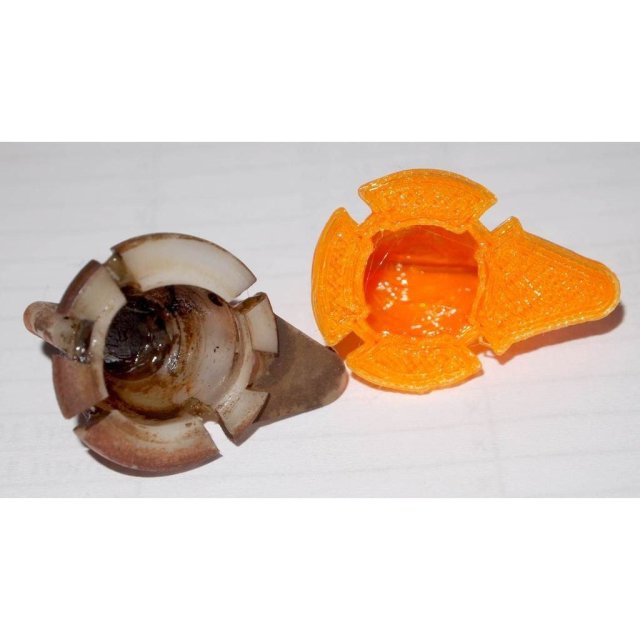

This thing was made in one evening and as the images show there are some differences to the original.
Rev002 contains a few changes to the previous file (which I took down):
-I have made the shell of the cap thinner to accomodate the ball better.
-The flange now has better cutouts
-The inside of the flange is filleted to accomodate the ball better
-I have NOT made the cutouts to the tab to accomodate turning the cap on the metal wiper mechanism arm (because of a performance issue on my old donkey driven computer). The new photos (blue hued) show that I have filed those cutouts by hand.
I had some issues when printing the top part of the cap since the new shell is thinner. playing with printer settings helped a little but did not make the problem fully go away.
The ball diameter of the wiper motor arm is 13mm and the inner diameter of the lower flange of the cap has been redimensioned to 13 mm also. This works because when the cap is attached to the ball and twister to position the metal arm squeezes the flanges and they are tight.
I have now installed this new cap (PLA version) and we shall see how long it lasts.
This thing was printed in PLA as a prototype but I'm sure that ABS would be the better option due to durability in outdoor conditions.
This thing is no longer a work in progress since the piece fits and works for now. I might update eventually when I manage to get the tap cutouts to work.
I cannot say if they will last the same 37 years that the originals have but then again I can always print new ones.
And so can you now.
