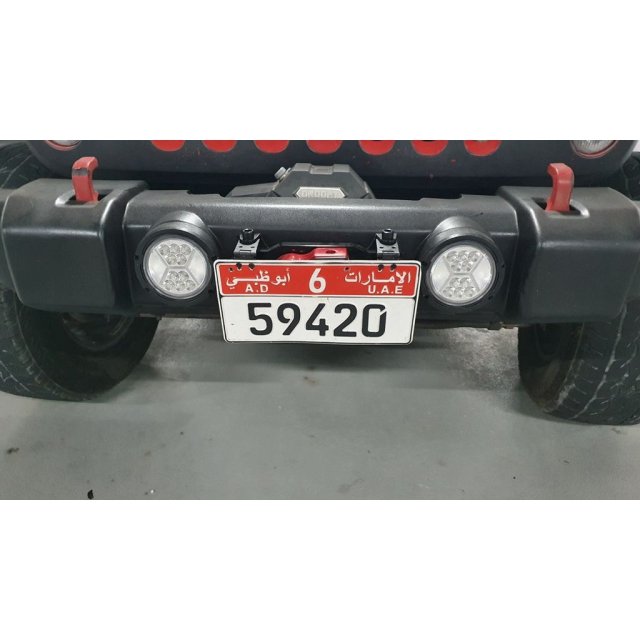

Designer source image. It may show an installed part, prototype or render; it is not an Orphaned Parts production sample.
Fog Light Surrounds
Fog Light Surrounds design listed for 2007–2018 Jeep Wrangler. Listed category: exterior. Verify dimensions, fitment and material suitability before printing.
- Make
- Jeep
- Model
- Wrangler
- Year range
- 2007–2018
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description
There are 2 parts, the inner and outer part.
First, hold the inner part over the existing hole trace the outline of it, and cut the hole to size, then slide the inner part in, you don't need to glue anything as there are screws that will hold it together when the outer ring is slid over the light.
The new light will be going inside and the outer ring will keep this light in place. if you have any questions let me know.
I used a 5" Fog light combo.
similar to this:
https://www.amazon.ae/LED-Moso-Waterproof-Driving-Warranty/dp/B07G91BY56/ref=sr_1_19?adgrpid=92969114572&dchild=1&gclid=CjwKCAjwrKr8BRB_EiwA7eFapsFWUdVc11Jrz8aVNcEJDgOSGZRP6lk0lGo3Y0vJNEYJMhCWA34suxoCyikQAvD_BwE&hvadid=409245238506&hvdev=c&hvlocphy=1000010&hvnetw=g&hvqmt=b&hvrand=11296311693359353677&hvtargid=kwd-306189938398&hydadcr=4398_1907357&keywords=offroad+lights+5+inch&qid=1603004602&sr=8-19&tag=googleaepcstd-21
Source description, under the recorded CC-BY-4.0 license.
Print instructions
Settings from the source; not independently tested by Orphaned Parts.
Print price estimates
Planning prices for one print, not a final quote. Defaults use a size allowance inferred from the part name, not a measured or sliced model. Filament suitability must be confirmed.
| Filament | USD / print | Application notes |
|---|---|---|
| PLA | $57.50 | Indoor prototypes; not a default material for hot vehicle interiors. |
| PETG | $59.00 | General-purpose candidate; heat and creep need review. |
| ASA | $69.50 | Candidate for UV exposure; verify temperature and geometry. |
| ABS | $66.00 | Enclosed printing; review application and dimensions. |
| TPU | $85.00 | Flexible designs only; not a substitute for rigid materials. |
| Nylon | $85.00 | Moisture, tolerances and application require review. |
| PA-CF | $99.00 | Filled nylon; abrasive filament and fit need review. |
Pricing assumptions and exclusions
USD: ($6 setup + $3 finishing + filament weight × assumed spool cost × 1.25 waste allowance + print hours × $2.50 × material time factor) ÷ 0.65. Rounded up to the next $0.50.
Assumed spool costs per kg: PLA $25, PETG $30, ASA $40, ABS $30, TPU $45, Nylon $65, PA-CF $95. Time factors: PLA/PETG 1.0, ASA/ABS 1.2, TPU 1.6, Nylon 1.4, PA-CF 1.5. These are proposed shop rates, not measured production costs.
Design work, test fitting, hardware, shipping and tax are additional where needed. Multi-file sets may need several prints. Use actual sliced weight and time when available. Final pricing is confirmed in writing.
