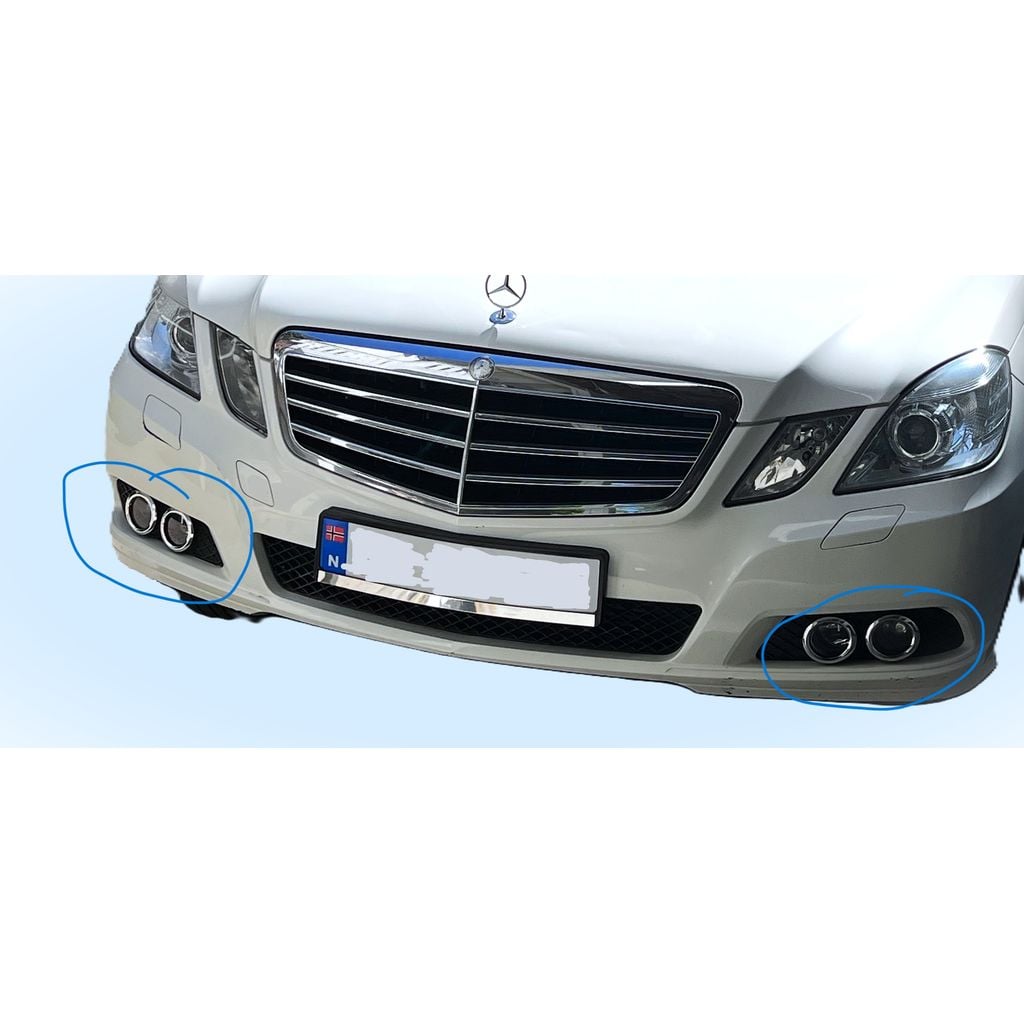

Designer source image. It may show an installed part, prototype or render; it is not an Orphaned Parts production sample.
Front Fog Lamp Trim
Front Fog Lamp Trim design listed for 2009–2016 Mercedes-Benz E-Class. Listed category: exterior. Verify dimensions, fitment and material suitability before printing.
- Make
- Mercedes-Benz
- Model
- E-Class
- Year range
- 2009–2016
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description
They are designed to be universal, meaning you don't have to print 4 different pieces, just this one file times 4.
I used my Ender 3 pro. I recommend ABS because of environmental factors like temperature. This is a more common plastic in automotive use. Also you can utilize ABS smoothing to make it look factory. Watch this video: https://www.youtube.com/watch?v=HXqzw9BpjSY
Otherwise use PETG as PLA will melt, warp and weaken in direct sunlight.
NB! Printing with ABS on Ender 3 pro requires some modifications to the print head shroud, so it doesn't blow cold air on to the print. Video: https://www.youtube.com/watch?v=wjSpVN19x7A
I recommend the part be printed PLA first to check fitment. Here I did 80mm/s and 0.3mm layer height.
Then I printed ABS slow @ <50mm/s.
Source description, under the recorded CC0-1.0 license.
Print instructions
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
Settings from the source; not independently tested by Orphaned Parts.
Print price estimates
Planning prices for one print, not a final quote. Defaults use a size allowance inferred from the part name, not a measured or sliced model. Filament suitability must be confirmed.
| Filament | USD / print | Application notes |
|---|---|---|
| PLA | $28.50 | Indoor prototypes; not a default material for hot vehicle interiors. |
| PETG | $29.00 | General-purpose candidate; heat and creep need review. |
| ASA | $32.50 | Candidate for UV exposure; verify temperature and geometry. |
| ABS | $31.50 | Enclosed printing; review application and dimensions. |
| TPU | $37.50 | Flexible designs only; not a substitute for rigid materials. |
| Nylon | $37.50 | Moisture, tolerances and application require review. |
| PA-CF | $42.50 | Filled nylon; abrasive filament and fit need review. |
Pricing assumptions and exclusions
USD: ($6 setup + $3 finishing + filament weight × assumed spool cost × 1.25 waste allowance + print hours × $2.50 × material time factor) ÷ 0.65. Rounded up to the next $0.50.
Assumed spool costs per kg: PLA $25, PETG $30, ASA $40, ABS $30, TPU $45, Nylon $65, PA-CF $95. Time factors: PLA/PETG 1.0, ASA/ABS 1.2, TPU 1.6, Nylon 1.4, PA-CF 1.5. These are proposed shop rates, not measured production costs.
Design work, test fitting, hardware, shipping and tax are additional where needed. Multi-file sets may need several prints. Use actual sliced weight and time when available. Final pricing is confirmed in writing.
