Console Door Back Plate
Console Door Back Plate design listed for 2009 Dodge Challenger. Listed category: interior. Verify dimensions, fitment and material suitability before printing.
- Make
- Dodge
- Model
- Challenger
- Year range
- 2009
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description

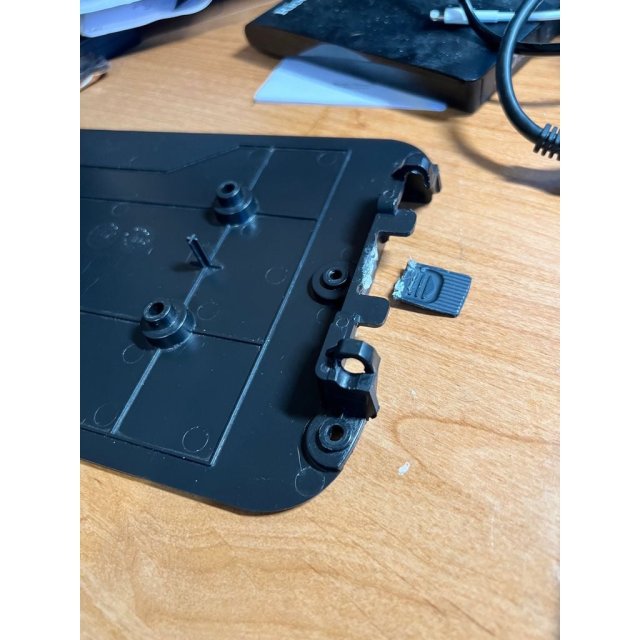

This is for a 2009 Challenger RT center console door back plate. The tab broke off the original and when I went to Mopar for a replacement, it was $302. They don’t sell just the plate and you have to buy the whole arm-rest, still expensive for the whole thing. So, I decided to 3D print the plate. The real issue was with the mating to the handle. The handle has a little barb on one side at each end that you need to account for.
For the 2 - piece version, there is the main plate and the tab piece separate. The plate can be printed without support. The tab piece should be printed on its side (270degrees) and just support the bottom side of tab.
I printed this during design trial and error in white PLA to easily see everything. My friends at work say you should print this in ABS if you live in a high temperature area – I live in Albuquerque, New Mexico and it can get really hot inside a closed car (always use a front window sun deflector).
This part lasted well over ten years before it broke but I decided to print in two pieces with the center screw hole and tab as separate piece. So, it it ever breaks again, then I only have to print and replace that piece.
I include a single piece version if you want to go that way. If you print the single piece then you will need support for the tab.
Just for fun I placed the Mopar part number on the inside in case anyone has more money than they know what to do with and wants to check out that option.
Source description, under the recorded CC-BY-SA-4.0 license.
Print instructions
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
Settings from the source; not independently tested by Orphaned Parts.
Print price estimates
Planning prices for one print, not a final quote. Defaults use a size allowance inferred from the part name, not a measured or sliced model. Filament suitability must be confirmed.
| Filament | USD / print | Application notes |
|---|---|---|
| PLA | $42.50 | Indoor prototypes; not a default material for hot vehicle interiors. |
| PETG | $43.50 | General-purpose candidate; heat and creep need review. |
| ASA | $50.00 | Candidate for UV exposure; verify temperature and geometry. |
| ABS | $48.00 | Enclosed printing; review application and dimensions. |
| TPU | $60.50 | Flexible designs only; not a substitute for rigid materials. |
| Nylon | $60.00 | Moisture, tolerances and application require review. |
| PA-CF | $69.00 | Filled nylon; abrasive filament and fit need review. |
Pricing assumptions and exclusions
USD: ($6 setup + $3 finishing + filament weight × assumed spool cost × 1.25 waste allowance + print hours × $2.50 × material time factor) ÷ 0.65. Rounded up to the next $0.50.
Assumed spool costs per kg: PLA $25, PETG $30, ASA $40, ABS $30, TPU $45, Nylon $65, PA-CF $95. Time factors: PLA/PETG 1.0, ASA/ABS 1.2, TPU 1.6, Nylon 1.4, PA-CF 1.5. These are proposed shop rates, not measured production costs.
Design work, test fitting, hardware, shipping and tax are additional where needed. Multi-file sets may need several prints. Use actual sliced weight and time when available. Final pricing is confirmed in writing.
