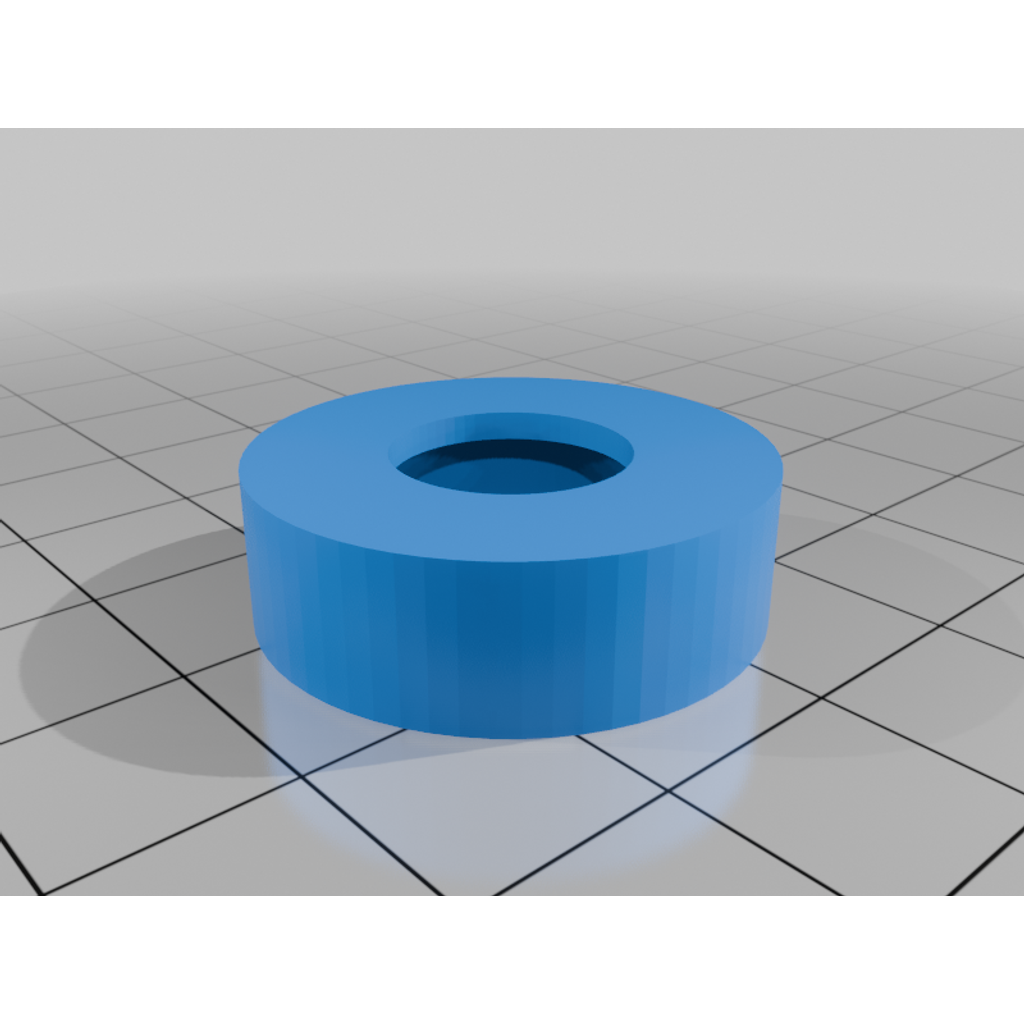

Designer source image. It may show an installed part, prototype or render; it is not an Orphaned Parts production sample.
Engine Stand Spacers
Engine Stand Spacers design listed for 1989–2005 Mazda Miata. Listed category: specialty-tools. Verify dimensions, fitment and material suitability before printing.
- Make
- Mazda
- Model
- Miata
- Year range
- 1989–2005
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
This listing is not offered for sale. Commercial permission or application suitability needs review.
Description
100% infill. PETG. Lots of top layers, bottom layers, and wall thickness. Use some washers to help spread the load. Be careful and don't drop your engine. This is plastic after all.
Entire spacer thickness is 8mm.
Spacers for the dowel pins are 20mm holes that are 6.5mm deep (for a 19mm pin that's 6.25mm long... expect a little bit of squish and deformation when everything is torqued down).
Holes for the bolts are 12mm.
Use a stack of washers for the non-dowel bolts to keep everything even.
Yes i'm using the head bolts to mount the engine to the stand. They are the right length and thread for this.
