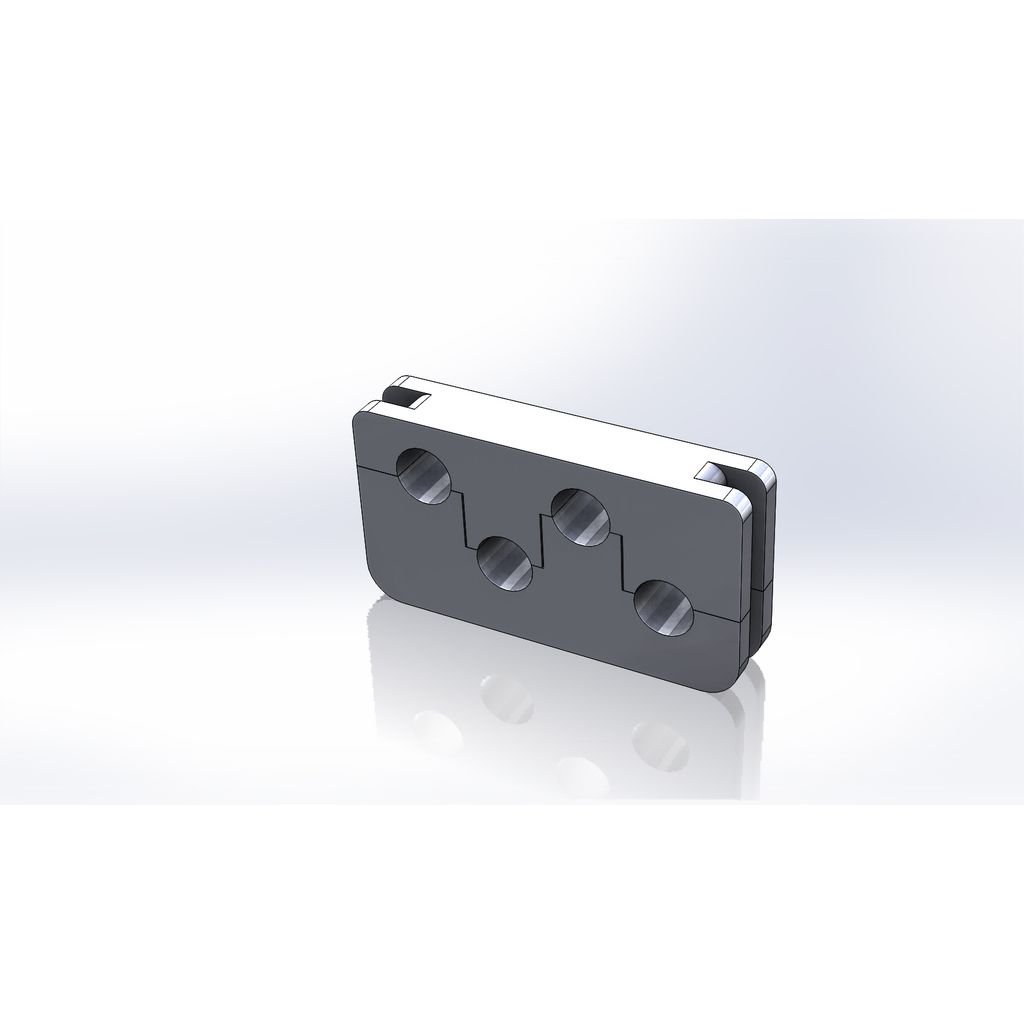

Ignition Cable Organizer
Ignition Cable Organizer design listed for 1995–2004 Volvo V40. Listed category: engine. Verify dimensions, fitment and material suitability before printing.
- Make
- Volvo
- Model
- V40
- Year range
- 1995–2004
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
This listing is not offered for sale. Commercial permission or application suitability needs review.
Description
Este pasacables fue diseñado para el compartimiento del motor del Volvo V40 MK1 con motor B4204S, pensado para organizar cables de bobina de 8 mm de diámetro, más gruesos que los originales.
Es una excelente forma de mantener los cables ordenados y protegidos del calor o el movimiento de otras piezas del motor.
Debe imprimirse en ABS (u otro material resistente al calor) para asegurar durabilidad en el vano motor.
🎁 Si este diseño te fue útil, podés invitarme una cerveza 🍺 en este link: https://buymeacoffee.com/carlosheil4
------
Ignition Cable Organizer – Volvo V40 MK1 (B4204S Engine) – 8mm Cables
This cable organizer was designed for the Volvo V40 MK1 with B4204S engine, to help route 8 mm ignition cables, which are thicker than the original wires.
It’s a great way to keep cables tidy and protected from heat or engine movement.
Must be printed in ABS (or other heat-resistant filament) to withstand the engine bay environment.
🎁 If you found this design helpful, you can buy me a beer 🍺 here: https://buymeacoffee.com/carlosheil4
Source description, under the recorded CC-BY-SA-4.0 license.
Print instructions
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
Settings from the source; not independently tested by Orphaned Parts.
Print price estimates
Planning prices for one print, not a final quote. Defaults use a size allowance inferred from the part name, not a measured or sliced model. Filament suitability must be confirmed.
| Filament | USD / print | Application notes |
|---|---|---|
| PLA | $28.50 | Indoor prototypes; not a default material for hot vehicle interiors. |
| PETG | $29.00 | General-purpose candidate; heat and creep need review. |
| ASA | $32.50 | Candidate for UV exposure; verify temperature and geometry. |
| ABS | $31.50 | Enclosed printing; review application and dimensions. |
| TPU | $37.50 | Flexible designs only; not a substitute for rigid materials. |
| Nylon | $37.50 | Moisture, tolerances and application require review. |
| PA-CF | $42.50 | Filled nylon; abrasive filament and fit need review. |
Cost examples only. This design is not offered for sale; permission or specialist application review is required.
Pricing assumptions and exclusions
USD: ($6 setup + $3 finishing + filament weight × assumed spool cost × 1.25 waste allowance + print hours × $2.50 × material time factor) ÷ 0.65. Rounded up to the next $0.50.
Assumed spool costs per kg: PLA $25, PETG $30, ASA $40, ABS $30, TPU $45, Nylon $65, PA-CF $95. Time factors: PLA/PETG 1.0, ASA/ABS 1.2, TPU 1.6, Nylon 1.4, PA-CF 1.5. These are proposed shop rates, not measured production costs.
Design work, test fitting, hardware, shipping and tax are additional where needed. Multi-file sets may need several prints. Use actual sliced weight and time when available. Final pricing is confirmed in writing.
