Reverse Light 9005 Bulb Adapter
Reverse Light 9005 Bulb Adapter design listed for 2003 Chevrolet Avalanche. Listed category: lighting. Verify dimensions, fitment and material suitability before printing.
- Make
- Chevrolet
- Model
- Avalanche
- Year range
- 2003
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description

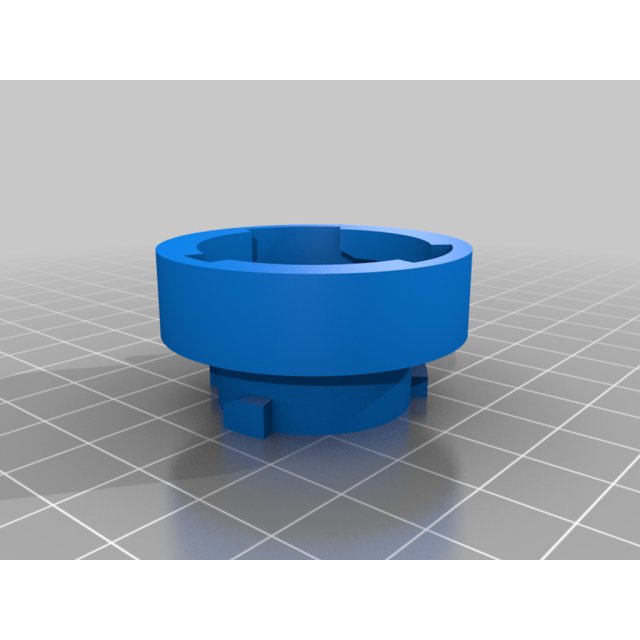

Created an adapter to fit 9005 bulbs for the reverse lights on my 2003 Chevy Avalanche. The gasket from the factory bulb holder should be fitted on the new adapter. The adapter should create a dust and water resistive seal. I built the 9005 slots based on the led bulbs I ordered. The mounting tabs on 9005 bulbs do not seem to be modified for other 9005 bulbs.
I used cheap 9005 led bulbs from Aliexpress. NO CANBUS + 6000k + 9005/HB3
https://www.aliexpress.com/item/4000134087947.html
For wiring an adapter harness can be made from a 9005 socket and 3157 male adapter. Links below:
https://www.amazon.com/dp/B0859Z2T9D
https://www.amazon.com/Adapter-Wiring-Harness-Headlight-Retrofit/dp/B076FMCR2K
I would recommend printing in PETG or ABS for better heat resistance especially if you live in a hot climate.
