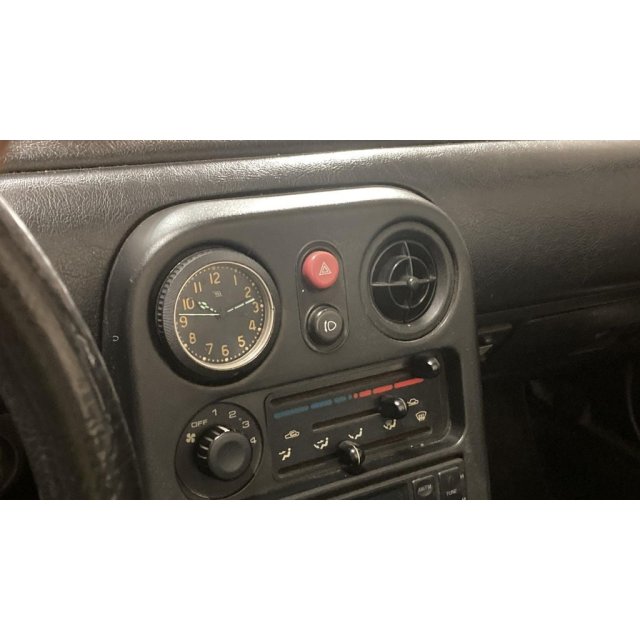

Designer source image. It may show an installed part, prototype or render; it is not an Orphaned Parts production sample.
AVRM tank clock mount
AVRM tank clock mount design listed for 1990–2005 Mazda MX-5 Miata. Listed category: interior. Verify dimensions, fitment and material suitability before printing.
- Make
- Mazda
- Model
- MX-5 Miata
- Year range
- 1990–2005
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description
The clock is roughly 60mm in diameter, so it's a good match to NA/NB eyeball vents. It is a mechanical clock that is wound by rotating the bezel. To set it, you pull out the bezel and twist. Given that it was used in tanks and aircraft, it is unlikely to have problems with vibrations. They are readily available on eBay.
I have two sample clocks, they are very slightly different in diameter. The uploaded model is for a clock that measures 60mm on the housing. My other is 59.5mm. Since the clock is a press fit into the printed housing, some fine-tuning may be required - I will be checking another couple of clocks to confirm fitment and may upload more models if necessary. Tolerances have to be fairly tight for this to work. Fusion360 file is included.

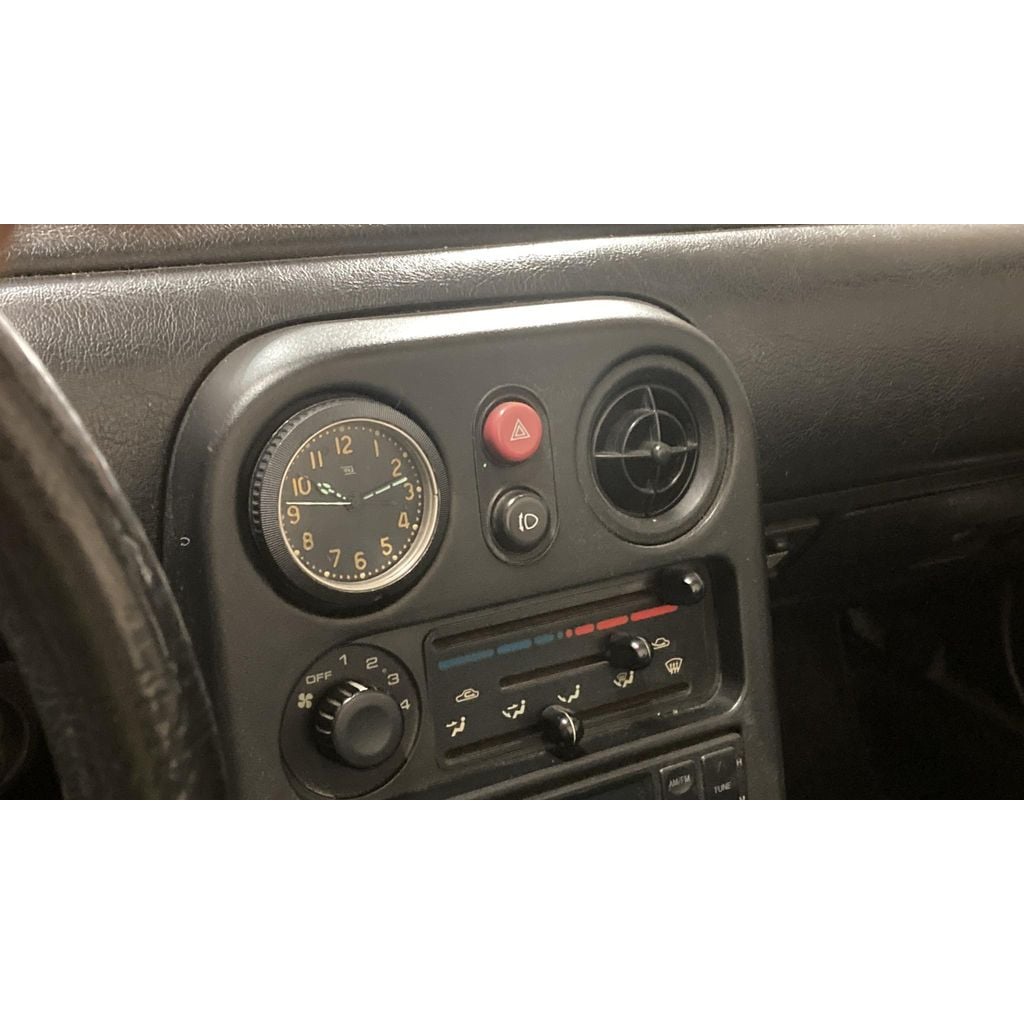

Installation is simply a matter of pulling out out the vent and sticking the clock and adapter in place. Fits both the center and side vents. I would recommend test-fitting without the clock in place in case you have trouble getting the adapter out. The clock protrudes slightly from the vent so the bezel can be grasped and rotated.
Mine is printed in ABS on an Ender3.
Source description, under the recorded CC-BY-4.0 license.
Print instructions
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
Settings from the source; not independently tested by Orphaned Parts.
Print price estimates
Planning prices for one print, not a final quote. Defaults use a size allowance inferred from the part name, not a measured or sliced model. Filament suitability must be confirmed.
| Filament | USD / print | Application notes |
|---|---|---|
| PLA | $28.50 | Indoor prototypes; not a default material for hot vehicle interiors. |
| PETG | $29.00 | General-purpose candidate; heat and creep need review. |
| ASA | $32.50 | Candidate for UV exposure; verify temperature and geometry. |
| ABS | $31.50 | Enclosed printing; review application and dimensions. |
| TPU | $37.50 | Flexible designs only; not a substitute for rigid materials. |
| Nylon | $37.50 | Moisture, tolerances and application require review. |
| PA-CF | $42.50 | Filled nylon; abrasive filament and fit need review. |
Pricing assumptions and exclusions
USD: ($6 setup + $3 finishing + filament weight × assumed spool cost × 1.25 waste allowance + print hours × $2.50 × material time factor) ÷ 0.65. Rounded up to the next $0.50.
Assumed spool costs per kg: PLA $25, PETG $30, ASA $40, ABS $30, TPU $45, Nylon $65, PA-CF $95. Time factors: PLA/PETG 1.0, ASA/ABS 1.2, TPU 1.6, Nylon 1.4, PA-CF 1.5. These are proposed shop rates, not measured production costs.
Design work, test fitting, hardware, shipping and tax are additional where needed. Multi-file sets may need several prints. Use actual sliced weight and time when available. Final pricing is confirmed in writing.
