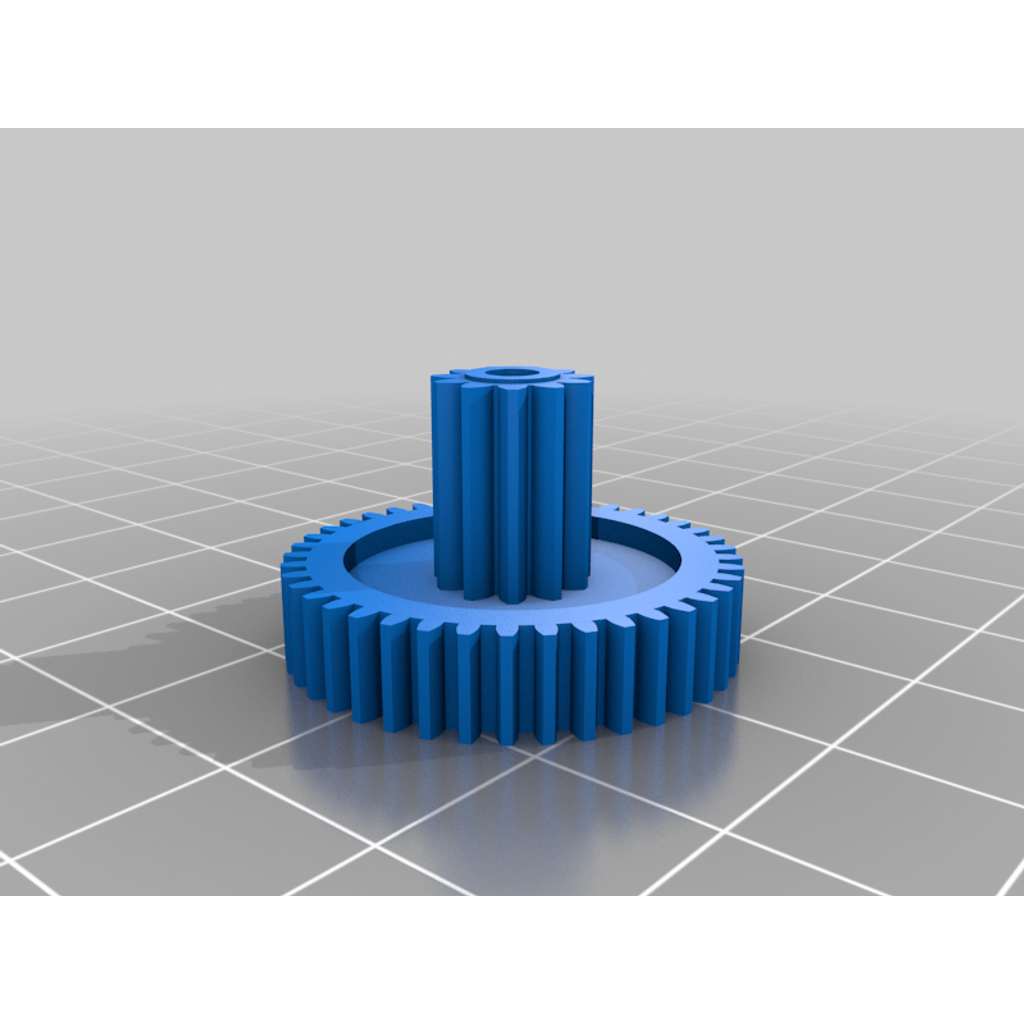

Blend Door Actuator Gear
Blend Door Actuator Gear design listed for 2006–2013 Chevrolet Impala. Listed category: interior. Verify dimensions, fitment and material suitability before printing.
- Make
- Chevrolet
- Model
- Impala
- Year range
- 2006–2013
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description
A failed actuator will cause a relentless clicking noise that lasts for a couple of minutes when the car is turned on or when the air temperature or air source (fresh air or recirc) is changed.
This part is for the central idler gear only, since that's what was failed in both of my actuators.
