Headlight Projector Adapter
Headlight Projector Adapter design listed for 2007–2011 Honda CR-V. Listed category: lighting. Verify dimensions, fitment and material suitability before printing.
- Make
- Honda
- Model
- CR-V
- Year range
- 2007–2011
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description

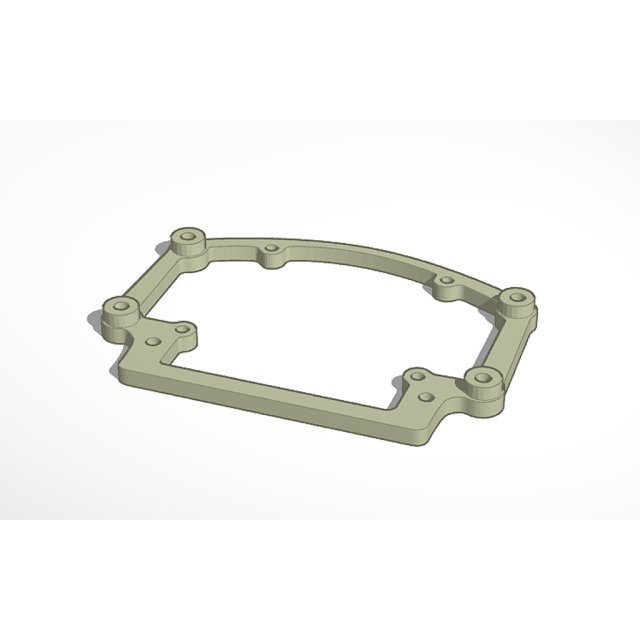

This is a custom-designed bracket/adapter to facilitate a projector retrofit in the third-generation Honda CR-V (2007-2011) headlights.
The adapter allows you to replace the bulky OEM projector with modern, universal-mount aftermarket projector units (often sold on platforms like AliExpress) that follow standards like Hella/Koito. This is an essential component for upgrading your CR-V’s light output to modern standards (e.g., Bi-LED or high-performance Bi-Xenon).
Compatibility Note (Crucial!)
COMPATIBLE WITH: Honda CR-V models featuring the global/Rest of World (RoW) headlight assembly. These are typically the headlamps that originally came with a projector (or a specific projector mounting pattern).
INCOMPATIBLE WITH: Honda CR-V models from the US Domestic Market (USDM). The USDM versions of this generation typically utilize a reflector-only low beam assembly, which has a distinct internal mounting structure where this adapter will not fit.
Source description, under the recorded CC-BY-SA-4.0 license.
Print instructions
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
Settings from the source; not independently tested by Orphaned Parts.
Print price estimates
Planning prices for one print, not a final quote. Defaults use a size allowance inferred from the part name, not a measured or sliced model. Filament suitability must be confirmed.
| Filament | USD / print | Application notes |
|---|---|---|
| PLA | $28.50 | Indoor prototypes; not a default material for hot vehicle interiors. |
| PETG | $29.00 | General-purpose candidate; heat and creep need review. |
| ASA | $32.50 | Candidate for UV exposure; verify temperature and geometry. |
| ABS | $31.50 | Enclosed printing; review application and dimensions. |
| TPU | $37.50 | Flexible designs only; not a substitute for rigid materials. |
| Nylon | $37.50 | Moisture, tolerances and application require review. |
| PA-CF | $42.50 | Filled nylon; abrasive filament and fit need review. |
Pricing assumptions and exclusions
USD: ($6 setup + $3 finishing + filament weight × assumed spool cost × 1.25 waste allowance + print hours × $2.50 × material time factor) ÷ 0.65. Rounded up to the next $0.50.
Assumed spool costs per kg: PLA $25, PETG $30, ASA $40, ABS $30, TPU $45, Nylon $65, PA-CF $95. Time factors: PLA/PETG 1.0, ASA/ABS 1.2, TPU 1.6, Nylon 1.4, PA-CF 1.5. These are proposed shop rates, not measured production costs.
Design work, test fitting, hardware, shipping and tax are additional where needed. Multi-file sets may need several prints. Use actual sliced weight and time when available. Final pricing is confirmed in writing.
