Camera Display Mount
Camera Display Mount design listed for 2019 RAM 1500. Listed category: interior. Verify dimensions, fitment and material suitability before printing.
- Make
- RAM
- Model
- 1500
- Year range
- 2019
- Submodel
- Warlock
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description
--------------------------------------------------------------

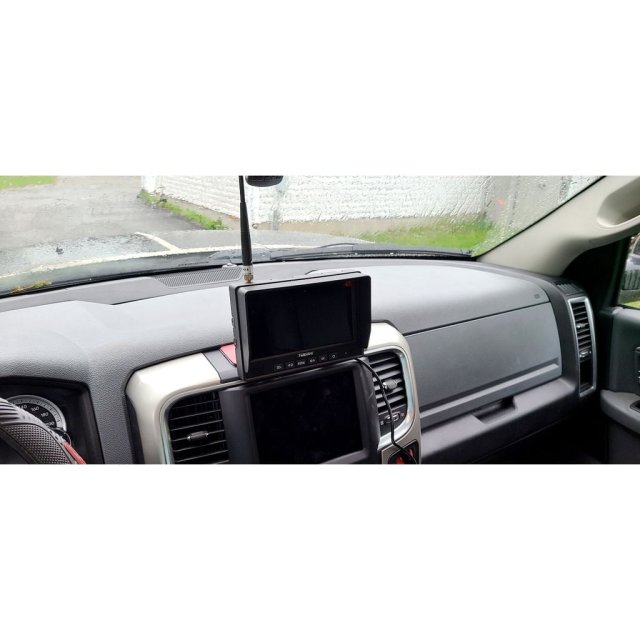

This is a mount for a Haloview MC7108 wireless backup/observation camera. It uses the existing screws that hold the dash bezel in place on a 2019 Dodge Ram 1500 (Warlock).
*Note: This mount uses part of dashboard stick-on mount that originally came with the camera.
To install:
- From the Haloview sticky mount, remove the base piece with the sticker, by removing the 2 small Phillips head screws under the adhesive.
- Attach the piece from the Haloview mount onto the printed mount using the original screws.
- Remove the 2 screws in the pen/sunglasses cup above the center display screen.
- Place the printed mount in the cup and reinstall the screws (do not over tighten).
This may work for different camera displays (if they use the same sticky mount) or various trucks that have the same dashboard cup, I have no way of testing.
Must use a heat resistant filament (e.g. PETG, ABS) to avoid melting, as this will likely be in direct sunlight within a hot vehicle.
Source description, under the recorded CC-BY-4.0 license.
Print instructions
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
Settings from the source; not independently tested by Orphaned Parts.
Print price estimates
Planning prices for one print, not a final quote. Defaults use a size allowance inferred from the part name, not a measured or sliced model. Filament suitability must be confirmed.
| Filament | USD / print | Application notes |
|---|---|---|
| PLA | $28.50 | Indoor prototypes; not a default material for hot vehicle interiors. |
| PETG | $29.00 | General-purpose candidate; heat and creep need review. |
| ASA | $32.50 | Candidate for UV exposure; verify temperature and geometry. |
| ABS | $31.50 | Enclosed printing; review application and dimensions. |
| TPU | $37.50 | Flexible designs only; not a substitute for rigid materials. |
| Nylon | $37.50 | Moisture, tolerances and application require review. |
| PA-CF | $42.50 | Filled nylon; abrasive filament and fit need review. |
Pricing assumptions and exclusions
USD: ($6 setup + $3 finishing + filament weight × assumed spool cost × 1.25 waste allowance + print hours × $2.50 × material time factor) ÷ 0.65. Rounded up to the next $0.50.
Assumed spool costs per kg: PLA $25, PETG $30, ASA $40, ABS $30, TPU $45, Nylon $65, PA-CF $95. Time factors: PLA/PETG 1.0, ASA/ABS 1.2, TPU 1.6, Nylon 1.4, PA-CF 1.5. These are proposed shop rates, not measured production costs.
Design work, test fitting, hardware, shipping and tax are additional where needed. Multi-file sets may need several prints. Use actual sliced weight and time when available. Final pricing is confirmed in writing.
