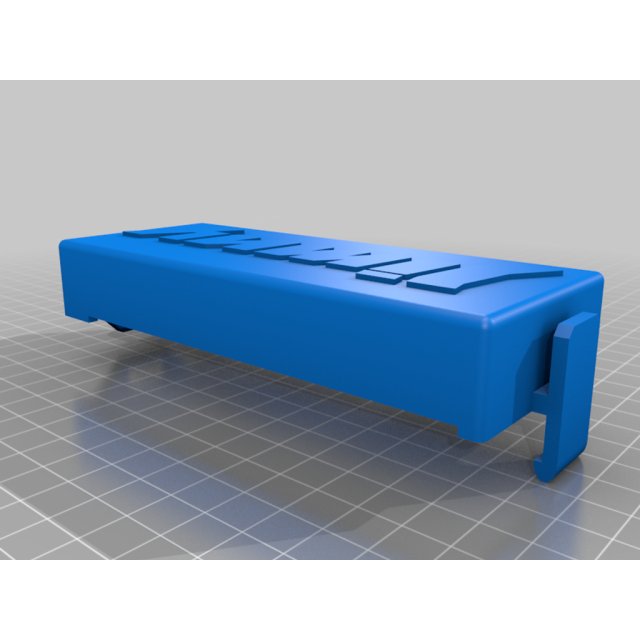

Designer source image. It may show an installed part, prototype or render; it is not an Orphaned Parts production sample.
Fuse/Relay Box
Fuse/Relay Box design listed for 2018 Suzuki Jimny. Listed category: electrical. Verify dimensions, fitment and material suitability before printing.
- Make
- Suzuki
- Model
- Jimny
- Year range
- 2018
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description
made to go in the corner of the engine compartment in a Suzuki Jimny (2018-)
This is the box that was used in the video: "Mounting Extra LED Lights on my Jimny!" That is found on the TeamArmyTrucks YouTube channel.
(The design has had slight changes since the video)
It consists of two files.
One for the Box itself.
And one for the lid.
Source description, under the recorded CC-BY-4.0 license.
Print instructions
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
Settings from the source; not independently tested by Orphaned Parts.
