Sunvisor Clip Replacment part
Sunvisor Clip Replacment part design listed for 1996 Audi A3. Listed category: interior. Verify dimensions, fitment and material suitability before printing.
- Make
- Audi
- Model
- A3
- Year range
- 1996
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description
It works with most AUDI cars !!!

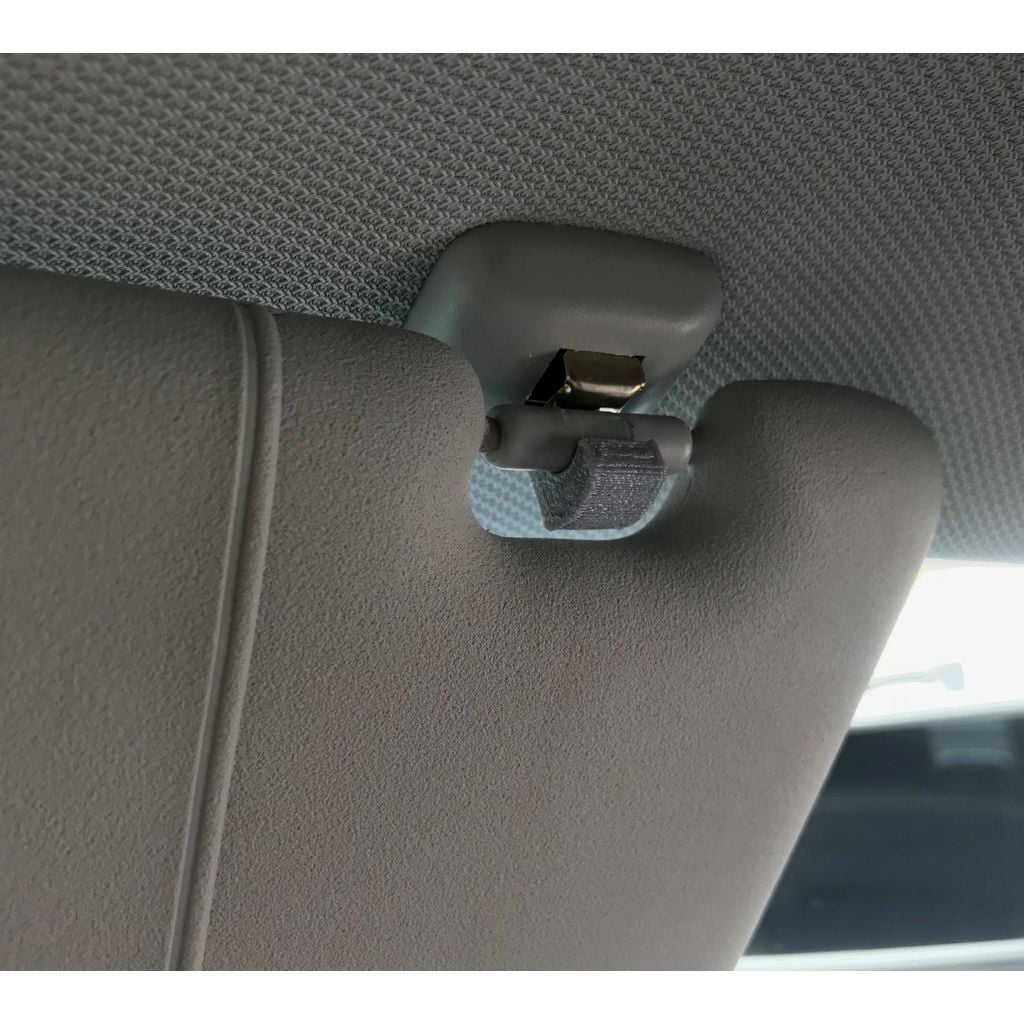

I designed a sunvisor clip for my Audi A3 as the clip was broken (see pictures). The printed part works exactly as the original one. You have to reuse the grey case and the small iron part.
It is very easy to change, just follow theses steps according to the pictures :
1) Print the stl file as it is, hook looking up and with support in contact with the bed. While it is printing, remove your broken sun visor clip thanks to slotted screwdriver.
2) Take printed part and remove supports
3) Take the iron part of your broken sunvisor clip to mount it on the printed clip.
4) Put the printed part on your car (no glue, just press it)
5) Add the grey case and that's it, your ready to go.
This replacement clip should work with the following cars :
A1 S1, A3 S3, A4 S4, B6 B7 B8, A5 S5, Q3 Q5 and maybe more...
Hope it will be usefull for you, and helps you saving time !
Thank you for liking it, collecting it, post a comment and a make :D
Source description, under the recorded CC-BY-4.0 license.
Print instructions
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
Settings from the source; not independently tested by Orphaned Parts.
Print price estimates
Planning prices for one print, not a final quote. Defaults use a size allowance inferred from the part name, not a measured or sliced model. Filament suitability must be confirmed.
| Filament | USD / print | Application notes |
|---|---|---|
| PLA | $17.50 | Indoor prototypes; not a default material for hot vehicle interiors. |
| PETG | $18.00 | General-purpose candidate; heat and creep need review. |
| ASA | $18.50 | Candidate for UV exposure; verify temperature and geometry. |
| ABS | $18.50 | Enclosed printing; review application and dimensions. |
| TPU | $20.00 | Flexible designs only; not a substitute for rigid materials. |
| Nylon | $20.00 | Moisture, tolerances and application require review. |
| PA-CF | $21.00 | Filled nylon; abrasive filament and fit need review. |
Pricing assumptions and exclusions
USD: ($6 setup + $3 finishing + filament weight × assumed spool cost × 1.25 waste allowance + print hours × $2.50 × material time factor) ÷ 0.65. Rounded up to the next $0.50.
Assumed spool costs per kg: PLA $25, PETG $30, ASA $40, ABS $30, TPU $45, Nylon $65, PA-CF $95. Time factors: PLA/PETG 1.0, ASA/ABS 1.2, TPU 1.6, Nylon 1.4, PA-CF 1.5. These are proposed shop rates, not measured production costs.
Design work, test fitting, hardware, shipping and tax are additional where needed. Multi-file sets may need several prints. Use actual sliced weight and time when available. Final pricing is confirmed in writing.
