DIN Gauge Plate w switches
DIN Gauge Plate w switches design listed for 1989 Mazda MX-5 Miata. Listed category: interior. Verify dimensions, fitment and material suitability before printing.
- Make
- Mazda
- Model
- MX-5 Miata
- Year range
- 1989
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description

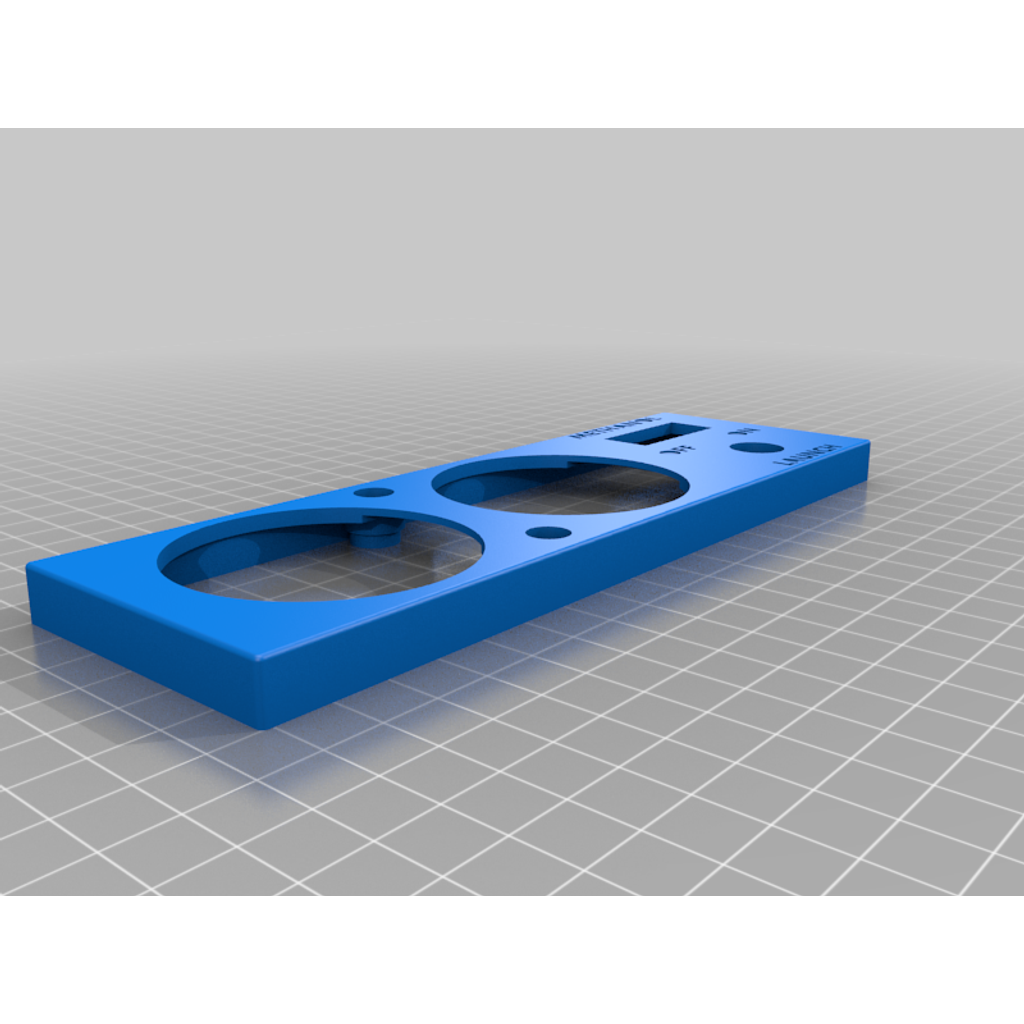

Dimensions are 182mm x 60mm x 10mm with a 3mm shell thickness.
Gauge holes are nominally 52mm diameter
Cutout for square switch (methanol) is 30mm x 12mm
Hole for Launch control switch is 12.5mm diameter
The 2 holes above and below the bridge of material between the 2 52mm gauge cutouts are designed to fit M4 socket head cap screw hardware, and the interface for making the plate stay installed in your car is meant to attach to these bolts. You'll have to create your own mounting solution. Their center positions are 67mm from the left edge and 8mm from the top or bottom respectively.
Blank plates are snap fit. Worked for me printed in ABS. (0.2mm layer height, 20% honeycomb infill, no supports, no rafts)
This was meant to be a perfect solution for me, so I'd be surprised if it was exactly what you are looking for (2 gauge and 2 mis-matched toggle switch designs, but hey, I was asked to share the STL so I figured I'd start my own Thingiverse account and begin giving back to this wonderful open source inspired community.
The recessed text on the face is barely legible but it served as a lettering guide for me to use white paint.
The switches came already installed on my car but here are links ti similar products that should work in this plate.
for the round hole
https://www.delcity.net/store/LED-Duckbill-Toggle-Switches/p_791291.h_819174.r_IF1003?mkwid=&crid=410099918330&mp_kw=&mp_mt=&gclid=CjwKCAjwqdn1BRBREiwAEbZcRwPrRESgt5IZlbYiC9sbDidlVfbN36zuh1gC9EX0wfuR9N4xY3zPARoCgRUQAvD_BwE
for the square hole
https://www.delcity.net/store/Illuminated-Appliance-Rocker-Switches/p_788660.h_788665.r_IF1003
If this helps you, I'd love to see pictures of the install.
Source description, under the recorded CC0-1.0 license.
Print instructions
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
Settings from the source; not independently tested by Orphaned Parts.
