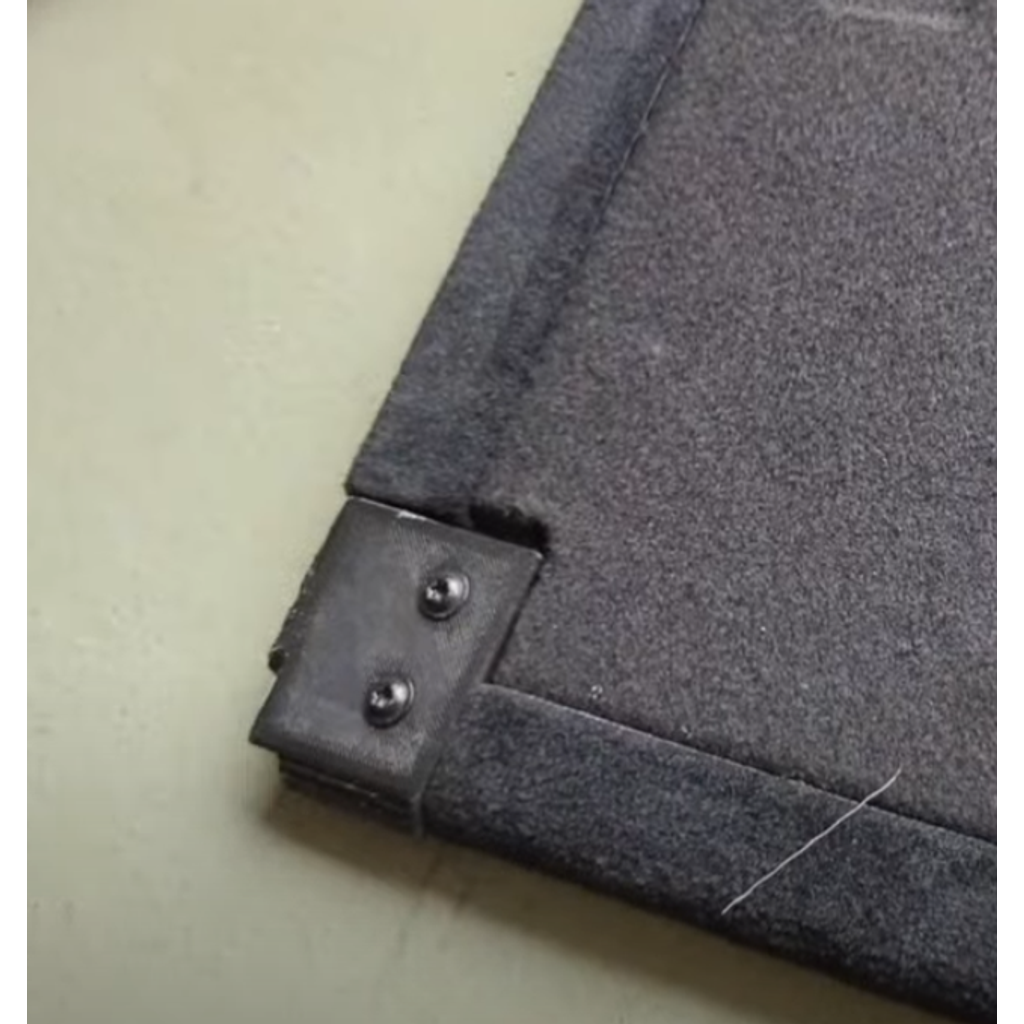

Designer source image. It may show an installed part, prototype or render; it is not an Orphaned Parts production sample.
Trunk Luggage Compartment Plate Hinge
Trunk Luggage Compartment Plate Hinge design listed for 2016–2023 Mercedes-Benz E-Class. Listed category: interior. Verify dimensions, fitment and material suitability before printing.
- Make
- Mercedes-Benz
- Model
- E-Class
- Year range
- 2016–2023
- Submodel
- Wagon
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description
Print with Automotive temperatures friendly filament like ABS, ASA, PETG.
Supports will be required due to the part geometry. To make it strong give it more walls and top/bottom layers and good infil.
I printed mine 4 walls, 5 top and 5 bottom layers with 50% infil. Seems plenty strong. The part is anyway designed to be more beefy than the original one which is only 2mm strong ABS plastic. To print the other side use mirror function in your slicer.
Part number is Mercedes A2136846900
* Update 2025-11-30 - Updated to be better fit and prevent cracking because of the wrong tolerances. Now fits nicely without any resistance when closing leading to cracking the part. I also made a slot for screws so there's a tolerance when fitting the part to the car.
Source description, under the recorded CC-BY-SA-4.0 license.
Print instructions
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
Settings from the source; not independently tested by Orphaned Parts.
