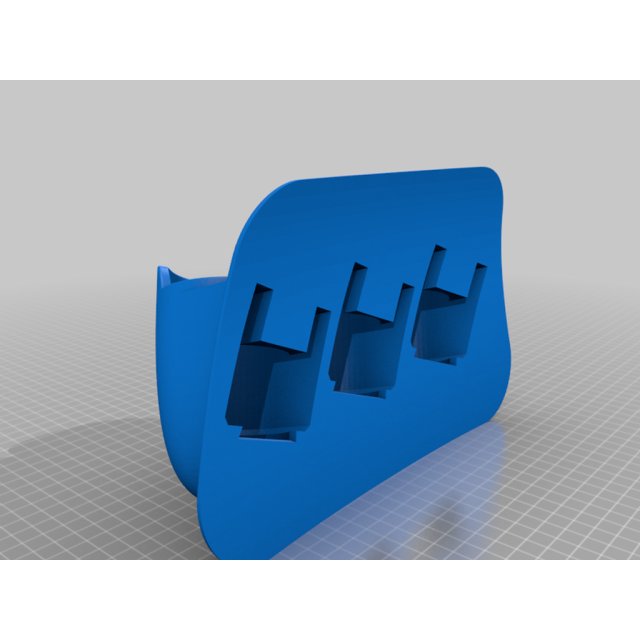

Designer source image. It may show an installed part, prototype or render; it is not an Orphaned Parts production sample.
Gauge Pod
Gauge Pod design listed for 2003–2008 Mazda RX-8. Listed category: interior. Verify dimensions, fitment and material suitability before printing.
- Make
- Mazda
- Model
- RX-8
- Year range
- 2003–2008
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description
-The gauge holes are 52.25mm in diameter
-Took ~54 hours to print
I highly recommend using a temperature resistant filament, as it gets hot in cars during the summer. Mine has held up fine for the few months it has been installed, but here it is winter.
The pod is designed so the gauges perfectly face the driver (Left hand drive, if needed I can upload RHD version). I am 5'10", and I can see my reflection in them. This makes it so there is no awkward reflection from the sun, which is really nice.
I can post more info if needed.
As posted on Reddit: https://www.reddit.com/r/3Dprinting/comments/r60lk9/designed_and_printed_a_custom_gauge_pod/?utm_source=share&utm_medium=web2x&context=3
Source description, under the recorded CC-BY-4.0 license.
Print instructions
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
Settings from the source; not independently tested by Orphaned Parts.
Print price estimates
Planning prices for one print, not a final quote. Defaults use a size allowance inferred from the part name, not a measured or sliced model. Filament suitability must be confirmed.
| Filament | USD / print | Application notes |
|---|---|---|
| PLA | $28.50 | Indoor prototypes; not a default material for hot vehicle interiors. |
| PETG | $29.00 | General-purpose candidate; heat and creep need review. |
| ASA | $32.50 | Candidate for UV exposure; verify temperature and geometry. |
| ABS | $31.50 | Enclosed printing; review application and dimensions. |
| TPU | $37.50 | Flexible designs only; not a substitute for rigid materials. |
| Nylon | $37.50 | Moisture, tolerances and application require review. |
| PA-CF | $42.50 | Filled nylon; abrasive filament and fit need review. |
Pricing assumptions and exclusions
USD: ($6 setup + $3 finishing + filament weight × assumed spool cost × 1.25 waste allowance + print hours × $2.50 × material time factor) ÷ 0.65. Rounded up to the next $0.50.
Assumed spool costs per kg: PLA $25, PETG $30, ASA $40, ABS $30, TPU $45, Nylon $65, PA-CF $95. Time factors: PLA/PETG 1.0, ASA/ABS 1.2, TPU 1.6, Nylon 1.4, PA-CF 1.5. These are proposed shop rates, not measured production costs.
Design work, test fitting, hardware, shipping and tax are additional where needed. Multi-file sets may need several prints. Use actual sliced weight and time when available. Final pricing is confirmed in writing.
