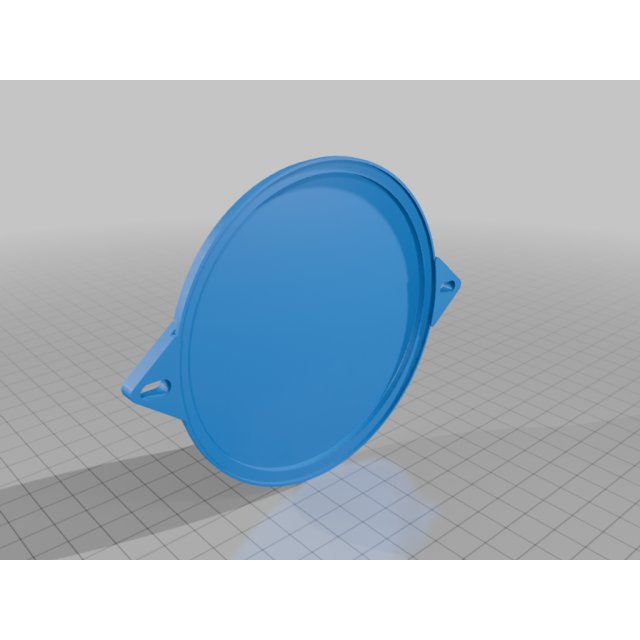

Designer source image. It may show an installed part, prototype or render; it is not an Orphaned Parts production sample.
Front Speaker Gasket
Front Speaker Gasket design listed for 1988–1991 Mitsubishi Montero. Listed category: interior. Verify dimensions, fitment and material suitability before printing.
- Make
- Mitsubishi
- Model
- Montero
- Year range
- 1988–1991
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description
Still disappointed with poor sound quality I investigated and found that the speaker cone was hitting the dash and creating distortion. I designed a gasket to sandwich between the speaker and dash and it has really improved the sound performance. Additionally it decreases speaker/dash vibrations and will also help visually conceal speakers with wacky colors that might not want to notice.
The speakers I am using are Rockford Fosgate R142 Prime Series 2 Way 4" 100 Watt, this gasket might also fit other 4" speakers brands. Early Gen1 trucks have a different shaped speaker so this will not work on those.
For a successful part you need to print with a TPU material within following settings:
Wall Loops: 9
Top Shell layers: 0
Bottom Shell Layers: 0
Sparse Infill Density: 45%
Sparse Infill Pattern: Honeycomb
Source description, under the recorded CC-BY-SA-4.0 license.
Print instructions
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
Settings from the source; not independently tested by Orphaned Parts.
Print price estimates
Planning prices for one print, not a final quote. Defaults use a size allowance inferred from the part name, not a measured or sliced model. Filament suitability must be confirmed.
| Filament | USD / print | Application notes |
|---|---|---|
| PLA | $28.50 | Indoor prototypes; not a default material for hot vehicle interiors. |
| PETG | $29.00 | General-purpose candidate; heat and creep need review. |
| ASA | $32.50 | Candidate for UV exposure; verify temperature and geometry. |
| ABS | $31.50 | Enclosed printing; review application and dimensions. |
| TPU | $37.50 | Flexible designs only; not a substitute for rigid materials. |
| Nylon | $37.50 | Moisture, tolerances and application require review. |
| PA-CF | $42.50 | Filled nylon; abrasive filament and fit need review. |
Pricing assumptions and exclusions
USD: ($6 setup + $3 finishing + filament weight × assumed spool cost × 1.25 waste allowance + print hours × $2.50 × material time factor) ÷ 0.65. Rounded up to the next $0.50.
Assumed spool costs per kg: PLA $25, PETG $30, ASA $40, ABS $30, TPU $45, Nylon $65, PA-CF $95. Time factors: PLA/PETG 1.0, ASA/ABS 1.2, TPU 1.6, Nylon 1.4, PA-CF 1.5. These are proposed shop rates, not measured production costs.
Design work, test fitting, hardware, shipping and tax are additional where needed. Multi-file sets may need several prints. Use actual sliced weight and time when available. Final pricing is confirmed in writing.
