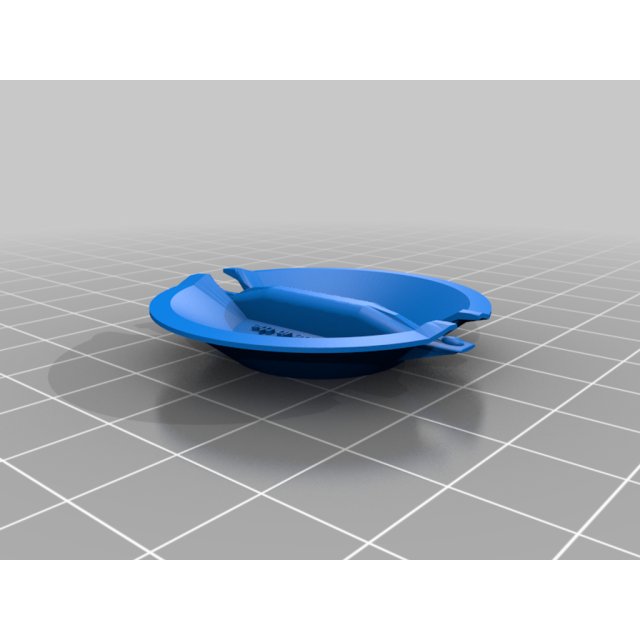

Designer source image. It may show an installed part, prototype or render; it is not an Orphaned Parts production sample.
Headlight Access Cover
Headlight Access Cover design listed for 2011–2021 Jeep Grand Cherokee. Listed category: lighting. Verify dimensions, fitment and material suitability before printing.
- Make
- Jeep
- Model
- Grand Cherokee
- Year range
- 2011–2021
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description
I heard that these are discontinued from Mopar, so I thought I'd put this model up for anyone that needs a replacement. I've used them for a couple months now with no issue. I don't really know what these are actually called, so if you know, let me know, and I'll post the name so that more people can find it.
Make sure that the diameter is about 145mm, that size fits perfectly on my 2014 WK2. You shouldn't need any supports but they can be added around the outside pretty easily. I printed this on an AnyCubic Kobra Max in matte black, but maybe you can print to match your body color.
These are the general settings I used, and it comes out a little heavier than the stock piece, I compared it to the one I had left, if you care about that you can reduce the infill.
Layer Height: 0.2mm
Number of walls: 6
Infill: 20%
Diameter of model: 145mm
I used a Skirt for Build Plate Adhesion, but if you're having trouble use a Brim, it won't affect the overall print.
I did not use supports and it still printed very well.
Source description, under the recorded CC-BY-SA-4.0 license.
Print instructions
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
Settings from the source; not independently tested by Orphaned Parts.
Print price estimates
Planning prices for one print, not a final quote. Defaults use a size allowance inferred from the part name, not a measured or sliced model. Filament suitability must be confirmed.
| Filament | USD / print | Application notes |
|---|---|---|
| PLA | $28.50 | Indoor prototypes; not a default material for hot vehicle interiors. |
| PETG | $29.00 | General-purpose candidate; heat and creep need review. |
| ASA | $32.50 | Candidate for UV exposure; verify temperature and geometry. |
| ABS | $31.50 | Enclosed printing; review application and dimensions. |
| TPU | $37.50 | Flexible designs only; not a substitute for rigid materials. |
| Nylon | $37.50 | Moisture, tolerances and application require review. |
| PA-CF | $42.50 | Filled nylon; abrasive filament and fit need review. |
Pricing assumptions and exclusions
USD: ($6 setup + $3 finishing + filament weight × assumed spool cost × 1.25 waste allowance + print hours × $2.50 × material time factor) ÷ 0.65. Rounded up to the next $0.50.
Assumed spool costs per kg: PLA $25, PETG $30, ASA $40, ABS $30, TPU $45, Nylon $65, PA-CF $95. Time factors: PLA/PETG 1.0, ASA/ABS 1.2, TPU 1.6, Nylon 1.4, PA-CF 1.5. These are proposed shop rates, not measured production costs.
Design work, test fitting, hardware, shipping and tax are additional where needed. Multi-file sets may need several prints. Use actual sliced weight and time when available. Final pricing is confirmed in writing.
