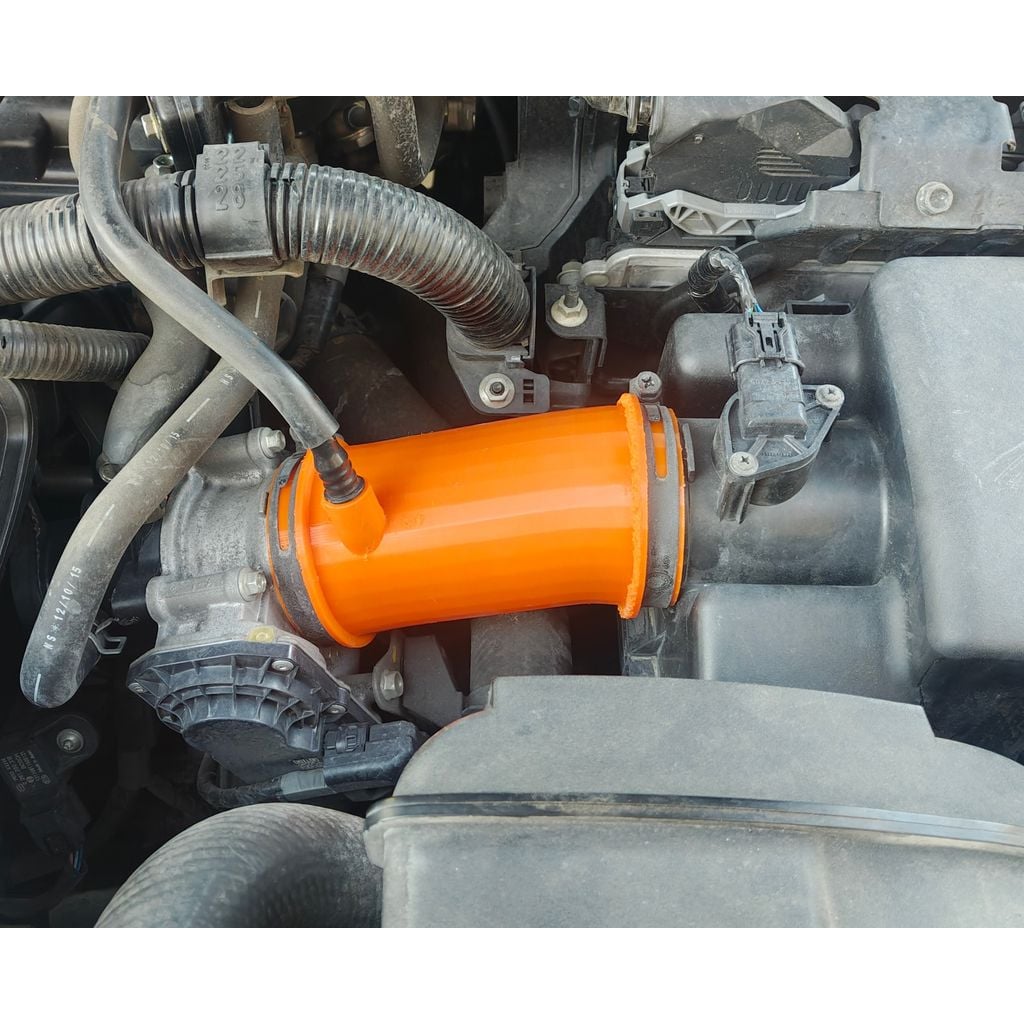

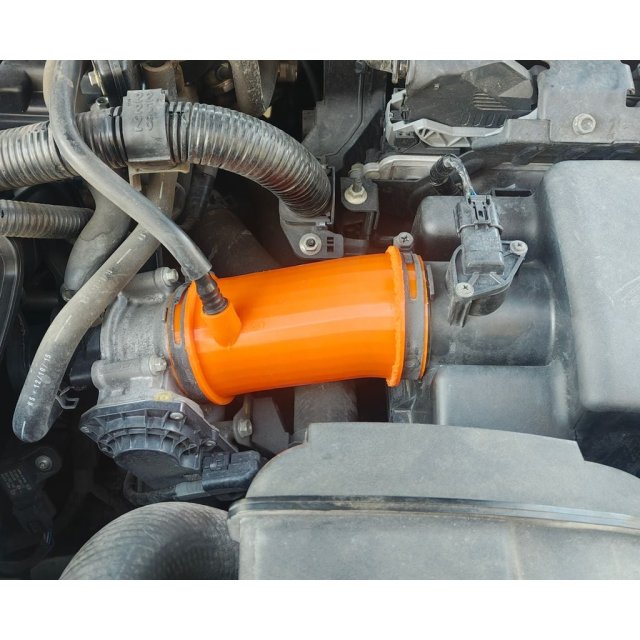

Designer source image. It may show an installed part, prototype or render; it is not an Orphaned Parts production sample.
Intake Tube
Intake Tube design listed for 2013–2016 Mazda CX-5 / Mazda 3. Listed category: engine. Verify dimensions, fitment and material suitability before printing.
- Make
- Mazda
- Model
- CX-5 / Mazda 3
- Year range
- 2013–2016
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
This listing is not offered for sale. Commercial permission or application suitability needs review.
Description
Print in TPU of your choice, I just happened to have orange on hand for this. I recommend printing this vertical, with the long side facing down to minimize supports needed, as TPU supports are notoriously difficult to remove.
Check your local emissions laws to see if this passes scrutiny. For legality purposes: this is for off-road applications only. Use at your own risk.
Source description, under the recorded CC-BY-SA-4.0 license.
Print instructions
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
Settings from the source; not independently tested by Orphaned Parts.
