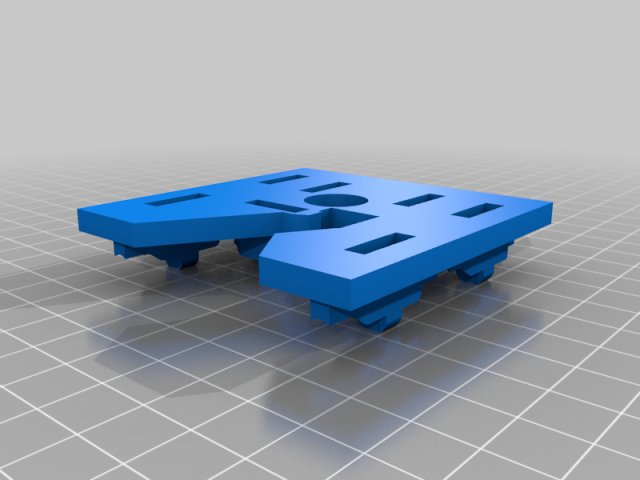

Mini ATX Fuse Adapter
Mini ATX Fuse Adapter design listed for 1969 Ford Mustang. Listed category: electrical. Verify dimensions, fitment and material suitability before printing.
- Make
- Ford
- Model
- Mustang
- Year range
- 1969
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description
Fuse holder/adapter based off https://www.thingiverse.com/thing:1893269
<B>Mini ATX Adapter for our 69 Mustang buss fuse panels.</B>
<font color="red"><I>This requires cutting the brass bar into sections, beveling out the edge, and soldering connectors to it</I></font>
1) - ACC Type - For adding the Accessory wire where a fuse isn't present
2) - FULL - Where the fuse is present and has the screw connector
3) - ACC-Bolt - Allows you to add a small bolt to connect to the ACC Accessory instead of using a wire lead
<B>Configuration Types: </B>
1) - Bolt-On Requires removal of the unit and to put the bolt through. Does eliminate the ability to use the push on washer that holds it to the Wiring harness. Only matters for removal really
2) - Push-ON....The center hole will push around the bolt and is held in by the bus fuse holders.
Contacts:
http://www.digikey.com/product-detail/en/keystone-electronics/3557/36-3557-ND/2092485
Brass Bar:
https://www.amazon.com/gp/product/B0748DQ1MP
Source description, under the recorded CC-BY-4.0 license.
Print instructions
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
Settings from the source; not independently tested by Orphaned Parts.
