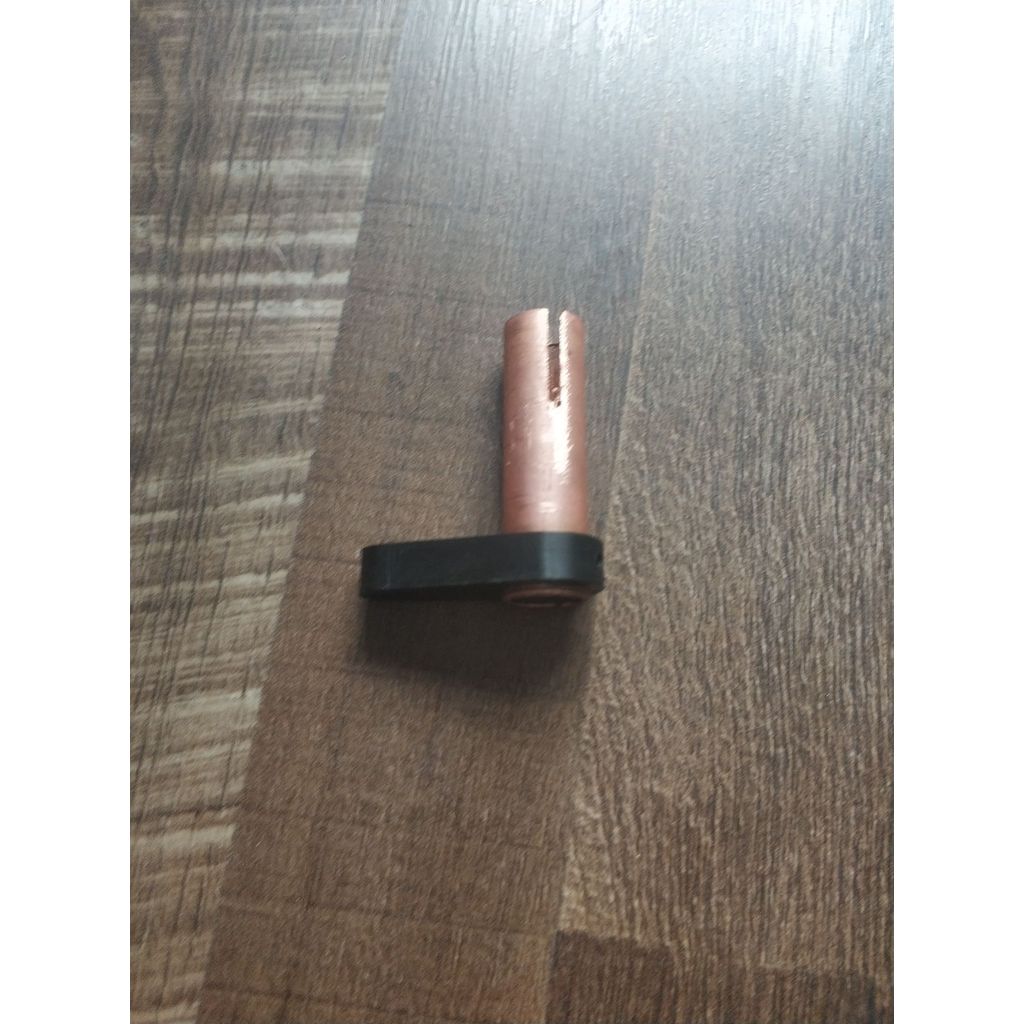

Designer source image. It may show an installed part, prototype or render; it is not an Orphaned Parts production sample.
HVAC A C blend flap arm and shaft
HVAC A C blend flap arm and shaft design listed for 1997–2012 Saab 9-5. Listed category: interior. Verify dimensions, fitment and material suitability before printing.
- Make
- Saab
- Model
- 9-5
- Year range
- 1997–2012
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description
Designed to pair with a 15mm diameter x 50mm copper pipe section as a reinforced shaft core for superior strength over original plastic.
Secure assembly with M3 screw ensures reliable operation without replacing the entire HVAC module, saving time and cost for Saab owners.
Simple print-and-install solution for DIY mechanics tackling blend door issues in 1998-2010 Saab 9-5 models.
Print in strong filament like PETG or ABS at 0.2mm layer height, 20-30% infill; no supports needed. Test fit before final install. Perfect for restoring full temperature control!
Source description, under the recorded CC-BY-4.0 license.
