Design by raylo32 · Original design · CC-BY-4.0 · Source details. Indexed via 3DCarParts. Source text and images remain credited to their creators; no modified design files supplied.

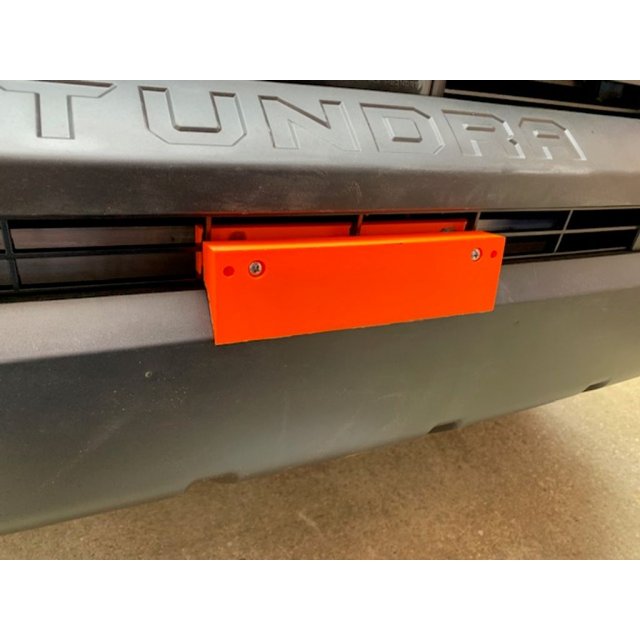

Designer source image. It may show an installed part, prototype or render; it is not an Orphaned Parts production sample.
Front License Plate Bracket
Front License Plate Bracket design listed for 2022 Toyota Tundra. Listed category: exterior. Verify dimensions, fitment and material suitability before printing.
- Make
- Toyota
- Model
- Tundra
- Year range
- 2022
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description
Print both parts, using high infill on the backer part, insert 10-24 nylon lock nuts into the premade sockets. They should press in fairly snugly but add a drop of glue to secure them. Before installing, run the screws in and out once to clean out any wayward glue. Slide the backer piece into a slit in the lower grille and work it around so that it faces forward. Use the wire bundles to help keep it from falling as you work it into position. Take two 10-24 x 2" screws and fasten the main bracket to the backer. Then take two 10-24 x 1 1/4" or 1 1/2" screws and fasten the plate (with or without a frame) to the main bracket. Print a couple of the washers if you want.
Before you start the installation, you can glue on a piece of foam, rubber, cloth or whatever to the back of the main mount where it will contact the bumper to protect it. My original bracket used a piece of thin foam packing material as in the photo. My final bracket used a piece of adhesive backed silicone rubber I got from Amazon: https://www.amazon.com/dp/B07GL9MHW7?psc=1&ref=ppx_yo2ov_dt_b_product_details
Best to use stainless steel hardware to keep the parts from rusting. M5 hardware might also fit but I didn't test it.
Source description, under the recorded CC-BY-4.0 license.
Print instructions
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
Settings from the source; not independently tested by Orphaned Parts.
Print price estimates
Planning prices for one print, not a final quote. Defaults use a size allowance inferred from the part name, not a measured or sliced model. Filament suitability must be confirmed.
| Filament | USD / print | Application notes |
|---|---|---|
| PLA | $28.50 | Indoor prototypes; not a default material for hot vehicle interiors. |
| PETG | $29.00 | General-purpose candidate; heat and creep need review. |
| ASA | $32.50 | Candidate for UV exposure; verify temperature and geometry. |
| ABS | $31.50 | Enclosed printing; review application and dimensions. |
| TPU | $37.50 | Flexible designs only; not a substitute for rigid materials. |
| Nylon | $37.50 | Moisture, tolerances and application require review. |
| PA-CF | $42.50 | Filled nylon; abrasive filament and fit need review. |
Pricing assumptions and exclusions
USD: ($6 setup + $3 finishing + filament weight × assumed spool cost × 1.25 waste allowance + print hours × $2.50 × material time factor) ÷ 0.65. Rounded up to the next $0.50.
Assumed spool costs per kg: PLA $25, PETG $30, ASA $40, ABS $30, TPU $45, Nylon $65, PA-CF $95. Time factors: PLA/PETG 1.0, ASA/ABS 1.2, TPU 1.6, Nylon 1.4, PA-CF 1.5. These are proposed shop rates, not measured production costs.
Design work, test fitting, hardware, shipping and tax are additional where needed. Multi-file sets may need several prints. Use actual sliced weight and time when available. Final pricing is confirmed in writing.
