Armrest Center Console Latch
Armrest Center Console Latch design listed for 1996 Ford Ranger. Listed category: interior. Verify dimensions, fitment and material suitability before printing.
- Make
- Ford
- Model
- Ranger
- Year range
- 1996
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description

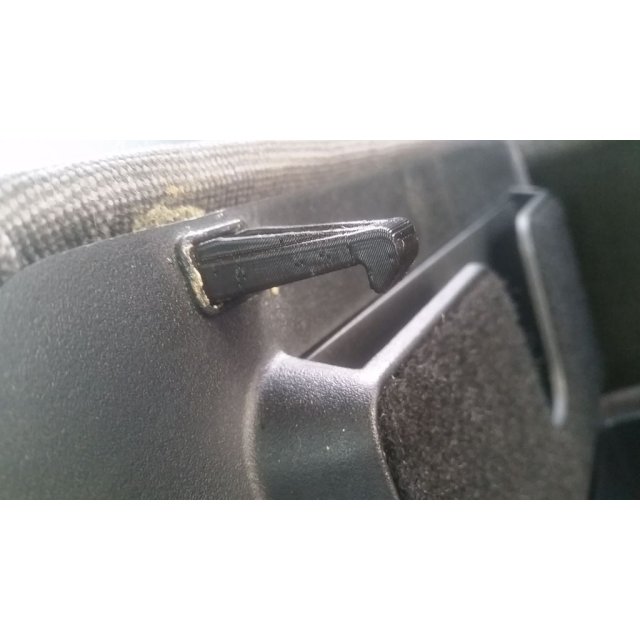

This is a second revision due to the original one I made bending with the summer heat, printed in PLA. I added some ribs to add a backbone and some added strength. The ribs were a little tall so I shaved it down with a razorblade to get a nice tight fit when closed. You may or may not need to do the same to ensure proper fitment.
I did not find it necessary to use glue of any sort, just disassemble your armrest cover (the screws are hidden below the fabric on the inside) and slip this into the existing hole.
As always, if you make one, all I ask is that you please share a photo or at least comment on how it worked for you!
Source description, under the recorded CC-BY-4.0 license.
Print instructions
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
Settings from the source; not independently tested by Orphaned Parts.
