Dome Map Light Clip
Dome Map Light Clip design listed for 1998–2006 Audi TT. Listed category: interior. Verify dimensions, fitment and material suitability before printing.
- Make
- Audi
- Model
- TT
- Year range
- 1998–2006
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description
The dome light in my 2001 Audi TT has been broken for some time. The plastic clips which hold it in place broke off before I had it and the map light assembly would kinda flop around in the headliner. The lens had one of its plastic mounting tabs broken but the other was intact so I lived with it.
While cleaning it a few days back, I broke the other clip on the lens. It will no longer stay on the roof. Gravity takes hold. A new light, if you can find one, runs about $180 from Audi. No thank you. So I designed a couple of little clips that are glued to the lens and to the dome light assembly which replace the original design and hold everything in place like it should be.

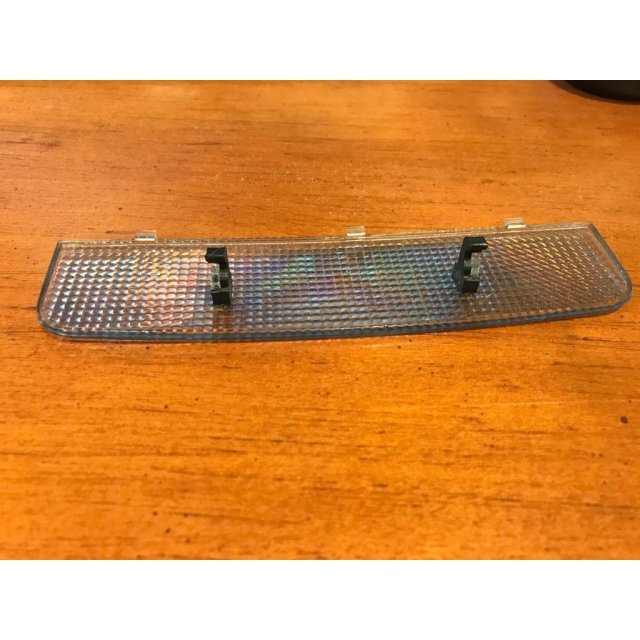

I've included three files. One is for the little l-shaped clips which hold the dome light assembly. These glue into the channels in the light housing where the old clips were before they broke off. Hopefully you can see that in the photos. The other two files are for clips which are glued to the remaining stub on the lens. There is one for the left and one for the right; they are mirror images.
These are really easy to print. Lay them flat on your build plate and print using ABS. PLA will melt in the sun and fail. Lightly sand the surfaces and apply some epoxy to glue in place. Clamp with clothes pins. Enjoy the fact that a few minutes worth of time saved you $180.
Source description, under the recorded CC-BY-4.0 license.
Print instructions
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
Settings from the source; not independently tested by Orphaned Parts.
Print price estimates
Planning prices for one print, not a final quote. Defaults use a size allowance inferred from the part name, not a measured or sliced model. Filament suitability must be confirmed.
| Filament | USD / print | Application notes |
|---|---|---|
| PLA | $17.50 | Indoor prototypes; not a default material for hot vehicle interiors. |
| PETG | $18.00 | General-purpose candidate; heat and creep need review. |
| ASA | $18.50 | Candidate for UV exposure; verify temperature and geometry. |
| ABS | $18.50 | Enclosed printing; review application and dimensions. |
| TPU | $20.00 | Flexible designs only; not a substitute for rigid materials. |
| Nylon | $20.00 | Moisture, tolerances and application require review. |
| PA-CF | $21.00 | Filled nylon; abrasive filament and fit need review. |
Pricing assumptions and exclusions
USD: ($6 setup + $3 finishing + filament weight × assumed spool cost × 1.25 waste allowance + print hours × $2.50 × material time factor) ÷ 0.65. Rounded up to the next $0.50.
Assumed spool costs per kg: PLA $25, PETG $30, ASA $40, ABS $30, TPU $45, Nylon $65, PA-CF $95. Time factors: PLA/PETG 1.0, ASA/ABS 1.2, TPU 1.6, Nylon 1.4, PA-CF 1.5. These are proposed shop rates, not measured production costs.
Design work, test fitting, hardware, shipping and tax are additional where needed. Multi-file sets may need several prints. Use actual sliced weight and time when available. Final pricing is confirmed in writing.
