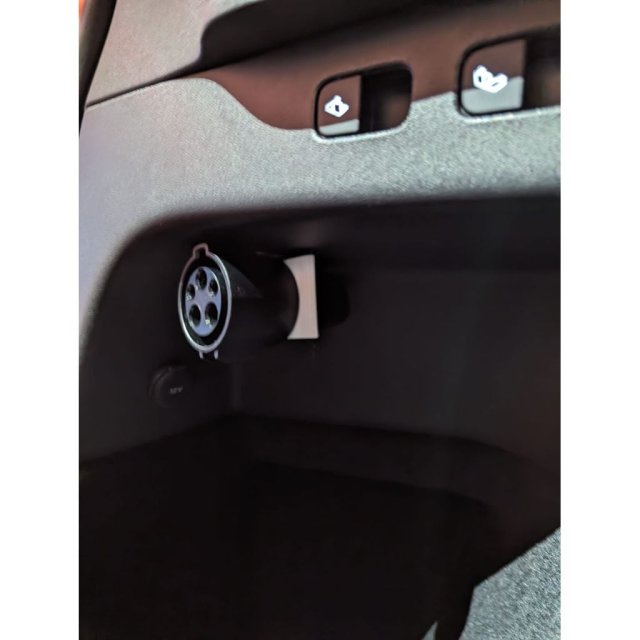

Designer source image. It may show an installed part, prototype or render; it is not an Orphaned Parts production sample.
J1772 Adapter Trunk Holder
J1772 Adapter Trunk Holder design listed for 2023 Tesla Model Y. Listed category: mounts-brackets. Verify dimensions, fitment and material suitability before printing.
- Make
- Tesla
- Model
- Model Y
- Year range
- 2023
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description
Installation Instructions:
Insert the top triangle section into the Triangle cut out (Charger Emergency Release) on the left side.
Turn/twist the holder to have the flat surface face out and the holder should snug in place and won't fall out.
Removal Instructions:
Turn/twist the holder to align the cut out triangle hole with the holder.
Slowly tilt and slide the holder out.
Recommendation :
1. Use support for the small triangle.
2. Print in PETG if possible especially in regions with high temperature.
3. Apply small tape to the top of the lager triangle to prevent plastic to plastic contact and possible scratches. I used FlexTape but Electrical tape should work (refer to third image)
4. Attached a second file with lager gap between the two triangles.
Source description, under the recorded CC-BY-SA-4.0 license.
Print instructions
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
Settings from the source; not independently tested by Orphaned Parts.
Print price estimates
Planning prices for one print, not a final quote. Defaults use a size allowance inferred from the part name, not a measured or sliced model. Filament suitability must be confirmed.
| Filament | USD / print | Application notes |
|---|---|---|
| PLA | $42.50 | Indoor prototypes; not a default material for hot vehicle interiors. |
| PETG | $43.50 | General-purpose candidate; heat and creep need review. |
| ASA | $50.00 | Candidate for UV exposure; verify temperature and geometry. |
| ABS | $48.00 | Enclosed printing; review application and dimensions. |
| TPU | $60.50 | Flexible designs only; not a substitute for rigid materials. |
| Nylon | $60.00 | Moisture, tolerances and application require review. |
| PA-CF | $69.00 | Filled nylon; abrasive filament and fit need review. |
Pricing assumptions and exclusions
USD: ($6 setup + $3 finishing + filament weight × assumed spool cost × 1.25 waste allowance + print hours × $2.50 × material time factor) ÷ 0.65. Rounded up to the next $0.50.
Assumed spool costs per kg: PLA $25, PETG $30, ASA $40, ABS $30, TPU $45, Nylon $65, PA-CF $95. Time factors: PLA/PETG 1.0, ASA/ABS 1.2, TPU 1.6, Nylon 1.4, PA-CF 1.5. These are proposed shop rates, not measured production costs.
Design work, test fitting, hardware, shipping and tax are additional where needed. Multi-file sets may need several prints. Use actual sliced weight and time when available. Final pricing is confirmed in writing.
